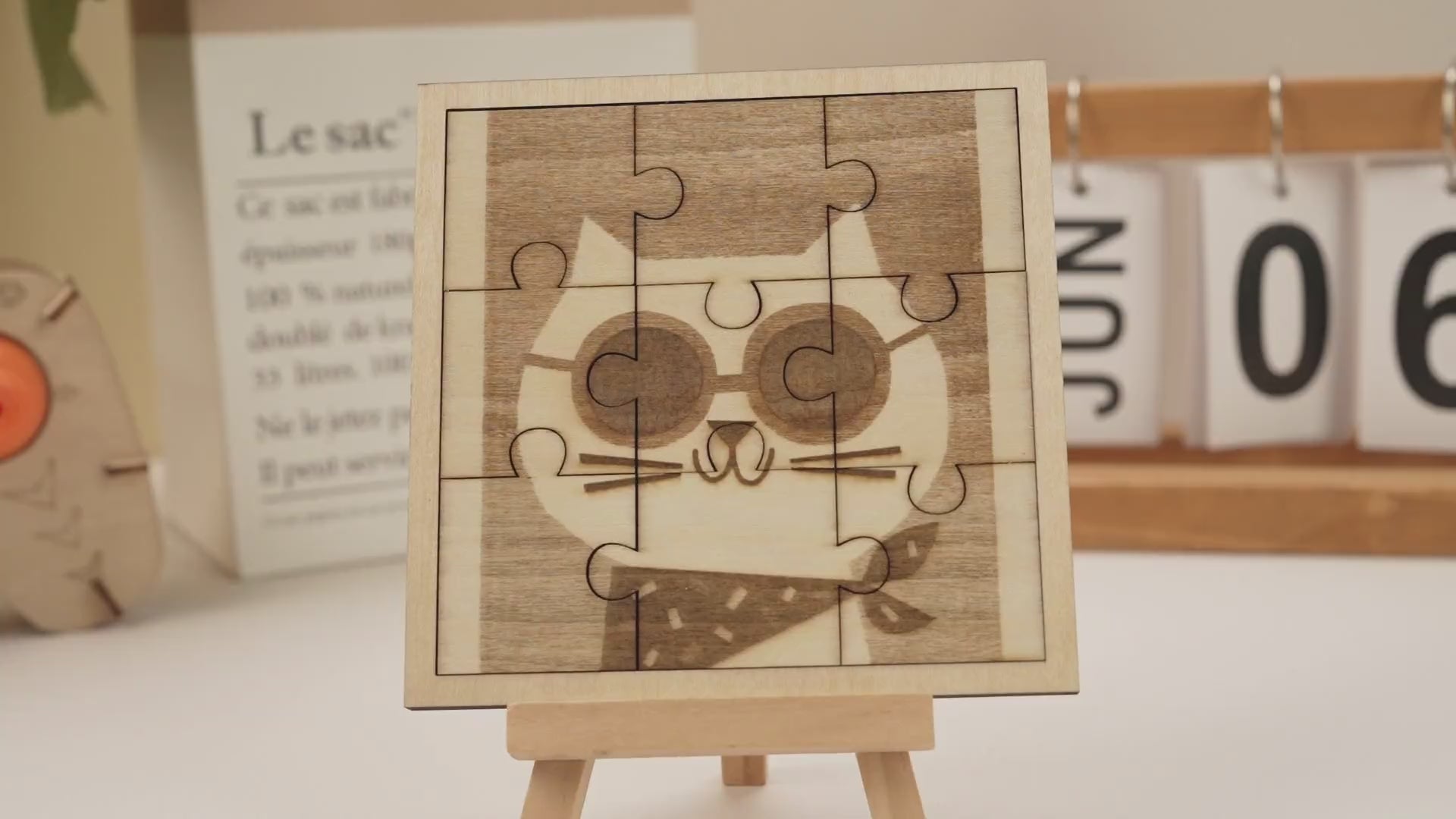

Laser Engraving and Cutting Cat Jigsaw Puzzle

Materials Needed

Machine Used

Laser Cutting

Line 1/Speed 1

260mm/min

Power

100%

Pass

1

Laser Engraving

Line 1/Speed 1

4000mm/min

Power

100%

Pass

1

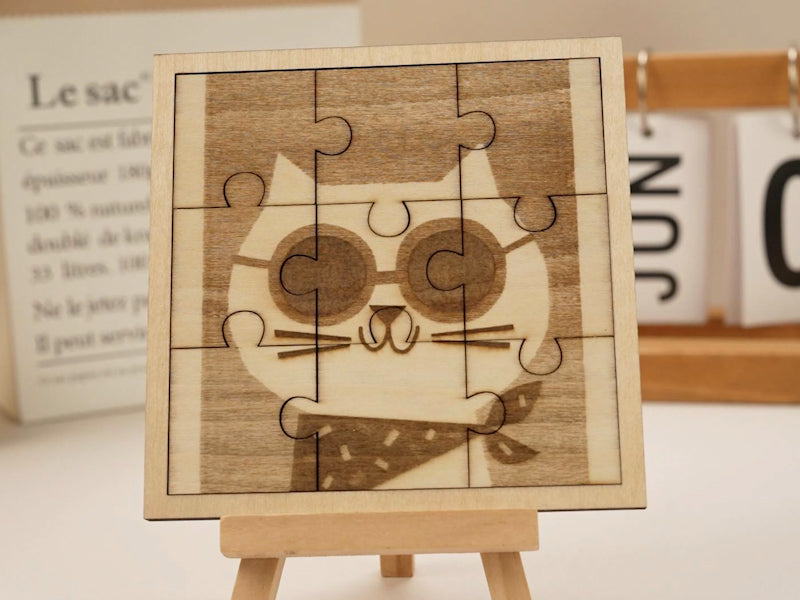

  • How to Laser Engrave and Cut a Cat Jigsaw Puzzle: A Step-by-Step DIY Guide

Laser engraving technology has opened the door to an entire world of creative possibilities, and among the most delightful projects you can undertake is a custom cat-shaped jigsaw puzzle. Whether you're making a unique gift for a feline-loving friend or selling handcrafted puzzles online, this project is equal parts fun and professional.

In this tutorial, we’ll walk through how to laser engrave and cut a cat jigsaw puzzle using the AlgoLaser DIY Kit MK2 10W laser engraver, using 3mm plywood. With the right settings and a little creativity, you’ll be surprised at how easy it is to turn an ordinary piece of wood into a work of puzzle art.

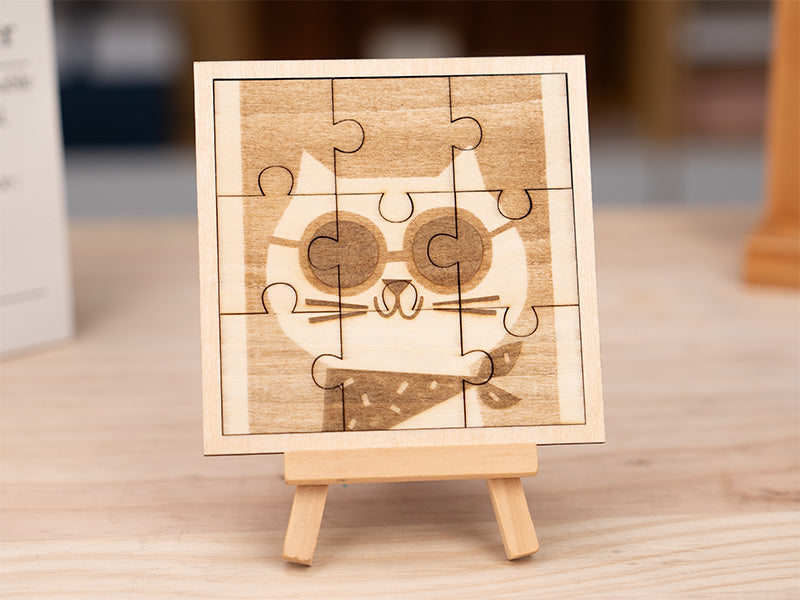

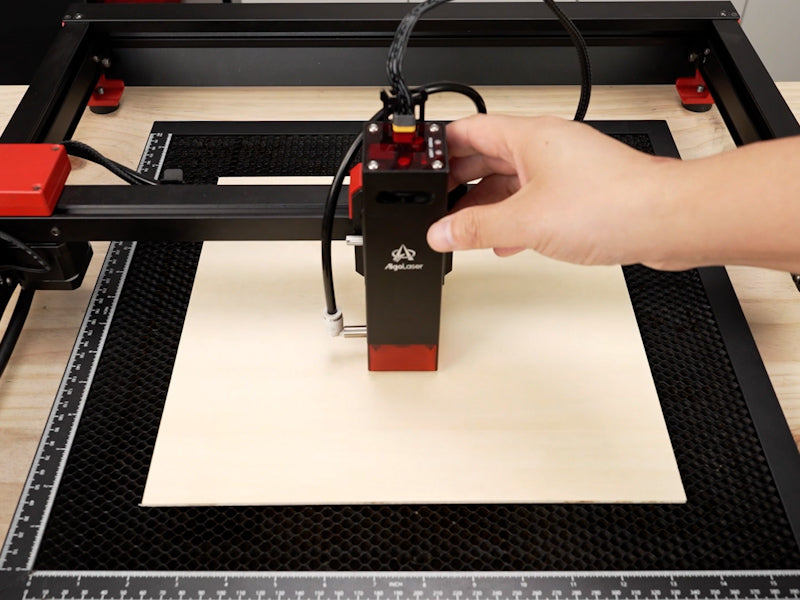

Step 1: Place the Plywood in the Engraving Area

Before you fire up your laser engraver, the first thing to do is prepare your material. For this project, we're using 3mm plywood, which is lightweight, sturdy, and has the perfect balance of flexibility and durability for a puzzle.

1. Clean your workspace. Remove any leftover dust or materials from previous projects. Clean 2. surfaces will lead to cleaner cuts.

2. Secure the plywood. Position the sheet firmly inside the engraving area of the AlgoLaser DIY Kit MK2. Make sure the plywood is flat, without any warps or bends, to ensure uniform cutting depth.

3. Use clamps or magnetic hold-downs if available, especially if your workspace tends to vibrate.

Proper placement ensures accuracy later when the puzzle is being cut and engraved.

Step 2: Adjust the Focal Length of the Laser Module

Getting the right focus is everything in laser engraving. Poor focus can result in blurry lines, uneven burn depths, or failed cuts. The AlgoLaser DIY Kit MK2 makes this process pretty intuitive.

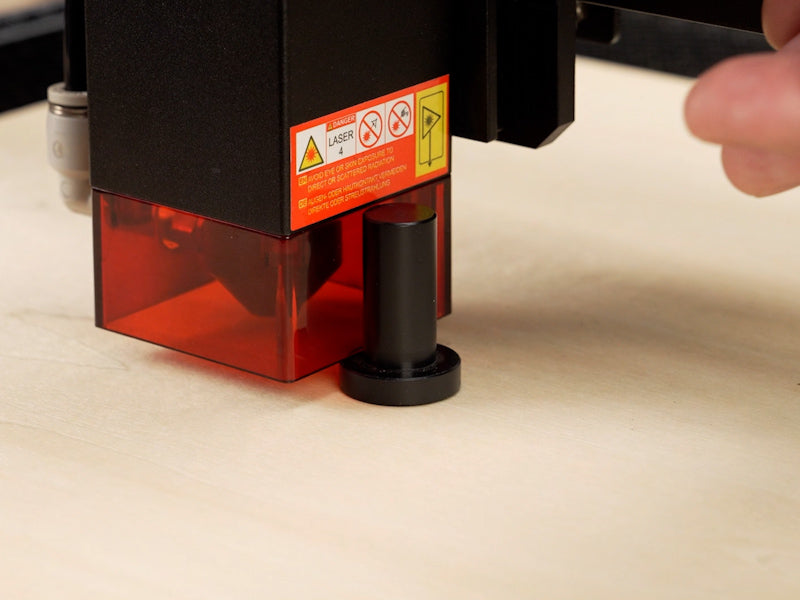

1. Use the focal gauge provided with your machine. Place the gauge between the laser module and the plywood.

2. Lower the laser module until it just touches the gauge.

3. Tighten the height adjustment knob to lock in the focal length.

4. Gently remove the gauge, ensuring the laser module doesn’t shift.

When working with a diode laser engraver, this adjustment ensures that both engraving and cutting achieve high precision and depth.

Step 3: Design Your Puzzle – “Puzzle” Mode Setup

Now comes the fun part—designing your jigsaw puzzle.

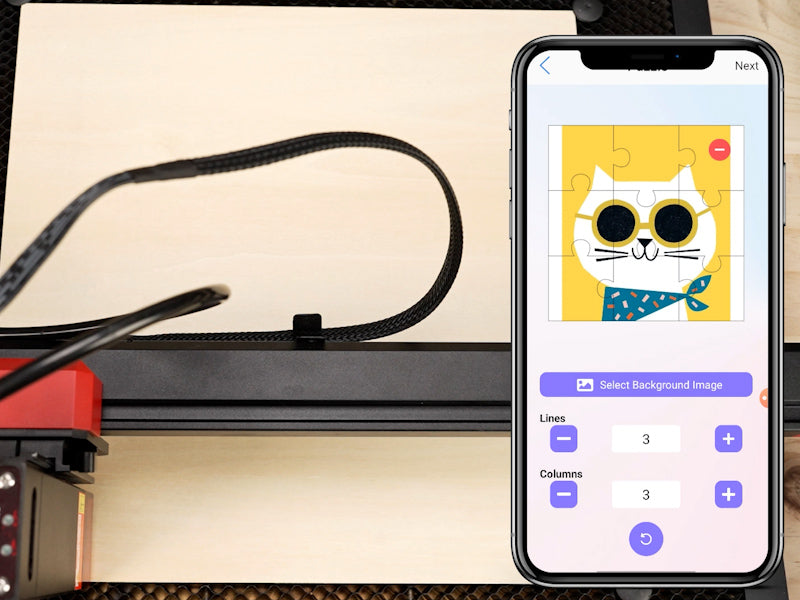

1. On your touchscreen, tap on the option labeled “Puzzle.” This built-in feature allows you to define the number of pieces your jigsaw will have.

2. Set the number of lines and columns. For instance, if you want a 6x6 puzzle, enter 6 lines and 6 columns. This determines how many horizontal and vertical cuts will be made.

3. Choose a background image. Here’s where your creativity takes over! Select a cat photo that’s cute, artistic, or even a cartoon-style image. The higher the contrast and resolution, the better the result.

4. Tap “Next.” This will take you to the settings page where we’ll configure image positioning and laser parameters.

Puzzle mode is one of the most exciting built-in features of modern laser engravers like the DIY Kit MK2—it turns image-based projects into interactive keepsakes.

Step 4: Configure Size, Position, and Engraving Parameters

Now it's time to fine-tune the artwork and adjust engraving/cutting settings. The more detail you apply here, the better your final product will look.

1. Resize the image to fit within the puzzle grid. Make sure the cat image spans the entire puzzle area to ensure every piece is unique and part of the overall picture.

2. Use the drag-and-drop interface to position the image. Center it or move it slightly to focus on a specific area—like your cat’s adorable face.

3. Tap on “Configure” to enter the engraving and cutting parameters.



Engraving Parameters:

· Mode: Line 1 / Speed 1

· Speed: 4000 mm/min

· Power: 100%

· Passes: 1



Cutting Parameters:

· Mode: Line 1 / Speed 1

· Speed: 260 mm/min

· Power: 100%

· Passes: 1



Once everything is set, return to the Preview page. It’s a great idea to zoom in and double-check the cuts and engraving layout.

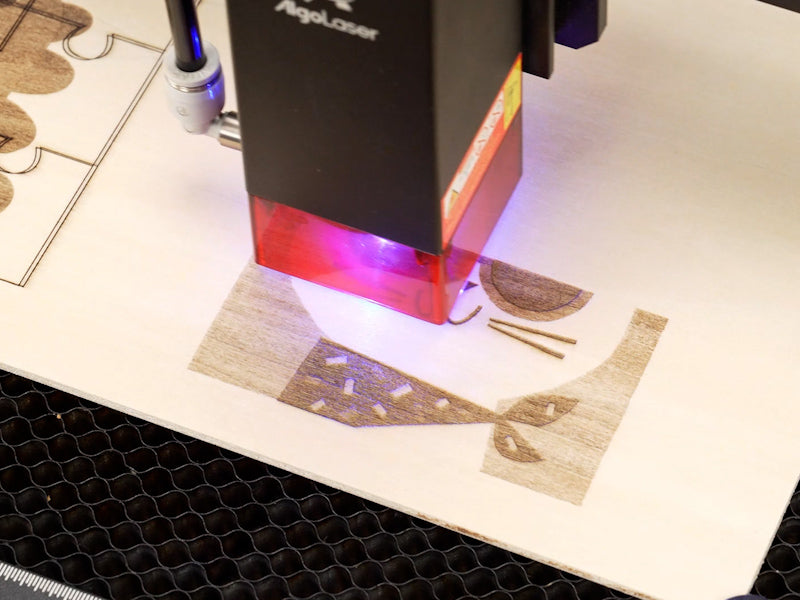

Step 5: Start the Engraving and Cutting Process

With everything in place, you’re now ready to bring your cat puzzle to life.

1. Tap “Start” → “Checked” → “Start.” This initiates the file uploading process.

2. Wait a moment for the laser engraver to process and upload the file.

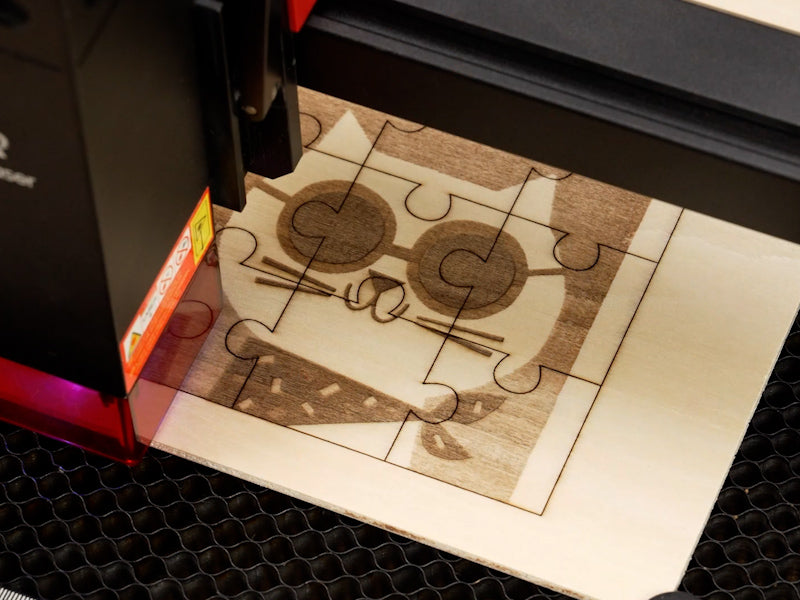

3. Once complete, tap “Run.” The machine will begin engraving the background image first, followed by the precise cutting of the jigsaw shapes.

The entire process might take anywhere from 15 to 30 minutes, depending on the complexity of the image and number of puzzle pieces.

As it runs:

· Keep a close watch for any issues like smoke buildup or material shifting.

· Ensure your air assist system (if available) is on, which helps keep burns clean.

· Make sure ventilation is running to keep fumes at bay.

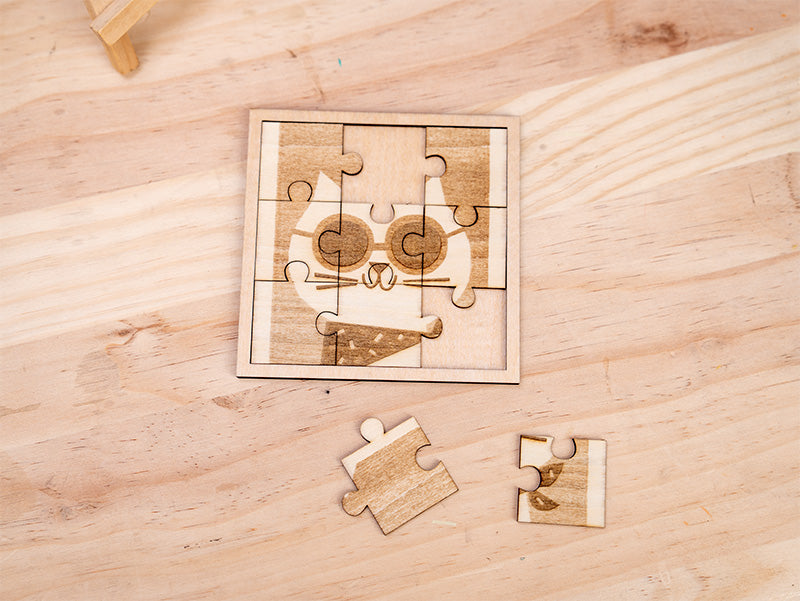

Once finished, allow the machine to cool down before removing the pieces. Gently pop out each puzzle piece and admire your finished work—a custom cat jigsaw puzzle with both visual and tactile charm.

Final Tips for Finishing

After engraving and cutting, you can choose to:

· Lightly sand the edges to remove any minor burn marks.

· Apply a wood sealant or lacquer for a glossier, durable finish.

· Store it in a wooden box or gift it in a custom envelope.

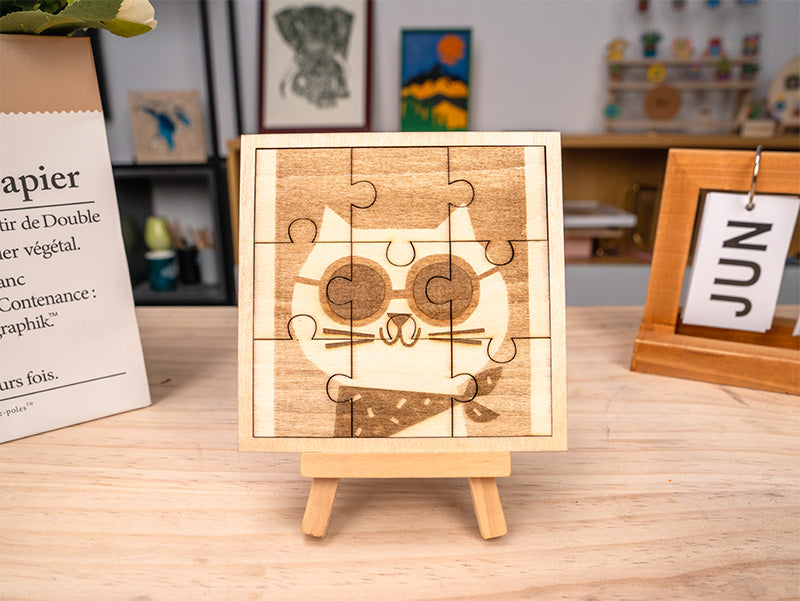

With a little creativity, your laser-engraved puzzle becomes a unique treasure.

FAQs About Laser Engraving Cat Puzzles

Q1: Do I need any design software to create the puzzle pieces?
Nope, not at all! One of the best things about the AlgoLaser DIY Kit MK2 is that it comes with a “Puzzle” mode right on the touchscreen. Just enter the number of rows and columns and the machine generates the puzzle layout for you.

Q2: What kind of image works best for a puzzle like this?
A clean, high-resolution photo of your cat works great—especially ones with high contrast and vivid colors. Try to avoid blurry or low-light pictures. Even vector illustrations of cats look fantastic once engraved.

Q3: Can I make puzzles from other materials besides plywood?
Sure thing! While we used 3mm plywood for this guide, you can try MDF, basswood, or even acrylic if your laser engraver supports it. Just remember to adjust the focus and cutting speed for different materials.

Q4: What’s the difference between cutting and engraving in this project?

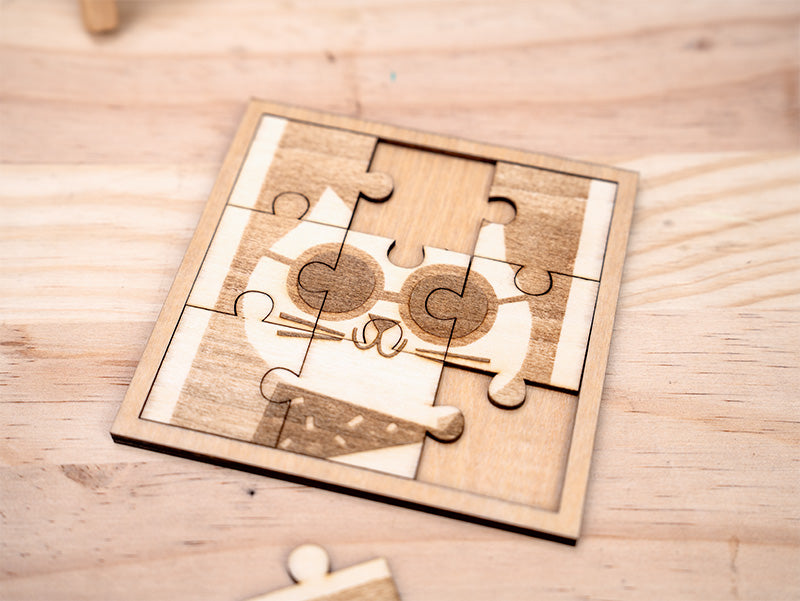

Good question. Engraving burns the image onto the surface of the puzzle, while cutting slices the jigsaw shapes all the way through the material. We engrave the cat image first, then cut the puzzle lines afterward.

Q5: Is a 10W laser powerful enough for this kind of work?
Absolutely. The AlgoLaser DIY Kit MK2 10W laser engraver handles 3mm plywood without any trouble. Just make sure your focus is tight, and your settings are correct (260mm/min for cutting, 4000mm/min for engraving).

Q6: Can kids play with these puzzles?
Yes—just be sure to smooth any rough edges after cutting. A quick sanding with 320-grit paper can make each piece safe for little hands. And since you control the image and puzzle size, you can make puzzles suitable for all ages.

Conclusion

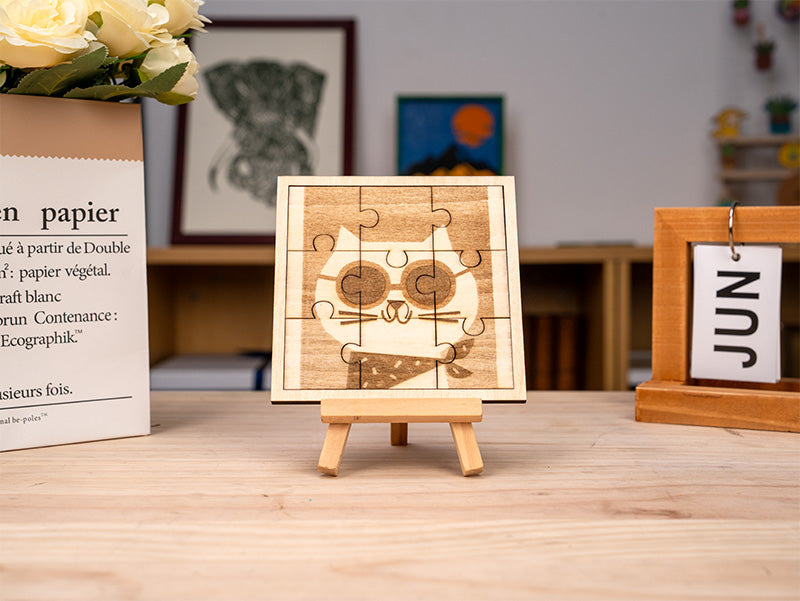

Creating a custom cat jigsaw puzzle with laser engravers like the AlgoLaser DIY Kit MK2 is both easy and rewarding. From selecting your favorite feline photo to watching the laser bring it to life, each step offers hands-on satisfaction and a creative payoff.

And with the ability to replicate, customize, and gift your puzzles, this project is more than just a one-off. It’s a fun business idea, a family memory, or a rainy-day hobby that blends technology with art.
