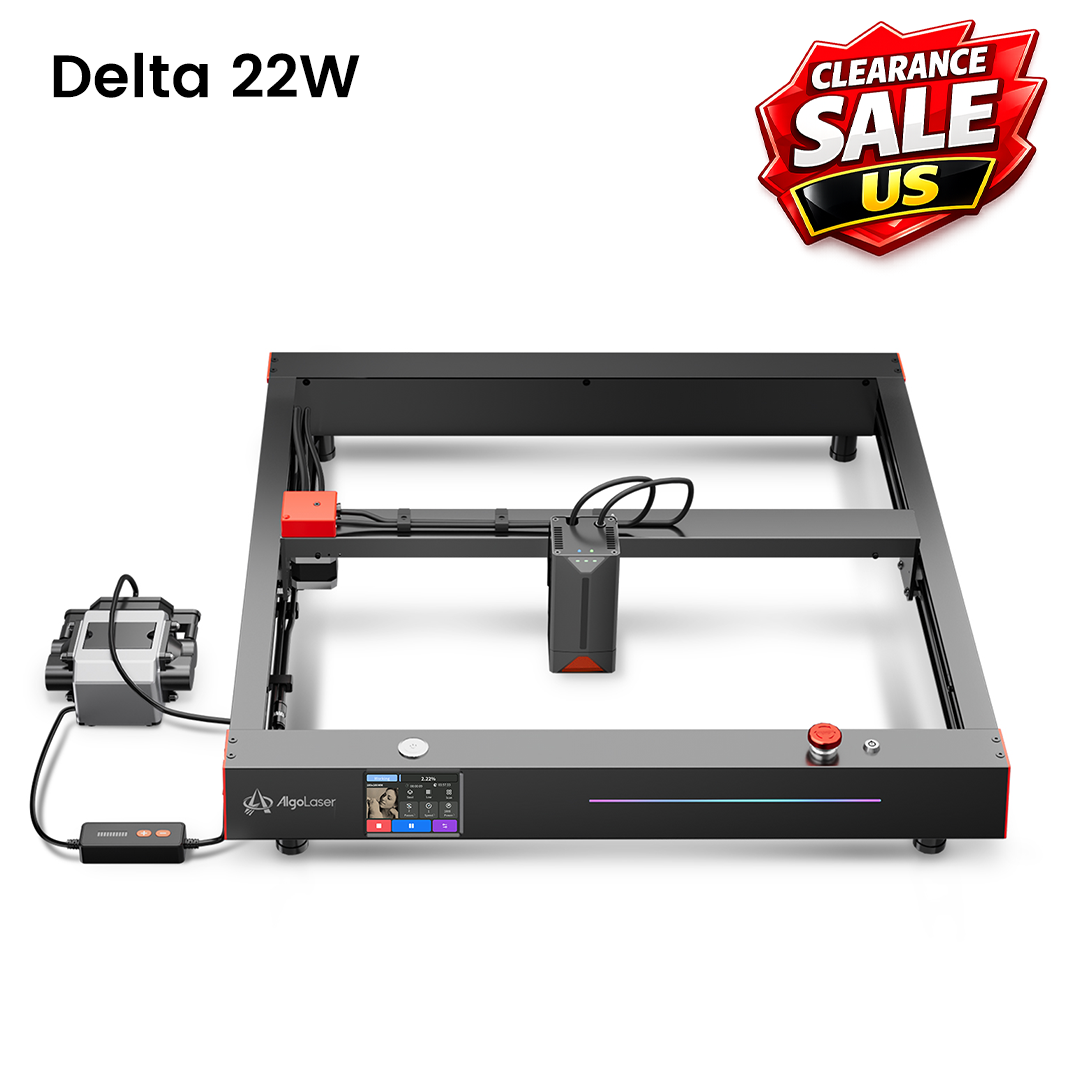

AlgoLaser Delta 22W Diode Laser EngraverAlgolaser Delta 22W Diode Laser Engraver
$1,299.00$799.00
22W40W
USEUUKAU

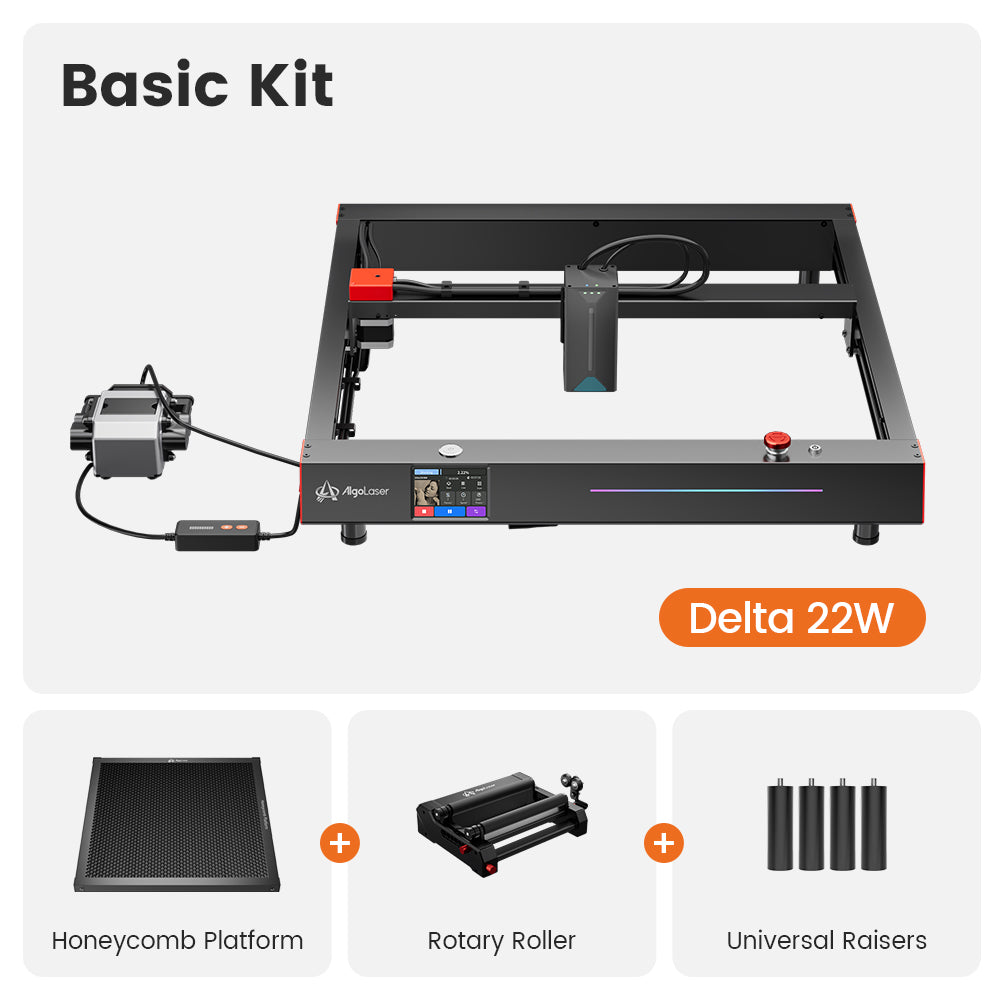

MachineBasic KitPro KitSafe Kit
  • Local warehouse Free Delivery

    Free delivery and returns

  • After-Sale Service

    Lifetime Tech Support

  • Worry-Free Trial

    30-Day easy returns

  • Warranty

    1-Year warranty policy

Super Easy To Use

The World's First Smart Laser Engraver

World's First Smart Laser Engraving Machine

Super Easy to Use

Instant Image Engraving

Offline Batch Cutting



The 2nd COS Optical Technology

Adopting the advanced second-generation COS technology, the polarized beam combination improves the performance of the laser beam by 40%. Compared to regular 20W laser modules, COS technology compresses the laser spots from a rectangle to a square having a near 1:1 ratio on both low (3%) and high power (100%).


Artwork with 500+ Shades of Color

Make your projects stand out with vibrant and durable colors.

Laser Engraver Artwork with 500+ Shades of Color

Incredible Cutting Ability

Super powerful 22W laser module handles various material thicknesses for cutting easily.

22W laser module handles various material thicknesses for cutting

Faster Engraving Speed 500mm/s!

12X faster! Allowing you to complete projects in record time without sacrificing quality.

Faster Engraving Speed


Powerful Motherboard, Self-Developed Firmware

Unparalleled Accuracy Achieved

Laser Engraver Module

Magnetic and Detachable Laser Metal Cover

It's easy to clean and allows you to utlize a deeper cutting focus without the cover.

Semi-Automatic Focus

lnnovative patented design for instant rebound, ensuring pristine engraving results.

Laser Protective Lens Integrated within Air Assist Nozzle

Laser Protective Lens Integrated within

Air Assist Nozzle

Effectively protects the laserand prolongs the laser's service life

Dual-Side Fixture Structure

The structure changes the dot cantactingto a complete surfoce contacting, allowing heavierbearing and much less zigzogs when engraving

Dual-Side Fixture Structure
New Nylon Rollers

New Nylon Rollers

7”24hnon-stop operation with unparalleled

durability - surpasses regular rollers by 5 times

Your Safety is our Most Concern.


Included Plug & Play

Pre-assembled structure and simple installation steps allow you to start the journey with ease.

Assembly Has Never Been So Easy

Empowered Software for Your Seamless Workflow.

AlgoLaser App

Monitor and control your machine and access our advanced features anytime, anywhere.

Requires iOS 11.0 or above

Requires Android 7.0 or above

Lightburn

Our results speak for themselves

Frequently asked questions

Have questions? We’re here to help


What does Delta's Smart mean?

Delta's Smart is mainly reflected in the following aspects:

1, Touch screen: Instant engraving and batch cutting off-line, more user-friendly.

2, Smart laser module(Lens Cleaning Reminder,Flame Detective,Air Pressure Monitoring)

3,Plug& play accessorry( Rotary roller, Rotary chuck)

Is it easy for green hand to use Delta laser engraver?

Yes, super easy to use. our latest design focuses on easy of use, like our touch screen.

Also, the machine is pre-assembled, easy to install

Our YouTube channel has instructional videos for you to learn;HTTP://www.youtube.com/@algolaserofficial

Finally, you can get help from Tech Support Team if you have any questions.

For the screen, can do mass production?

yes, you need to transfer to Gcode files from lightburn or laserGRBL

Is this screen fragile?

Honestly, it is fragile, but we will protect it in the package, also will put a fragile sticker on the box, of course, it is better to pay attention when using.

What the difference of Alpha 22W and Delta 22W?

Both are our newest products with the latest module technology, Delta has all-in-one touch screen and it is pre-assembled, super easy to use, Alpha needs to do more complicated assembly, but they have the same 22w laser module,If you are on a low budget you can consider the Alpha 22W, if you want to experience a newer and high performance engraving and cutting progress,you can choose the Delta 22W.

Product Specifications

AlgoLaser Delta Mechanical Frame

Optical Power: 22W

Machine Power: 144W

Power Supply: 24V/6A

Maximum Engraving Speed: 30,000 mm/min

Maximum Motion Speed: 50,000 mm/min

Spot Size: 0.16*0.14mm 100% Power / 0.06*0.05mm 3% Power

Product Size: X650*Y730*Z175mm

Product Weight: 8.5KG

Laser Head Life Expectancy: >8000 hours

Certification: FCC/CE/RoHS/FDA

Warranty: 12 Months

Safety Features: Active Power-Out detection and protection, Laser Over-Exposure Time Limit, USB disconnect shutdown, Emergency stop button, Gyroscope detection,Motherboard over-temperature protection

Software and Connection

System Supported: Android, iOS, Windows, Mac OS, Web-based

Control Software: AlgoLaser App / LightBurn/LaserGRBL

Compatible Accessories: 22W laser module, Motorized Z-axis, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller

File Format Supported: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.

Laser Head - AlgoLaser 20W - LB-20D

Laser Module Size:132mm x 63mm x 60mm

Laser Module Weight:750grams - 1.6 Pounds

Optical Power Output:19.5 to 22W, Average 20W, Acceptable Power Output Variation +5%

Laser Output Wavelenght: 445nm (+-5nm)

Focal Distance: 55 mm (From Module Radiator to Material)

Spot Size: At 3% power: X 0.06mm - Y 0.05mm, At 100% power: X 0.16mm - Y 0.14mm, Click HERE to understand how Spot Size is tested

Spot Shape: Square

Operating Frequency: <30KHz

Operating Temperature: -10ºC - +40º | 14ºF - 104ºF, Multiple Optical Lens Assembly

Diodes Input Voltage: 8.60 Volts

Diodes Inpute Current: 3.8 Amps

Harness Specification: Data Line 4x 26AWG - 0.14 (mm2 cross-sectional area), Laser Line 4x 22AWG - 0.34 (mm2 cross-sectional area)

Connectors Type: Data Line - PHB 2.0 4Pin, Laser Line -

Life Expectancy: >10,000 Hours

Optical Lense Material: Professional focusing optical glass (quartz glass), Multiple Optical Lens Assembly

Packaging

Box Size: 230mmx250mmx710mm

Net Weight: 5.00kg - 11 Pounds

Gross Weight: 6.50kg - 14.3 Pounds


Learn More About Delta

Delta Cutting performance

Best One-Pass Cutting Material and Thickness

10mm Birch Plywood

12mm Basswood Plywood

5mm Eucalyptus plywood

30mm Pine Board

15mm Paulownia Plank

10mm White Oak

5mm MDF

10mm Black Acrylic

3mm Yellow Acrylic

5mm Red Acrylic

3mm Gray Cardboard

0.17mm Stainless Steel Plate

10mm Bamboo

Max Cutting Thickness

12mm Birch Plywood / 3

20mm Basswood Plywood / 15

15mm Eucalyptus plywood / 6

20mm Paulownia Plank / 3

45mm Black Acrylic / 15

8mm Green Acrylic / 6

10mm Red Acrylic / 6

12mm MDF / 6

6mm Gray Cardboard / 2

20mm White Oak / 5

Delta Video

Algolaser Delta 22W Laser Engraver Tutorial

AlgoLaser Delta 22W Assembly Video Guide

Youtube Review Videos

Discover more about Delta from Youtubers

AlgoLaser Delta User Stories

Please be assured that all the above videos are real using experiences of our customers. Hope these videos will give you useful information about our machines. For more details, please follow us @algolaserofficial

Learn about AlgoLaser other products

Faster, Smarter, Stronger.

Algolaser laser cutters combine impressive power with exceptional safety features, ensuring that anyone can easily unleash their creativity and bring their ideas to life through engraving.

Firmware Download & Support

Firmware

Firmware

Firmware is the code that is written to a memory of your AlgoLaser Motherboard. Firmware is installed directly during manufacturing, however its been constantly improved and updated. Please keep a good eye below to confirm if your machine needs to be updated.

AL_D1_115_110

27-11-2023

AL_DELTA_G1.SDS

01-11-2023

AL_DELTA_109

22-09-2023

Please note: The zip file contains both the firmware file and tutorial for firmware upload. When uploading the firmware, avoid uploading the tutorial as well.

Downloads

Destktop Computer Software

Below you will find the links to download the latest version of the software. Make sure to always use the installers from the correct source and keep your software updated.

Software

LightBurn Software

Windows / Linux / MacOs

Download PAGE

LaserGrbl

Windows

Download PAGE

Profiles

LightBurn Profile
Ready to import Lightburn Profile for AlgoLaser Delta.
    1. Download file
    2. In Lightburn – Click Devices in Laser Panel
    3. Click Import
    4. Browse to the file you downloaded.
    5. Click Open
Your AlgoLaser Delta will be imported to Lightburn Devices.
     USB Profile

Documentation

User Manuals

AlgoLaser Delta - Quick Start Guide (EN)

01-08-2023

pdf

The Difference With Alpha


Price

$799

$999

Laser Power

22W

22W

Laser Spot Size

0.16*0.14mm 100% Power

0.06*0.05mm 30% Power

0.16*0.14mm 100% Power

0.06*0.05mm 30% Power

Laser Wavelength

455±5nm

455±5nm

Focal Length

55mm

55mm

Laser Head Life Expectancy

>10000 hours

>10000 hours

Max Engraving Speed

20000mm/min

30000mm/min

Movement Speed

30000mm/min

40,000mm/min

Focus Mode

Auto/Manual

Auto/Manual

Machine Power

144W

144W

Power Supply

24V/6A

24V/6A

Motherboard Version

ALGO_LASER_

V2.1

ALGO_LASER_

V3.1

Working Area

400*400mm

440*415mm

3.5'' IPS Screen

/


Offline Engraving

/


RGB Indicator LightRGB

/


Intergrated Air Pump


Connection Method

TF Card

USB C

Wifi-2.4G

TF Card

USB-A/C

Wifi-2.4G/5G

U Disk

Software Supported

LightBurn

LaserGRBL

AlgoLaser App

LightBurn

LaserGRBL

AlgoLaser App

File Format Supported

JPG

SVG

PNG

BMP

G-code

CAD

 AI

CDR

DWG, etc.

JPG

SVG

PNG

BMP

G-code

CAD

 AI

CDR

DWG, etc.

System Supported

Android

 iOS

Windows

Mac OS

Web-based

Android

 iOS

Windows

Mac OS

Web-based

Working Temperature

-15°C ~ 30°C

-15°C ~ 30°C

Product Weight

5KG

8.5KG

Product Size

X585*Y674

*Z200mm

X650*Y730

*Z175mm

Packing Weight

9.62KG

12.0KG

Packing Size

870*290*280mm(with pump)

795*720*145mm

Certification

FCC

CE

RoHS

FDA

FCC

CE

RoHS

FDA

Warranty

12 Months

12 Months

Best One-Pass Cutting

Birch plywood

Basswood plywood

Eucalyptus plywood

Pine board

Paulownia board

White Oak

MDF

black acrylic

yellow acrylic

red acrylic

gray cardboard

Stainless steel plate

Bamboo


10mm

12mm

5mm

30mm

15mm

10mm

5mm

10mm

3mm

5mm

3mm

0.17mm

10mm


10mm

12mm

5mm

30mm

15mm

10mm

5mm

10mm

3mm

5mm

3mm

0.17mm

10mm

Max Cutting Thickness

Birch plywood

Basswood plywood

Eucalyptus plywood

Paulownia board

Black acrylic

Green acrylic

Red acrylic

MDF

Gray cardboard

White Oak

Bamboo

Pinewood


12mm / 3

20mm / 15

15mm / 6

20mm / 3

45mm / 15

8mm / 6

10mm / 6

12mm / 6

6mm / 2

20mm / 5

10mm / 1

30mm / 1


12mm / 3

20mm / 15

15mm / 6

20mm / 3

45mm / 15

8mm / 6

10mm / 6

12mm / 6

6mm / 2

20mm / 5

10mm / 1

30mm / 1

Engraving/Cutting Materials


Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.

Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.


Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.

Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.
