This smoke purifier is only compatible with Pixi 3W/5/10W and Pixi 1064 machines.The RR3 is compatible with all AlgoLaser machine models.

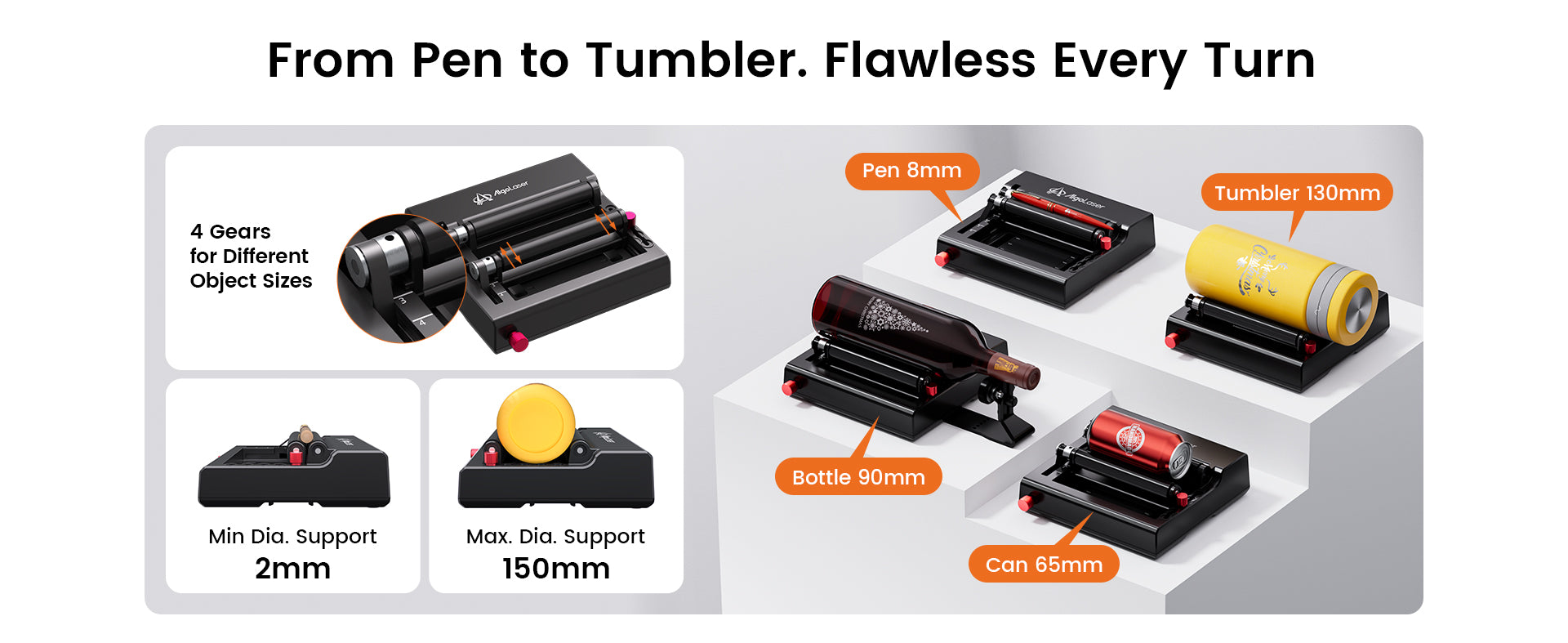

2mm

150 mm (open-frame machines: Alpha MK2 / DIY KIT / T150)

95 mm (Pixi, inside enclosure)

70 mm (Pixi, extended outside)

1–100 mm (open-frame machines)

Up to 70 mm (Pixi, extended outside)

1–150 mm (open-frame machines)

Up to 70 mm (Pixi, extended outside)

When using the RR3, you must enable ARR (rotary) mode in the machine settings or select “Roller” mode in LightBurn.

In this mode, the homing function is disabled by design, as it is not required during rotary engraving.

After finishing with the RR3, remember to restore the machine settings to normal (flat engraving mode).

Please check whether the machine is set to ARR mode.

Go to Laser Tools → Rotary Setup

Verify that all parameters are correctly entered

Make sure “Enable Rotary” is turned on

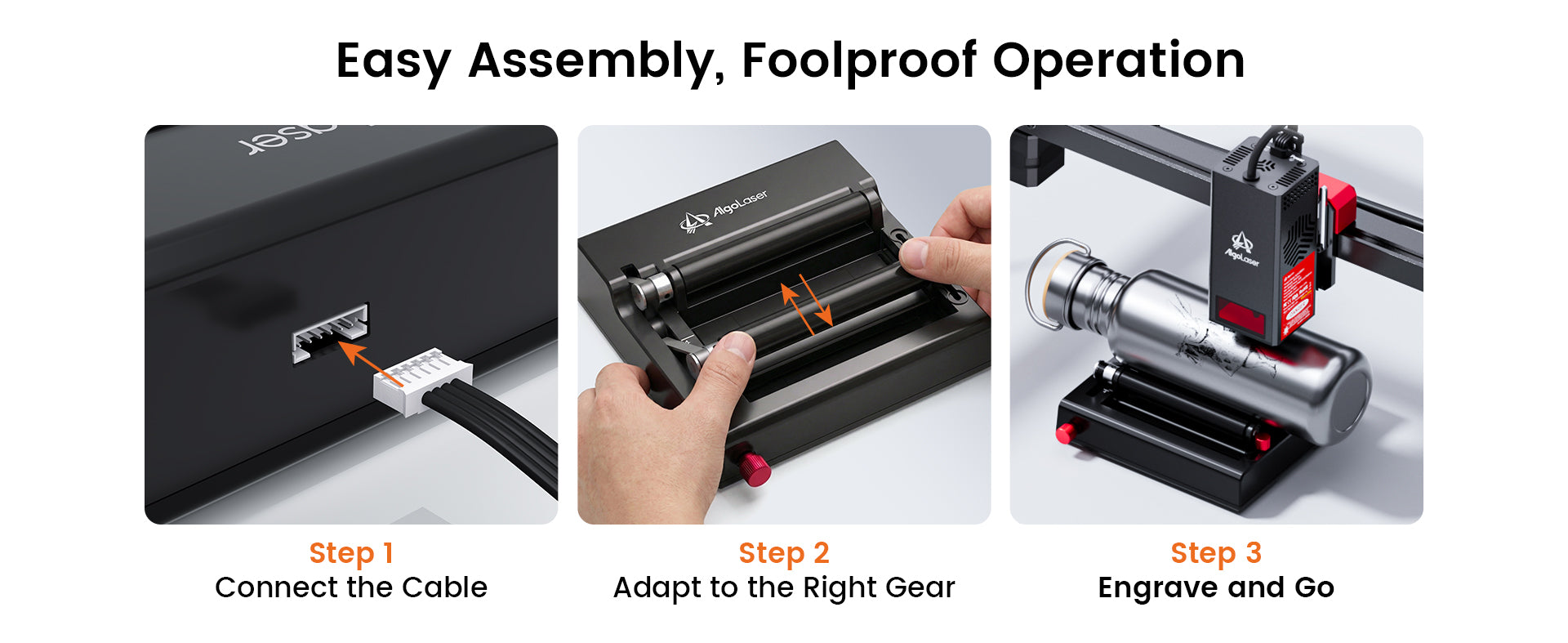

Please check whether the RR3 is installed in the correct direction according to the user manual.

The RR3 can be compatible with some third-party machines that use a 6-pin Y-axis motor cable.

For customization, refer to section “3. Introduction to RR3 Rotary Roller” in the manual

Use the cable labeled “Customize”

⚠️ Before connecting, contact your machine manufacturer to confirm the correct wiring sequence

Then assemble the “Customize” cable accordingly
