Laser Engraved Plywood Sunset Painting Art

Materials Needed

3 mm Plywood

AlgoOS Laser System  →

Machine Used

AlgoLaser DIY KIY MK2 10 W Laser Engraver

See suggested settings for your Laser Machine    →

Laser Cutting

Line 1/Speed 1

260mm/min

Power

100%

Pass

1

  • How to Laser Engrave 3D Plywood Sunset Painting Art: A Step-by-Step Guide

Creating a 3D plywood sunset painting using a laser engraver is more than just a project—it’s an art form that blends precision technology with human creativity. In this comprehensive guide, we’ll walk you through five key steps to bring your vision to life using the AlgoLaser DIY KIY MK2 10W laser engraver. With a little patience and a lot of passion, you'll be turning simple plywood into layered, vivid sunset scenes that look like they came right off a painter’s canvas.

Step 1: Prepare Your Materials and Setup

Before you dive into the creative process, let’s start with the foundation: preparing your workspace and equipment.

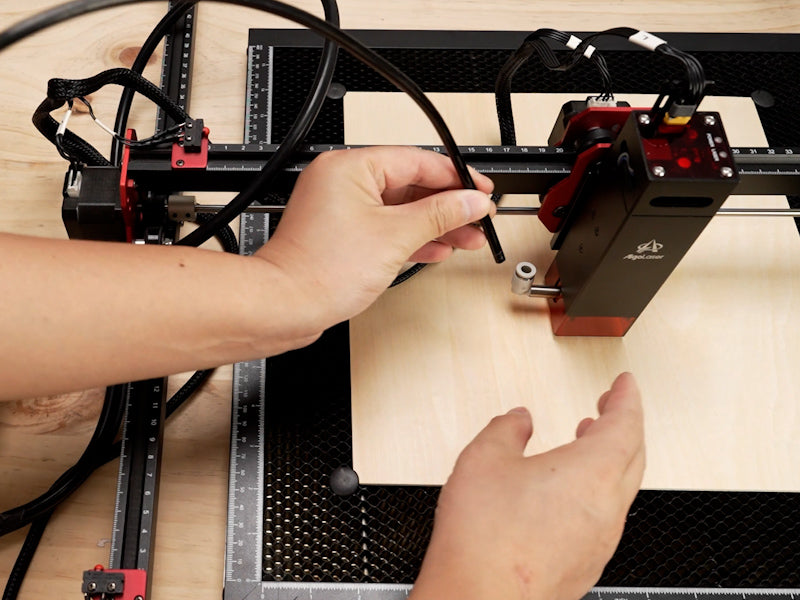

1. Place the plywood in the engraving area Carefully position your plywood sheets flat on the working bed of the laser engraver. Make sure there are no dust particles or uneven surfaces. Clean contact ensures smooth laser cutting and prevents burn errors.

2. Adjust the focal length of the module The AlgoLaser MK2 uses a focusing tool. Slide the tool under the laser module and adjust the height so the module just touches it. Pull the tool out smoothly. A well-set focus means better cutting depth and sharper engraving.

3. Connect the air pump Attach the air pump hose to the laser head. This helps blow away debris during the engraving, keeping your cuts clean and protecting the lens from smoke.

4. Plug in the power cord and air pump cable Make sure both the laser engraver and air pump are powered up. Plug them into an appropriate power source.

5. Turn on the machine Switch on the MK2 and wait for the screen to load up. Once you see the main menu, you’re ready to go.

Step 2: Load the Design and Select the Settings

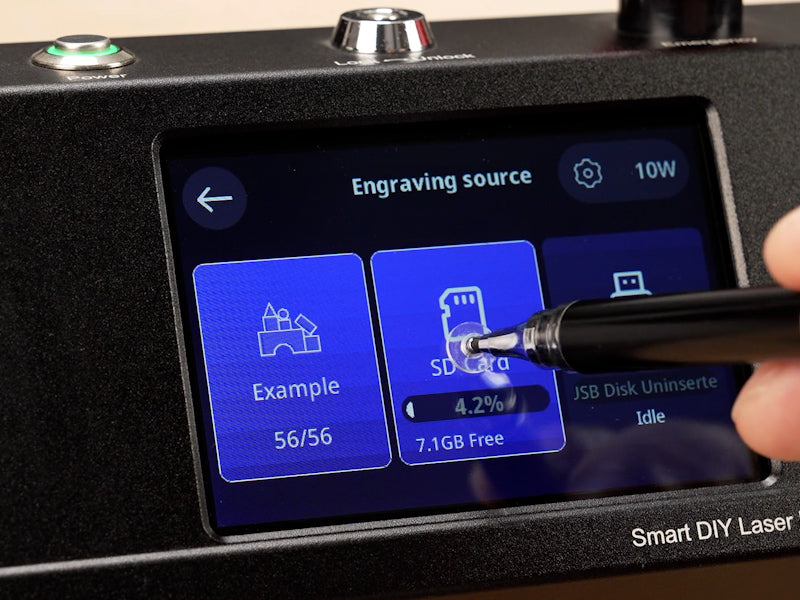

1. Click on "Projects" then "SD Card" Using the MK2’s touch screen, navigate to the "Projects" tab and select "SD Card." This is where your cutting file should be saved.

2. Select the cutting file Choose the file that includes the layers of your sunset painting—each representing a different portion of the 3D depth.

3. Select the thickness of the plywood board Accurate thickness selection is crucial for clean cuts and properly layered artwork. If you’re using 3mm plywood, set this accordingly in the system.

4. Adjust the cutting speed For this project, use the recommended cutting parameters:

·  Line speed: 260mm/min

·  Power: 100%

·  Pass: 1

These settings work well for 3mm plywood using the AlgoLaser MK2 10W laser engraver.

Step 3: Execute the Engraving and Cutting

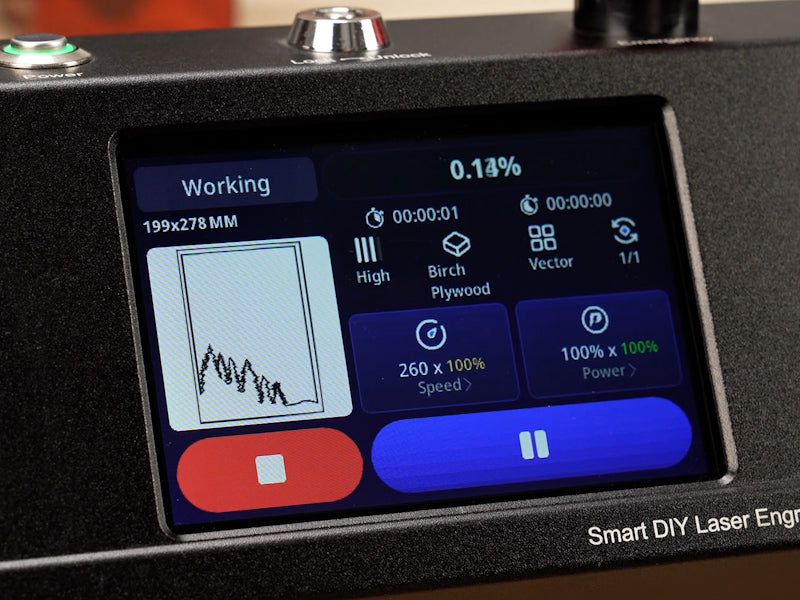

1. Start cutting After confirming your settings and previewing the cutting path on the screen, hit "Start." Let the machine do its magic. You can monitor the progress but avoid hovering too close.

2. Remove the cut pieces carefully Once cutting is complete, use tweezers or a soft spatula to gently lift each piece. You should now have multiple shapes that resemble elements of a sunset: mountains, clouds, sun, trees, and more.

3. Sand if necessary Use fine-grit sandpaper to smooth any burn marks or frayed edges. Clean surfaces will ensure a better paint finish.

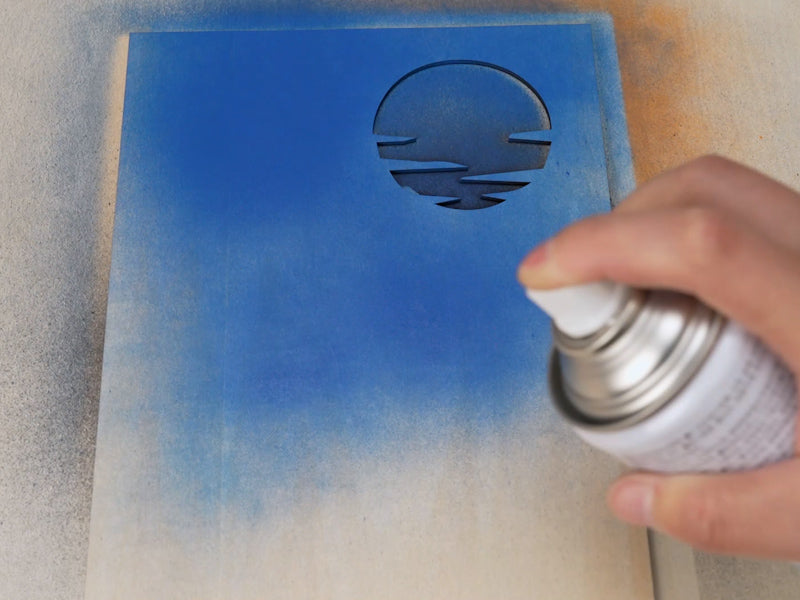

Step 4: Spray Painting the Wooden Layers

1. Set up a well-ventilated spray area Lay out newspaper or a tarp in an open or well-ventilated space.

2. Choose your color palette A sunset scene typically involves shades of orange, red, pink, purple, and deep blues. For the foreground (trees, mountains), use darker shades like black or brown.

3. Spray paint each layer Apply thin, even coats. Don’t oversaturate—multiple light passes will give a better finish. Let each layer dry before applying another. Drying usually takes 20-30 minutes.

4. Add detailing Optional: You can use acrylic pens or fine brushes for highlights, shadows, or clouds.

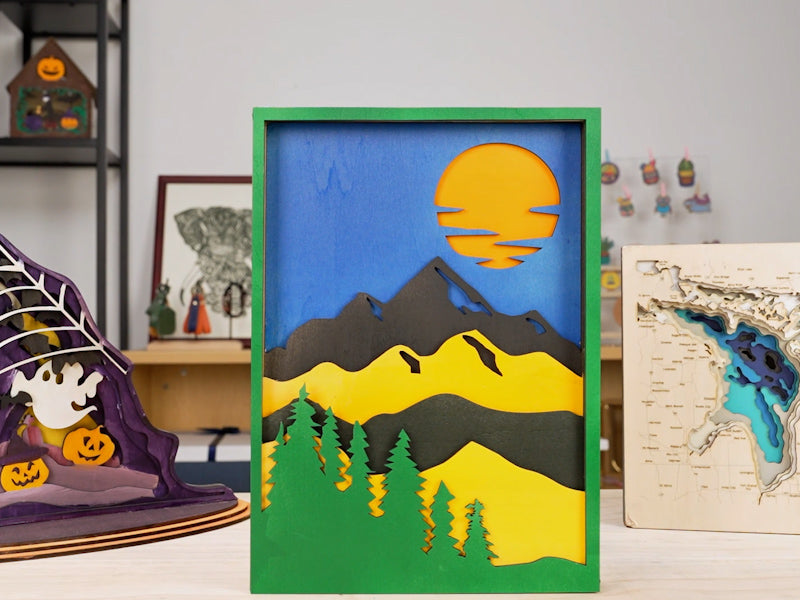

Step 5: Assemble the 3D Sunset Painting

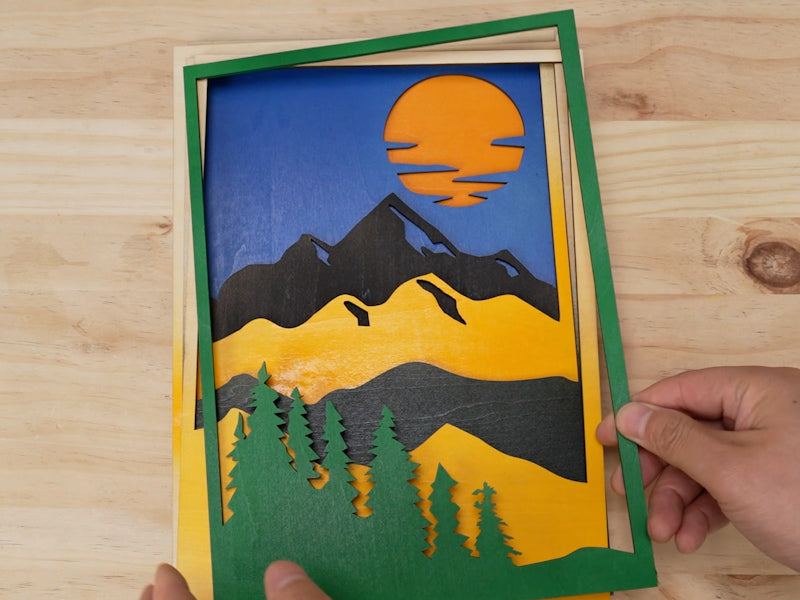

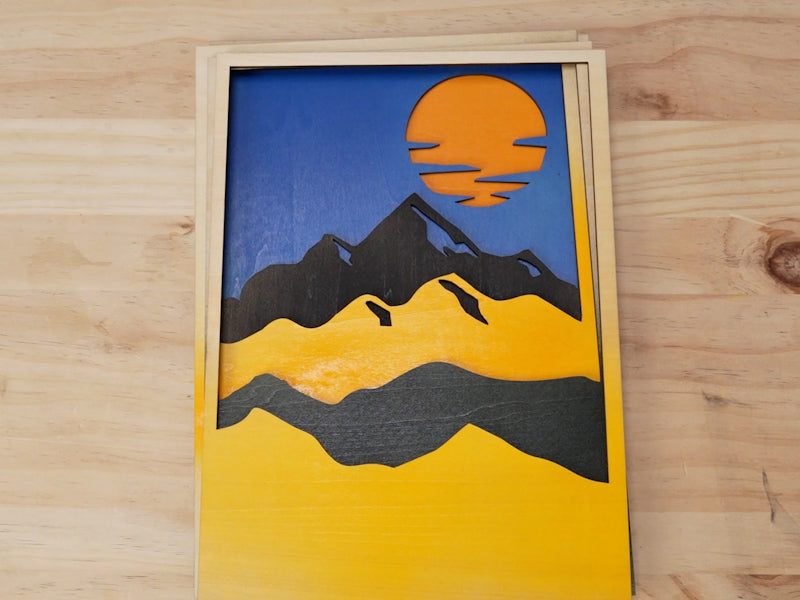

1. Stack the wooden boards in order Start from the background and build toward the foreground. Begin with the base layer (sunset sky), then move to distant mountains, middle-ground trees, and foreground silhouettes.

2. Use wood glue or spacers Apply small dots of wood glue or double-sided foam tape between layers to give depth. You can use tiny wooden spacers to separate layers further.

3. Press and hold Use clamps or gentle weights to press the layers together for 10-15 minutes until the glue sets.

4. Frame or mount your artwork Optional: Mount your piece in a shadow box frame or on a wooden backing panel for display.

5. Display it proudly Whether it’s hanging in your living room or featured in a local art show, your laser-engraved 3D sunset painting will turn heads.

6 FAQs About Laser Engraving 3D Plywood Sunset Painting Art

1. Can I use any plywood for this project?
Stick with high-quality birch or basswood plywood. Avoid particle board or MDF—they can release harmful fumes when burned.

2. How long does the project take from start to finish?
Depending on the design complexity and drying times, expect 4-6 hours from laser cutting to final assembly.

3. What if the pieces don’t align perfectly?
Slight mismatches can be fixed by sanding or trimming. You can also paint strategically to hide gaps.

4. Can I use paint instead of spray paint?
Absolutely. Spray paint gives a cleaner finish, but acrylic paints with brushes allow more control and creativity.

5. How do I avoid charring on the plywood edges?
Use air assist (the air pump) and check your focus height. Also, avoid excessive power or multiple passes.

6. Can I engrave details on the layers too?
Yes! Before cutting, you can engrave texture or fine details like tree bark or clouds to add realism.

Final Thoughts

Creating a 3D plywood sunset painting using a laser engraver like the AlgoLaser MK2 is an incredibly rewarding process. It's hands-on, artistic, and deeply satisfying to see your layered masterpiece come to life. With just five well-planned steps and the right materials, you can turn a stack of plain plywood into a vibrant sunset you’ll be proud to display.

So go ahead, power up that laser engraver, and bring a little sunset into your space!
