Laser engraved Dad Stainless Steel Water Cup

Materials Needed

Stainless Steel Water Cup

AlgoOS Laser System  →

Machine Used

AlgoLaser DIY KIY MK2 Laser Engraver

AlgoLaser 1064nm Infrared Laser Module

See suggested settings for your Laser Machine    →

Laser Engraving

Line 1/Speed 1

3000

Line Interval

0.1mm

Power

100%

Pass

1

  • How to Laser Engrave a Stainless Steel Water Cup for Dad

Looking for the perfect personalized gift for Father's Day, a birthday, or just because? Engraving a stainless steel water cup with a thoughtful design using a laser engraver is one of the coolest ways to show Dad how much he means to you. With a high-quality machine like the AlgoLaser DIY KIY MK2 10W Laser Engraver and a bit of careful preparation, you can create a sleek, professional-looking custom cup right at home.

In this detailed guide, we'll walk you through the 5 essential steps to laser engrave a stainless steel water cup. Whether it's "#1 Dad," his favorite quote, or a custom logo, the process is both fun and satisfying. We'll also cover six frequently asked questions at the end, just in case you hit a snag. Let’s jump in!

Step 1: Set Up Your ARC and Equipment

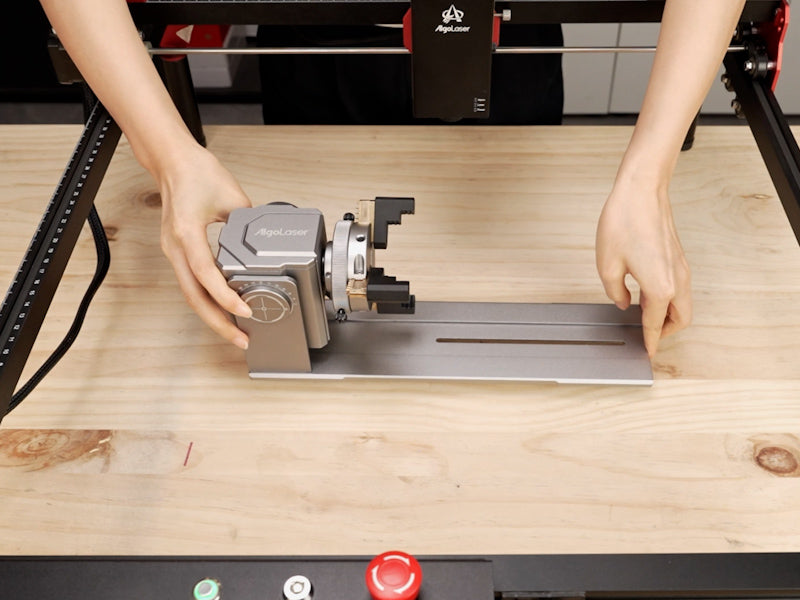

First things first, place your ARC rotary attachment in the engraving area of your workspace. This accessory is essential for engraving cylindrical items like water cups, bottles, and mugs. Make sure the ARC is positioned properly so the cup will rotate smoothly.

Now grab the appropriate connecting cable. This will link your laser engraver to the ARC. Plug one end of the cable into the Y-axis terminal on your engraving machine, and connect the other end to the ARC. It should click securely into place.

Next, make sure the motor of the ARC is laying flat on the surface. This helps avoid shaking or slipping while engraving. Once it’s flat, tighten the knob to lock the ARC into place. This stability is key for precision engraving.

Step 2: Prep the Stainless Steel Water Cup

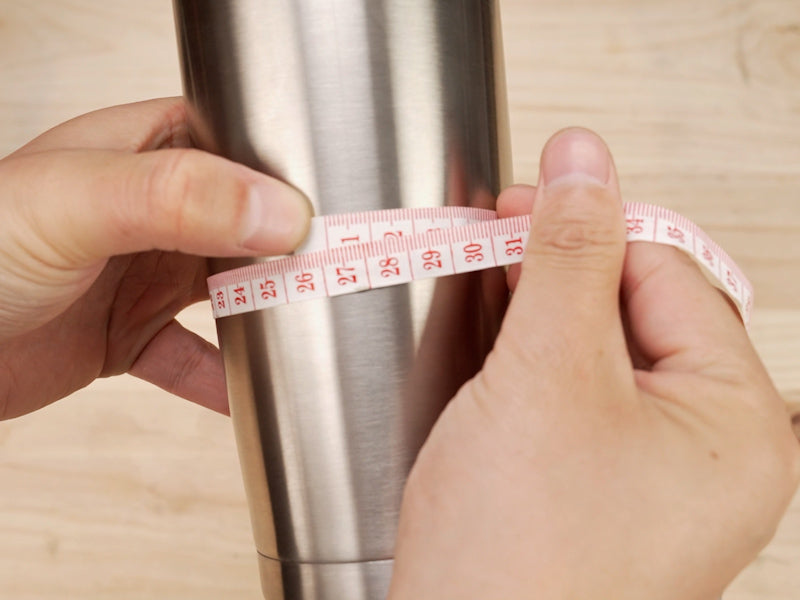

Before you fire up the laser engraver, you need to measure the circumference of your stainless steel water cup. This measurement helps determine the calibration settings in the software.

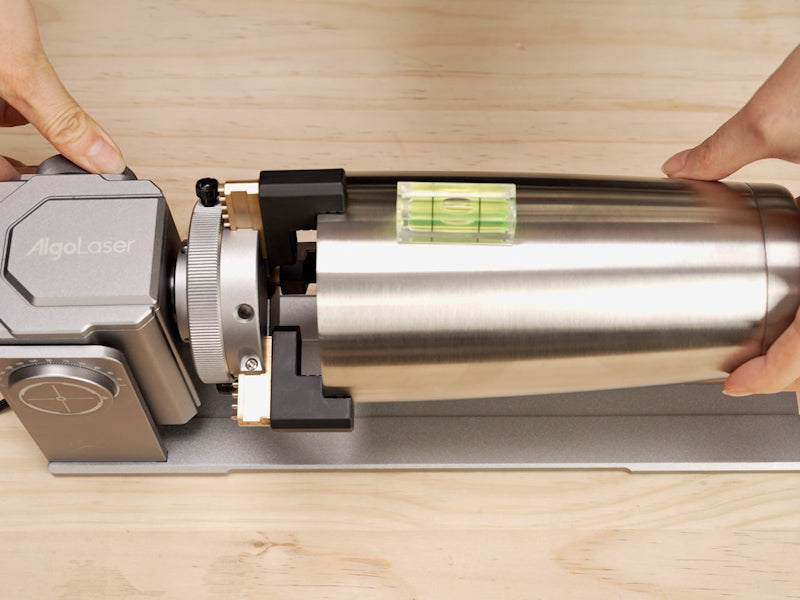

Clamp the cup securely onto the ARC. Be sure it’s centered and gripped tightly, but not so tight that it gets dented. Now grab a small level and place it on the side of the cup.

Adjust the ARC's chuck until the level reads evenly across the horizontal plane. This ensures the design engraves evenly across the surface. Even a slight tilt can cause blurry or distorted results.

Step 3: Adjust the Focal Length and Software Settings

Now it’s time to fine-tune the focus. Use the provided focal gauge (or focus tool) to adjust the focal length between the laser head and the surface of the cup. For the AlgoLaser MK2 10W, proper focal length is critical to achieve sharp and clear results.

Next, go to the touch screen interface on the laser engraver. Tap "Settings," then navigate to "Machine." Find "Working Mode" and select "ARC Chuck Mode." This mode is specially designed for cylindrical objects.

You’ll be prompted to set a calibre value. This refers to the diameter of your water cup. Input the value based on your earlier measurement.

Step 4: Load Your Design and Choose the Right Parameters

Return to the home screen, and tap on "Laser." Now switch the laser power to "2W 1064nm." This wavelength is ideal for engraving on metal surfaces like stainless steel. It offers higher contrast and better detail.

Go back to the home page again and click on "Projects," then "SD Card." Select the engraving image you’ve saved. Whether it’s a text design, logo, or image, the file must be compatible with your laser engraver.

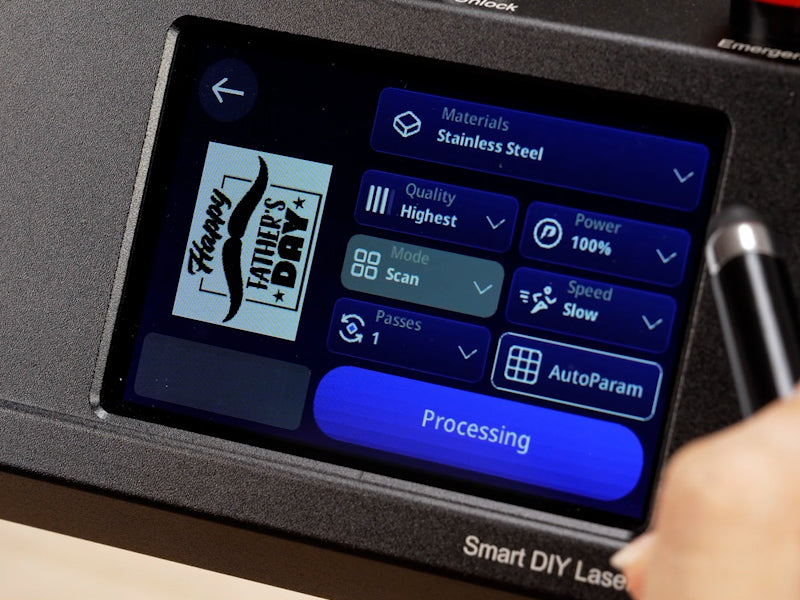

Set your engraving parameters as follows:

·  Fill Speed: 3000 mm/min

·  Power: 100%

·  Line Interval: 0.1 mm

·  Pass: 1

These settings have been tested on stainless steel with the AlgoLaser MK2 10W and yield excellent results.

Click on the frame button to preview the engraving area. This is your last chance to make sure the design is centered and correctly scaled. Once everything checks out, you’re ready.

Step 5: Engrave and Impress Dad

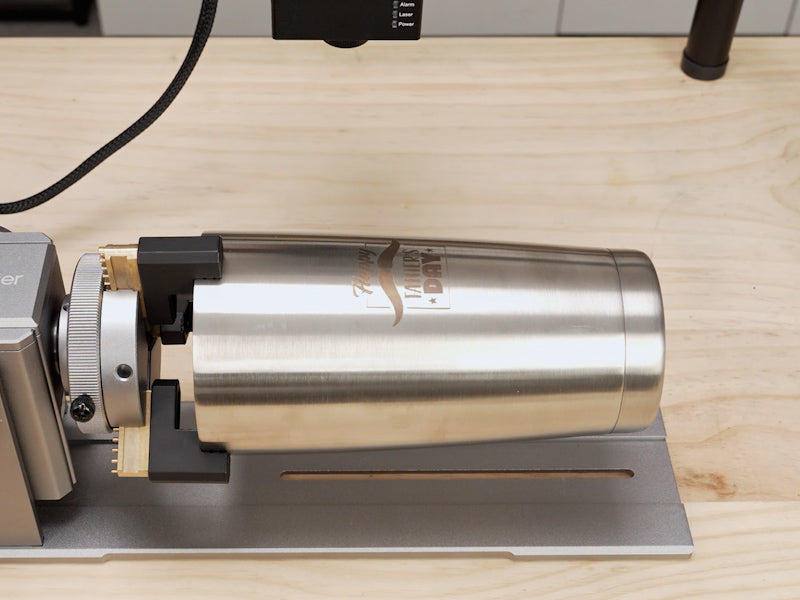

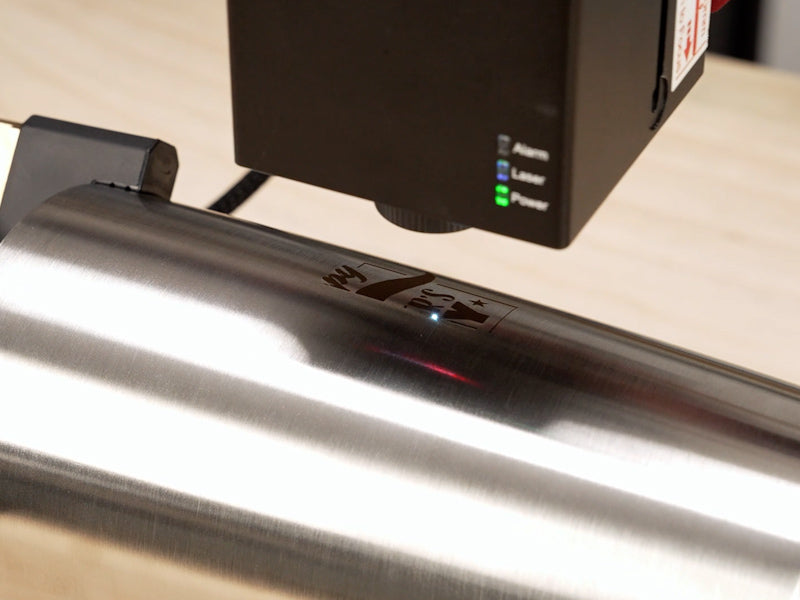

Hit the "Start" button and let the laser engraver do its magic. You’ll see the ARC rotate smoothly as the laser etches the design onto the stainless steel surface. Depending on the complexity and size of the design, engraving can take anywhere from a few minutes to over an hour.

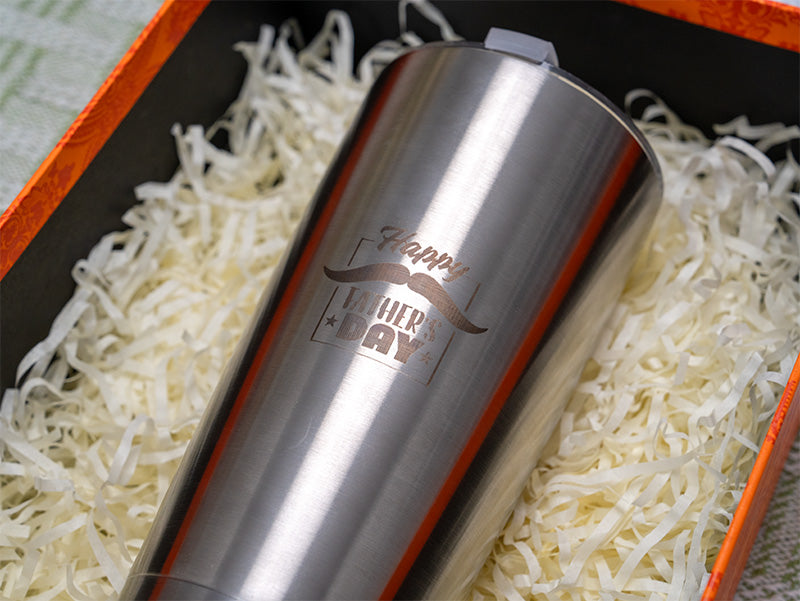

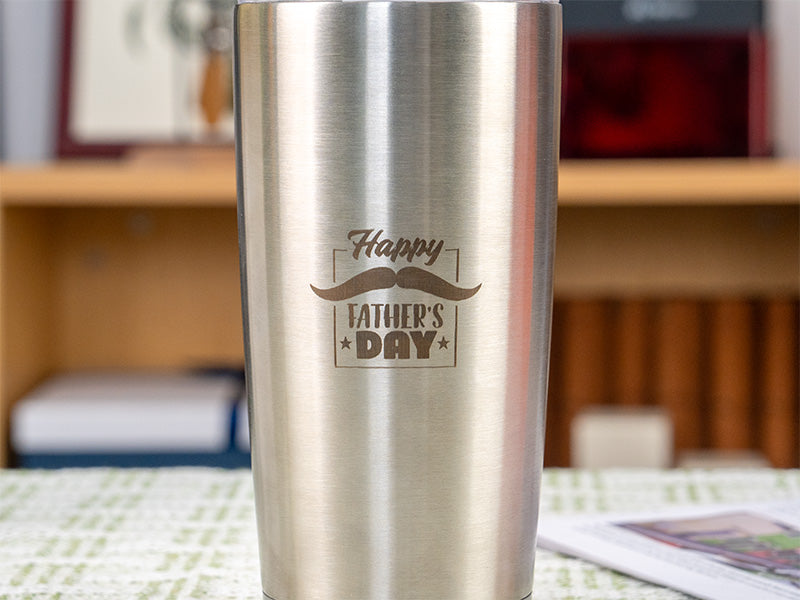

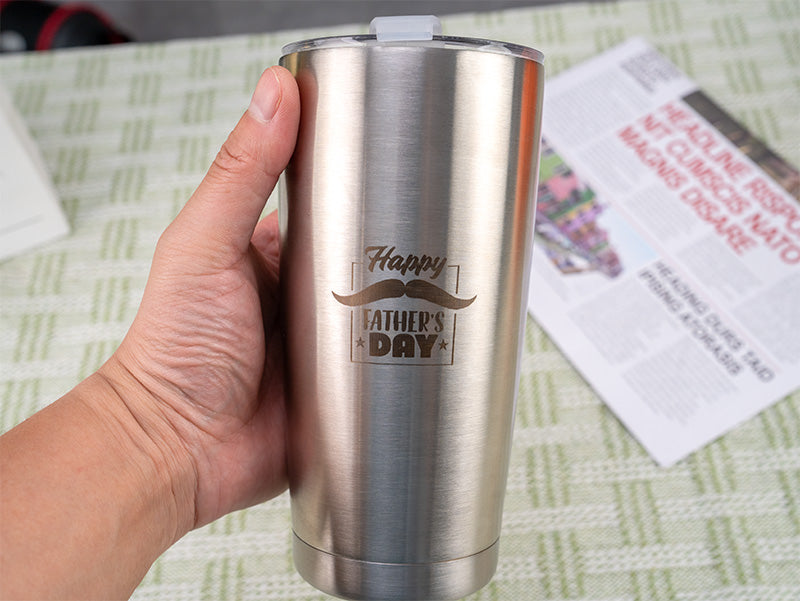

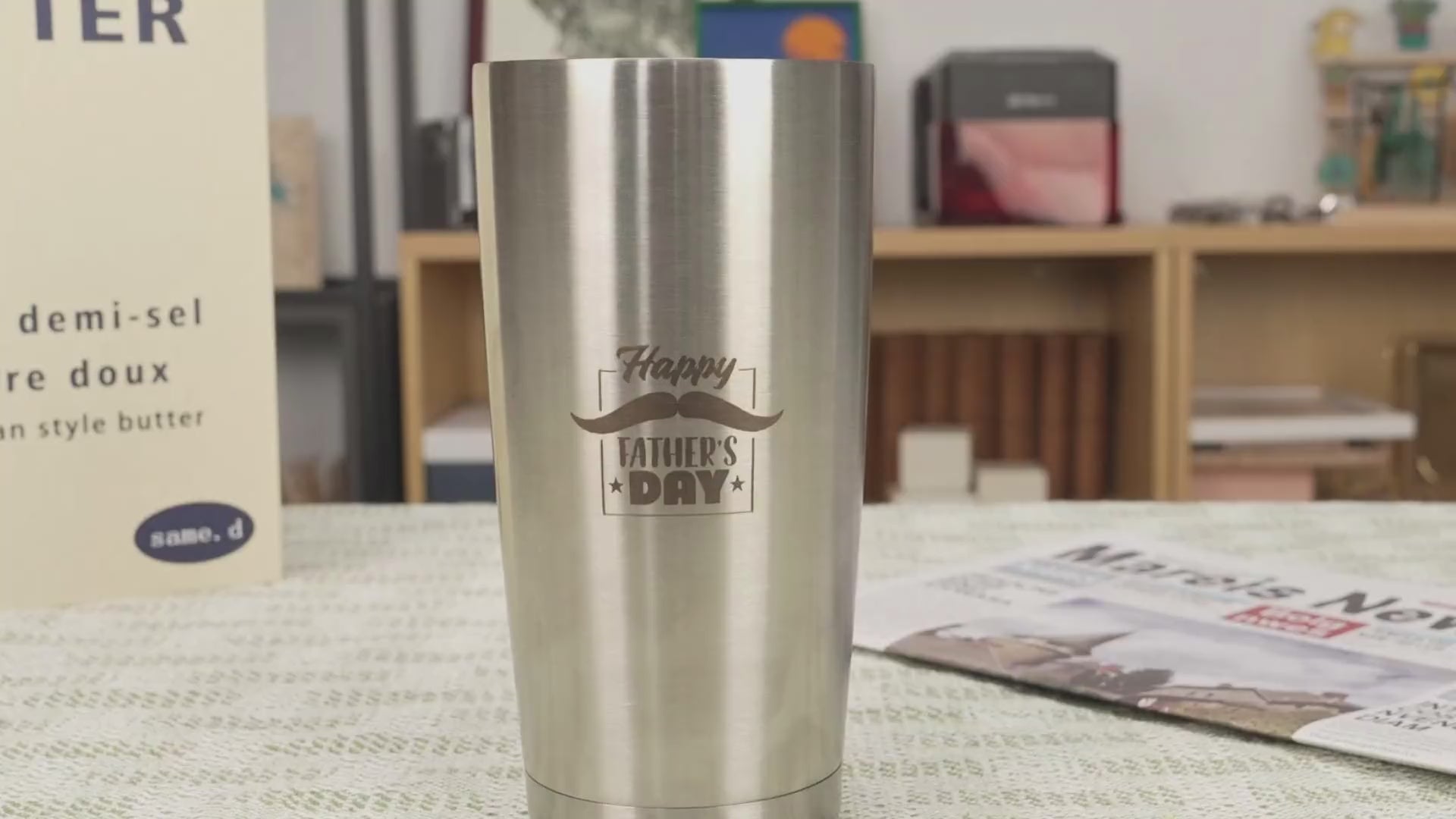

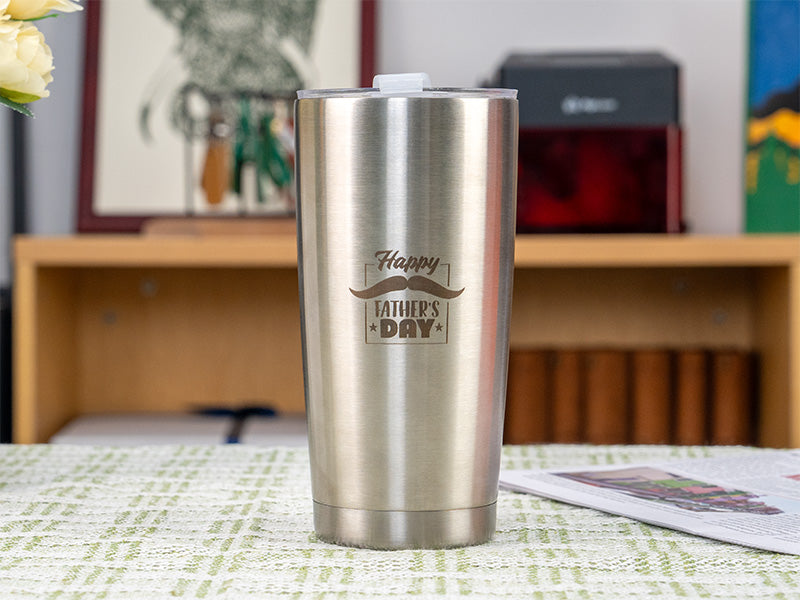

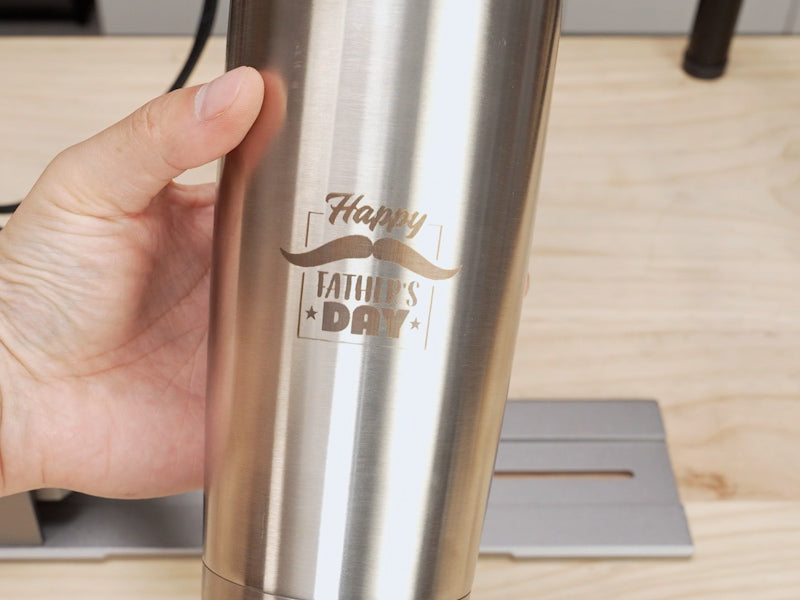

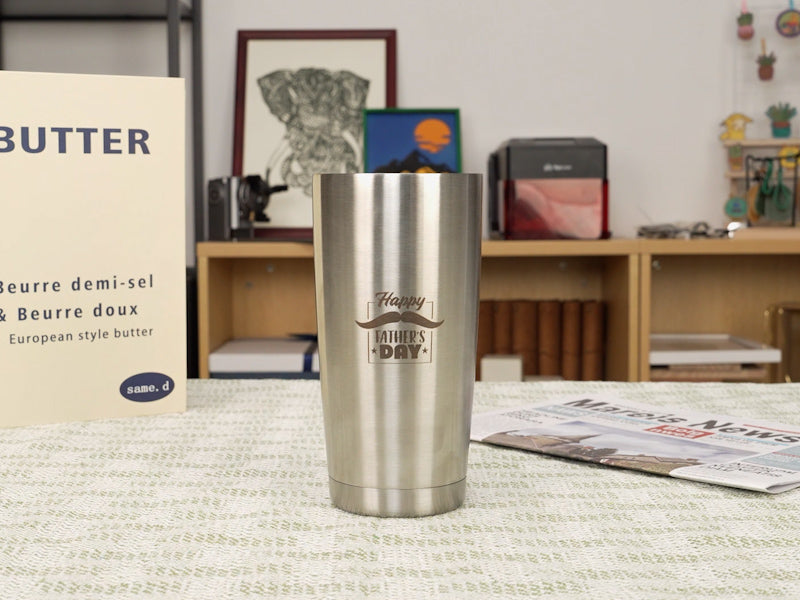

After the process is complete, let the cup cool down before touching it. You can gently clean off any residue with a microfiber cloth. And just like that, you have a one-of-a-kind, personalized stainless steel water cup your dad will cherish for years to come.

6 Frequently Asked Questions (FAQs)

1. Do I need to coat the stainless steel before engraving? No, with a laser engraver like the AlgoLaser MK2 using the 1064nm wavelength, coating isn’t necessary. It provides direct marking on stainless steel without prep spray.

2. Can I use other rotary attachments? Yes, but the ARC is specifically optimized for compatibility with the AlgoLaser engraver. Using it ensures smoother operation and easier calibration.

3. What file types does the engraver support? The MK2 typically supports standard vector and image file formats like .svg, .dxf, .bmp, and .png. Make sure your file is saved properly before uploading to the SD card.

4. Can I engrave colored stainless steel cups? Yes, but keep in mind that engraving will typically remove the outer coating and reveal the base metal underneath. Results may vary based on cup material and coating thickness.

5. Why is my engraving uneven? Make sure the cup is level and properly clamped on the ARC. Double-check the focal length and ARC Chuck Mode settings. An uneven surface or incorrect focus can result in blurry designs.

6. What safety precautions should I take? Always wear safety glasses rated for your laser wavelength, keep the machine in a well-ventilated area, and never leave the machine unattended while operating.

Final Thoughts

Whether you’re a beginner or a seasoned maker, using a laser engraver to craft a custom stainless steel water cup for Dad is a rewarding project. Just follow the steps above and you’ll be on your way to gifting something unforgettable. Cheers to all the awesome dads out there!



Free SVG & Gcode Files for Laser Engraving & Cutting can be found here, wich you can import into our laser cutters directly.
