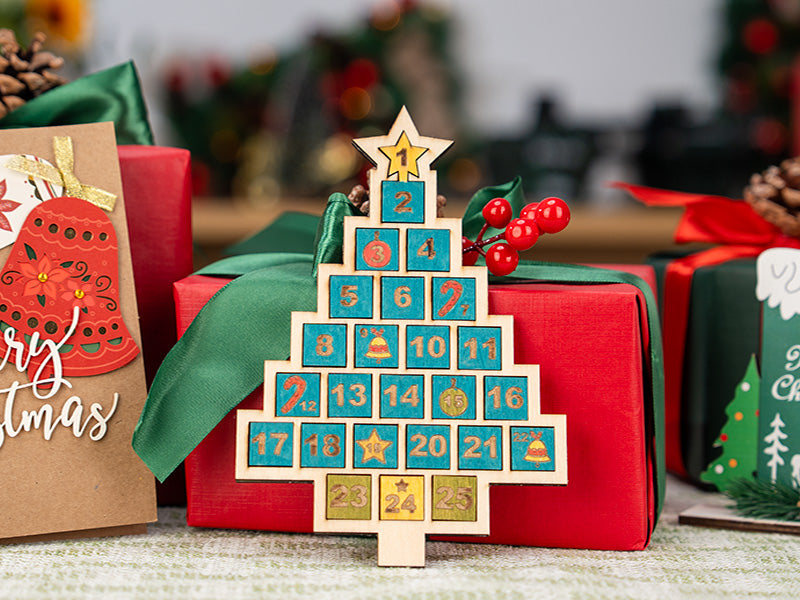

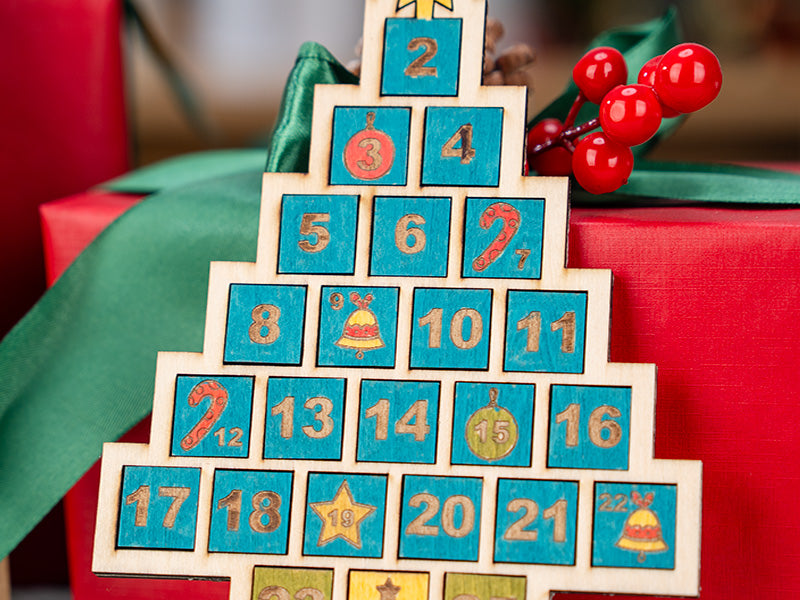

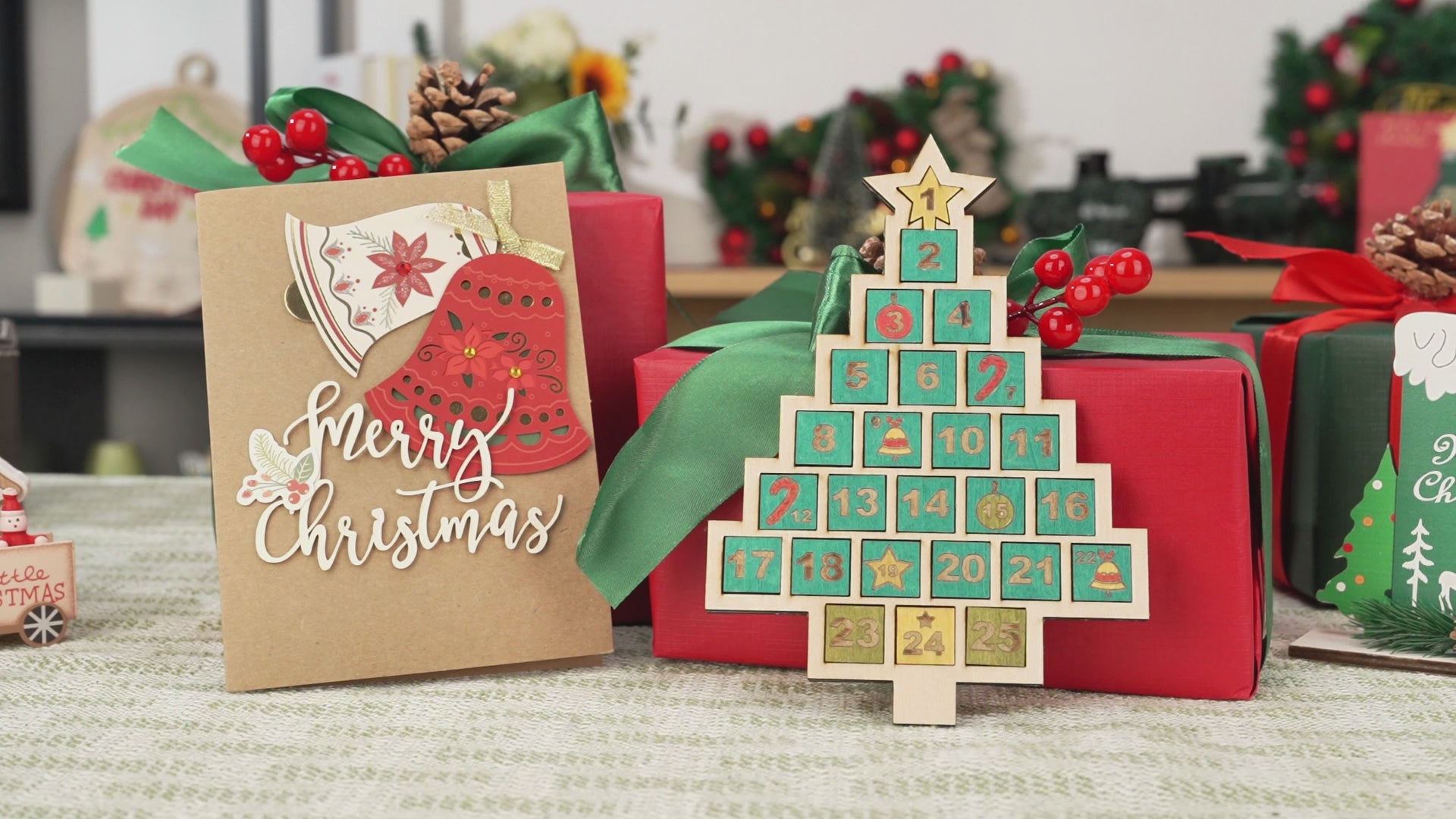

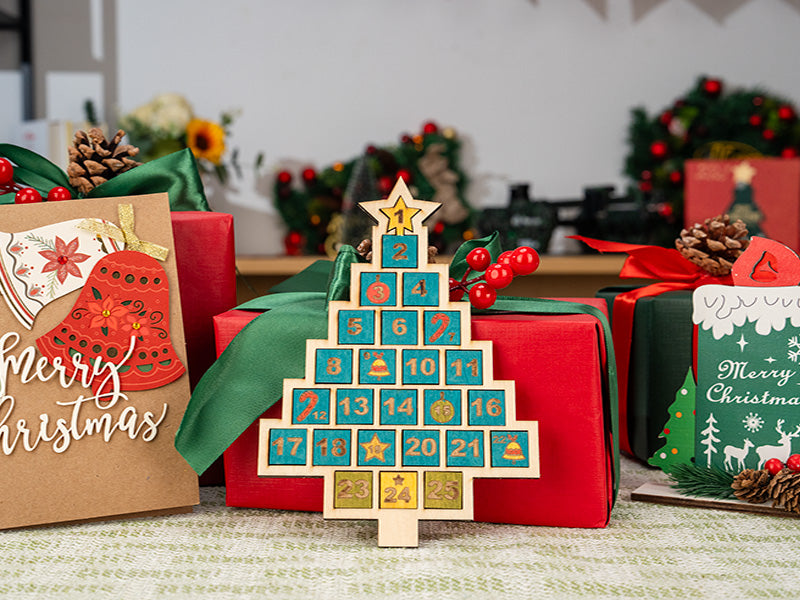

Laser Cut Puzzle Christmas Tree

Materials Needed

3mm Plywood

AlgoOS Laser System →

Machine Used

AlgoLaser Alpha MK2 40W Laser Engraver

Wood Cutting

Fill -Speed

12000mm

Power

100%

Line -Speed

900mm

Pass

How to Laser Cut a Puzzle Christmas Tree with the AlgoLaser Alpha MK2 40W

The holiday season is the perfect time to use your laser engraver for custom projects. One fun and festive way to do this is by creating a puzzle Christmas tree. This laser-cut project combines DIY holiday crafts, precision laser cutting, and the charm of 3mm plywood to create a unique and functional Christmas decoration. In this guide, we will walk you through how to create this puzzle-style tree using the AlgoLaser Alpha MK2 40W.

Whether you're new to laser cutting or an experienced maker, this project offers a perfect balance of creativity and precision. Follow these five easy steps to design, cut, and assemble your puzzle tree for a standout holiday décor piece.

Materials & Laser Cutting Parameters

Before starting, gather your materials and set the cutting parameters for your AlgoLaser Alpha MK2 40W laser engraver.

Materials

· 3mm Plywood (ideal for laser cutting projects)

· Masking tape (optional, to prevent burn marks)

· Fine-tip marker or paint pen (for decorating)

· Wood glue (for assembling puzzle pieces)

· Clamps (to hold pieces together while glue dries)

Cutting Parameters for AlgoLaser Alpha MK2 40W:

· Fill Speed: 12,000 mm/min

· Line Speed: 900 mm/min

· Power: 100%

· Passes: 1

These settings are designed for laser cutting plywood effectively, but you can adjust the cutting speed and pass count depending on material thickness and desired results.

How to Laser Cut a Puzzle Christmas Tree 000

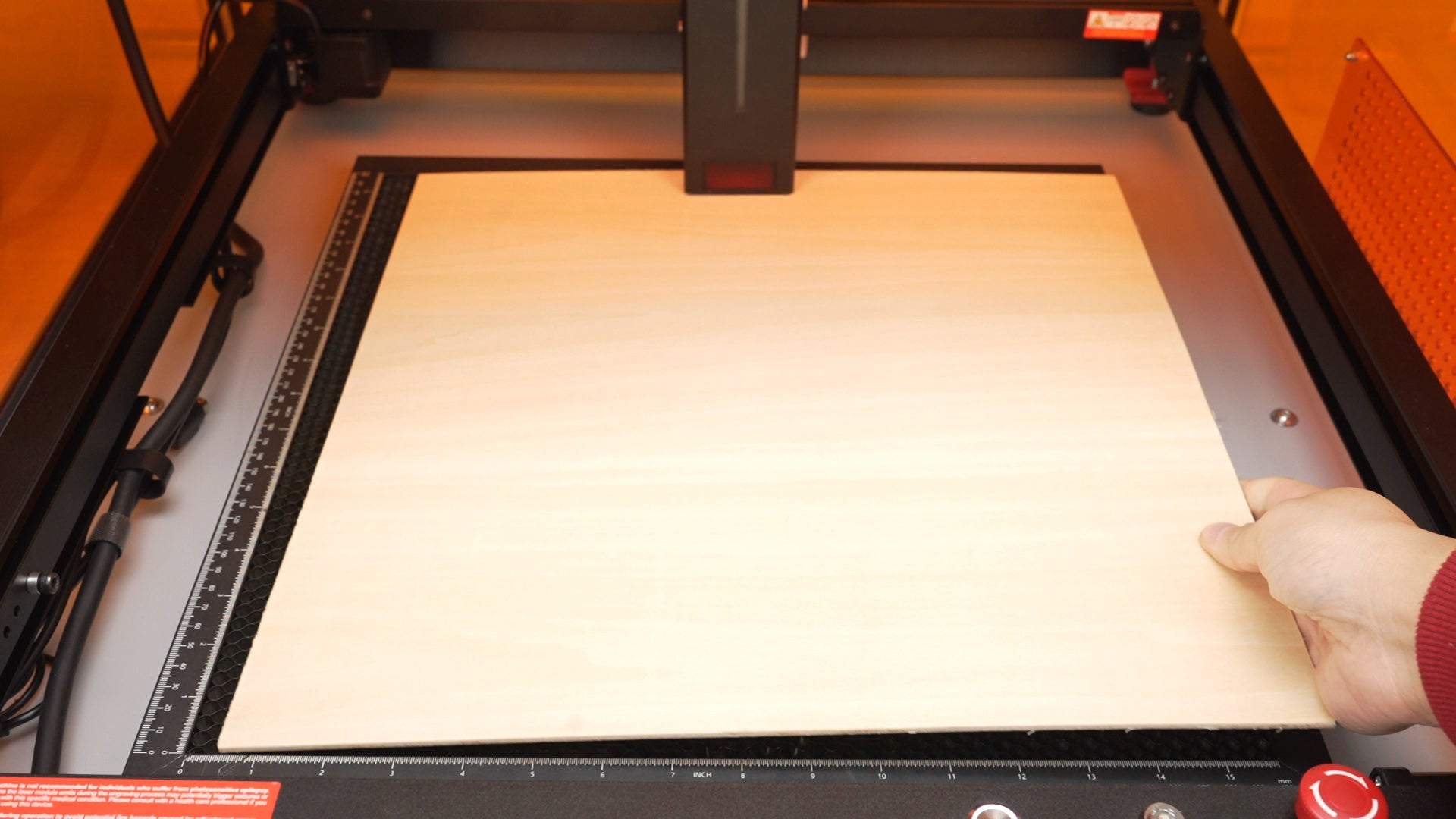

Step 1: Open the Dust Box Lid and Place the Plywood in the Engraving Area

Start by opening the dust box lid to expose the laser engraving bed. The AlgoLaser Alpha MK2 40W features a high-precision engraving area, so ensure there’s no debris or dust before you start.

Place your 3mm plywood securely in the engraving area. Align it centrally to ensure the best laser cutting accuracy. If you want extra precision, you can apply masking tape around the plywood edges to hold it in place and reduce burn marks around the cut edges. This is particularly helpful when working on laser cutting projects like this puzzle tree.

Once the material is aligned, you’re ready to proceed to the next step.

How to Laser Cut a Puzzle Christmas Tree 001

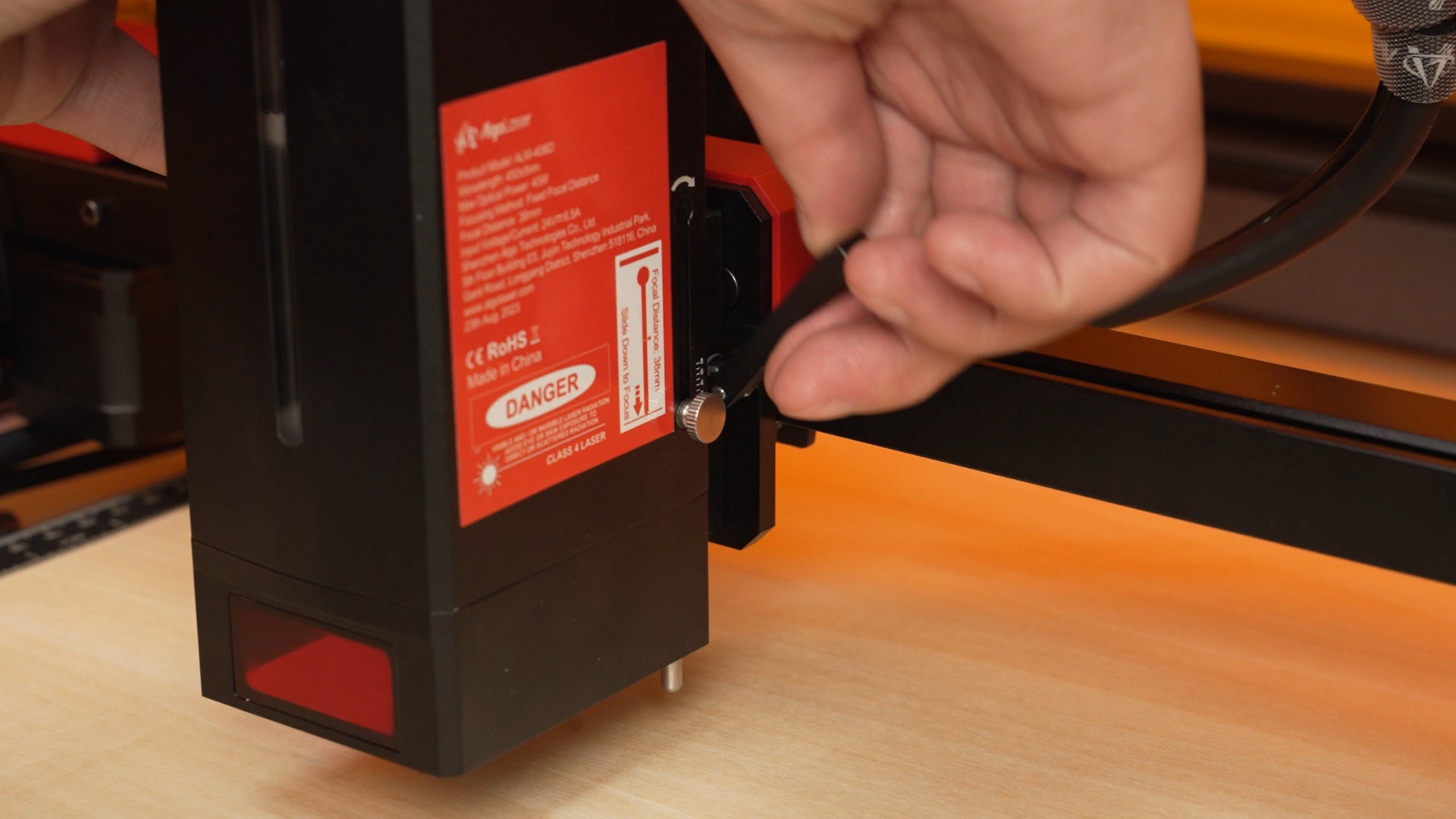

Step 2: Adjust the Focal Length of the Laser Module

Adjusting the focal length of the laser module is essential for clean cuts and engravings. The AlgoLaser Alpha MK2 makes this process straightforward with its easy-to-use focal gauge.

To focus the laser:

1. Move the laser head to the appropriate position above the plywood.

2. Place the focal gauge between the laser module and the plywood.

3. Lower the laser module until it touches the gauge. You want it to slide out easily, ensuring that the laser beam is perfectly focused for precision cutting.

Proper focal distance adjustment ensures that the laser beam remains sharp and concentrated, providing cleaner edges and deeper cuts, essential for a project like this laser-cut puzzle tree.

How to Laser Cut a Puzzle Christmas Tree 002

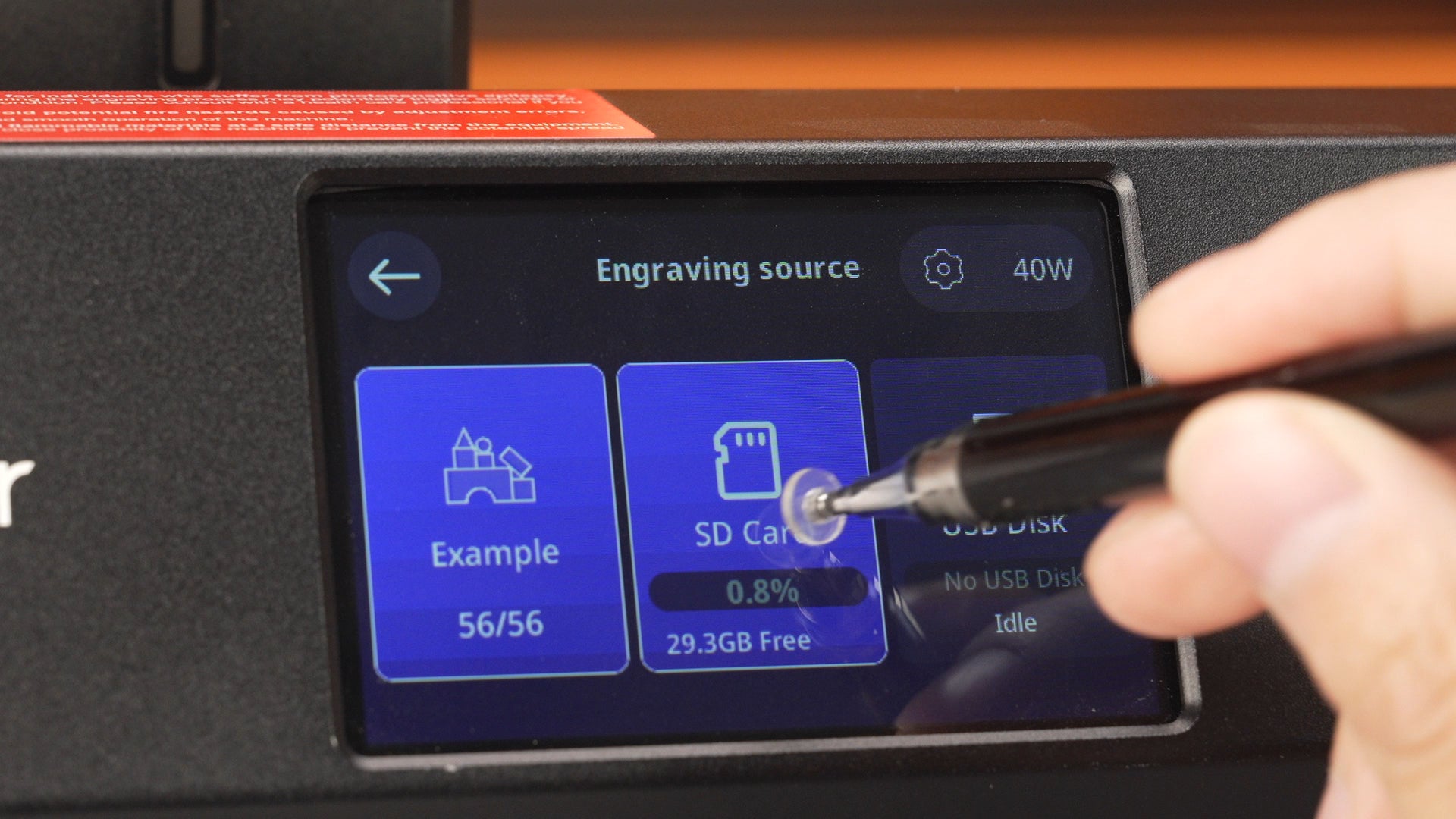

Step 3: Click on "Projects" and Then "SD Card" to Load the Cutting File

Now it’s time to load your cutting file into the AlgoLaser Alpha MK2 40W. Tap Projects on the touchscreen and select SD Card to access the G-code file you’ve prepared for this project.

If you created the puzzle tree design using LightBurn or another compatible software, make sure the file contains both engraving and cutting paths. The AlgoLaser MK2 handles multi-layer G-code files efficiently, ensuring that both cutting and engraving tasks are performed in the correct order.

Once you’ve selected your cutting file, you’re ready to move to the next step.

How to Laser Cut a Puzzle Christmas Tree 003

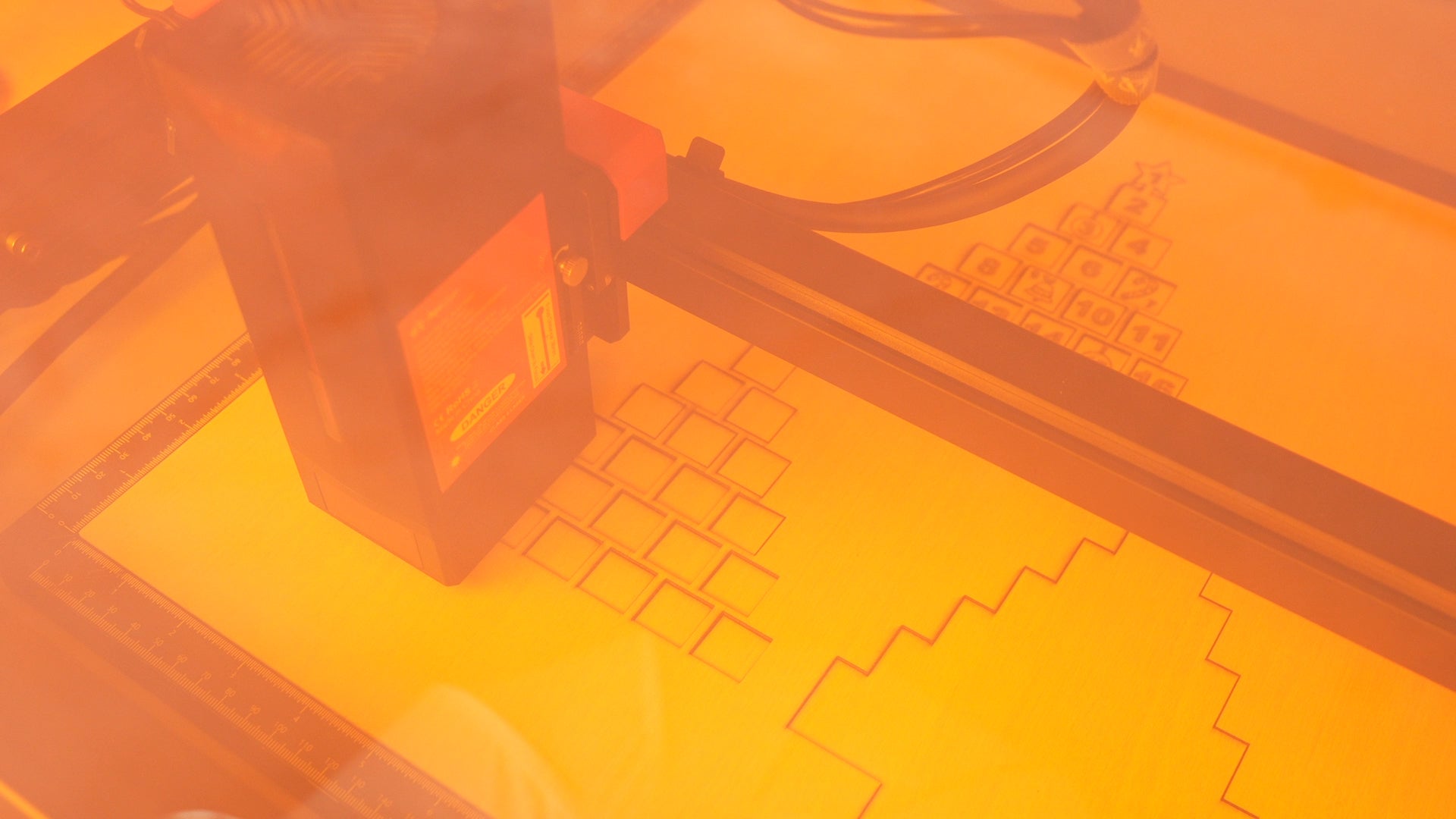

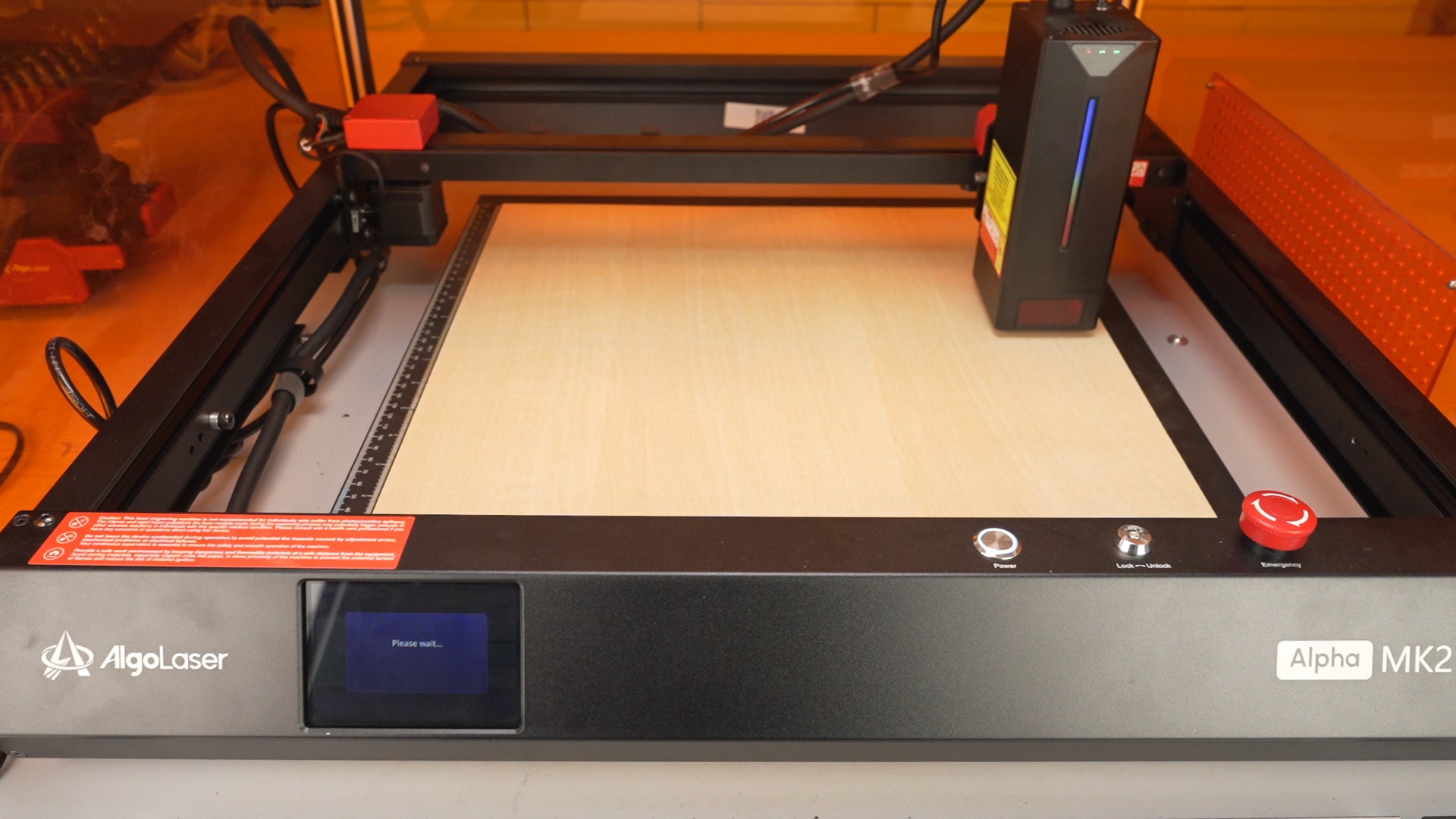

Step 4: Click the Frame Button to View the Engraving Area and Start Engraving

Before starting the laser cutting process, click the Frame button on the screen. This allows you to preview the engraving area and check that the cut paths fit within your plywood dimensions. Adjust the positioning of your material if needed to ensure perfect alignment.

Once everything looks good, hit Start to begin the laser cutting and engraving process. The AlgoLaser Alpha MK2 40W will first engrave any design elements you’ve included in your puzzle tree pattern, then it will proceed to cut out the individual puzzle pieces.

Thanks to the high-speed settings (12,000 mm/min fill speed and 900 mm/min line speed), the laser engraver will cut through the 3mm plywood in a single pass, providing a smooth and clean finish. With 100% power, the cuts will be precise, and the edges will be crisp.

How to Laser Cut a Puzzle Christmas Tree 004

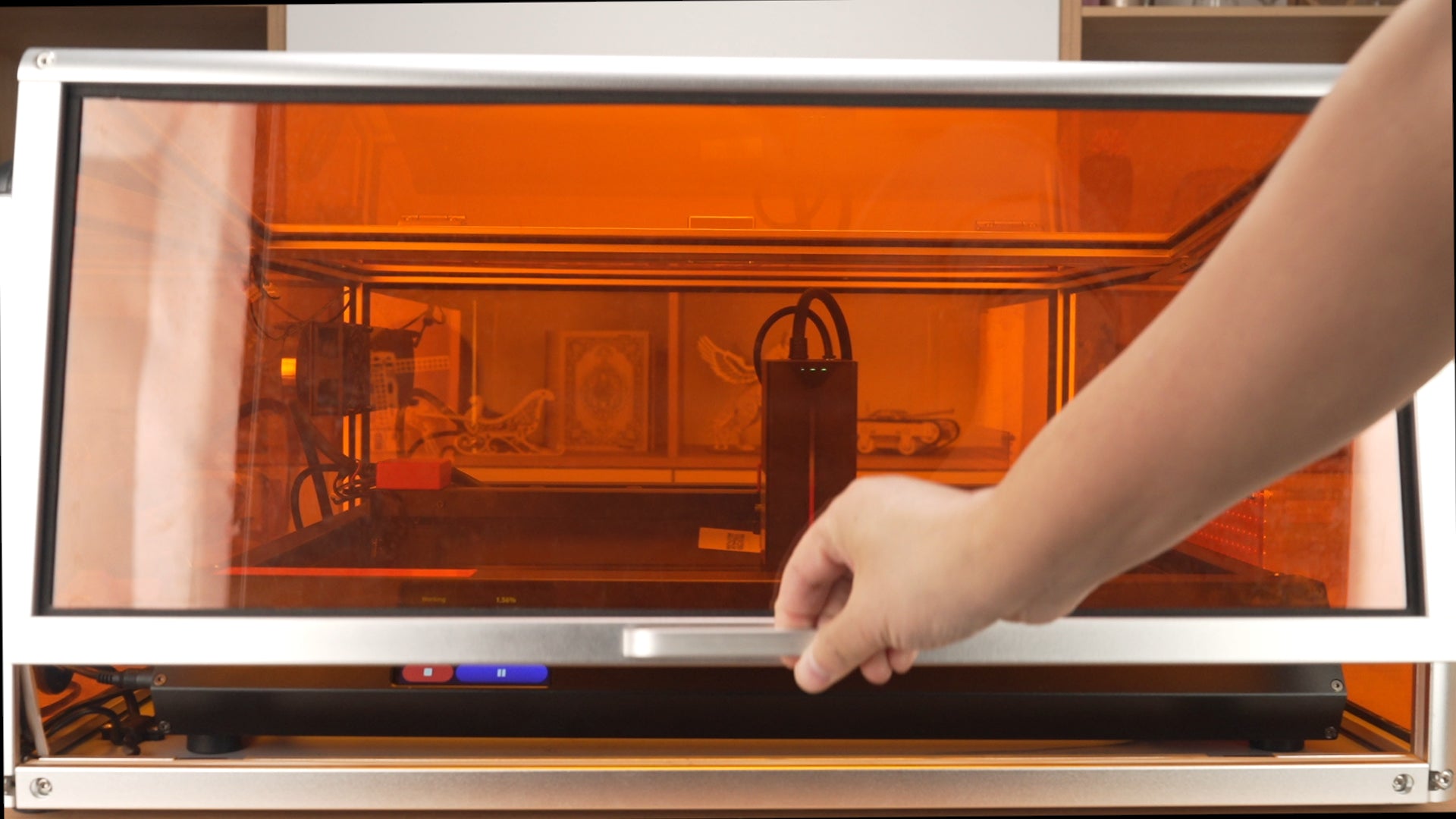

Step 5: Close the Dust Box Lid and Wait for the Machine to Finish

Once the engraving and cutting process begins, close the dust box lid to prevent any debris from interfering with the cut and to keep the area clean. The AlgoLaser Alpha MK2 uses powerful air assist to blow away smoke and debris, ensuring that your cuts stay clean and precise.

As the machine completes the cuts, you’ll see the puzzle pieces neatly separated from the plywood. Wait for the machine to finish its work and cool down before opening the dust box lid. Once done, you can carefully remove the puzzle tree pieces.

How to Laser Cut a Puzzle Christmas Tree 005

6 Frequently Asked Questions (FAQs)

1. What if my plywood doesn’t cut all the way through?

If your 3mm plywood isn’t cutting all the way through, check the line speed and power settings. You can slow down the speed to 600–800 mm/min or increase the number of passes if necessary.

2. Can I engrave designs on the puzzle pieces?

Absolutely! You can add engraving details such as patterns, text, or images to your puzzle pieces by including engraving layers in your G-code file. The AlgoLaser Alpha MK2 40W is capable of both engraving and cutting.

3. Should I use masking tape on the plywood?

Using masking tape around the edges of your plywood can help reduce scorch marks and leave you with a cleaner finish. It’s not necessary, but it’s a great option for improving the results, especially with laser cutting projects like this.

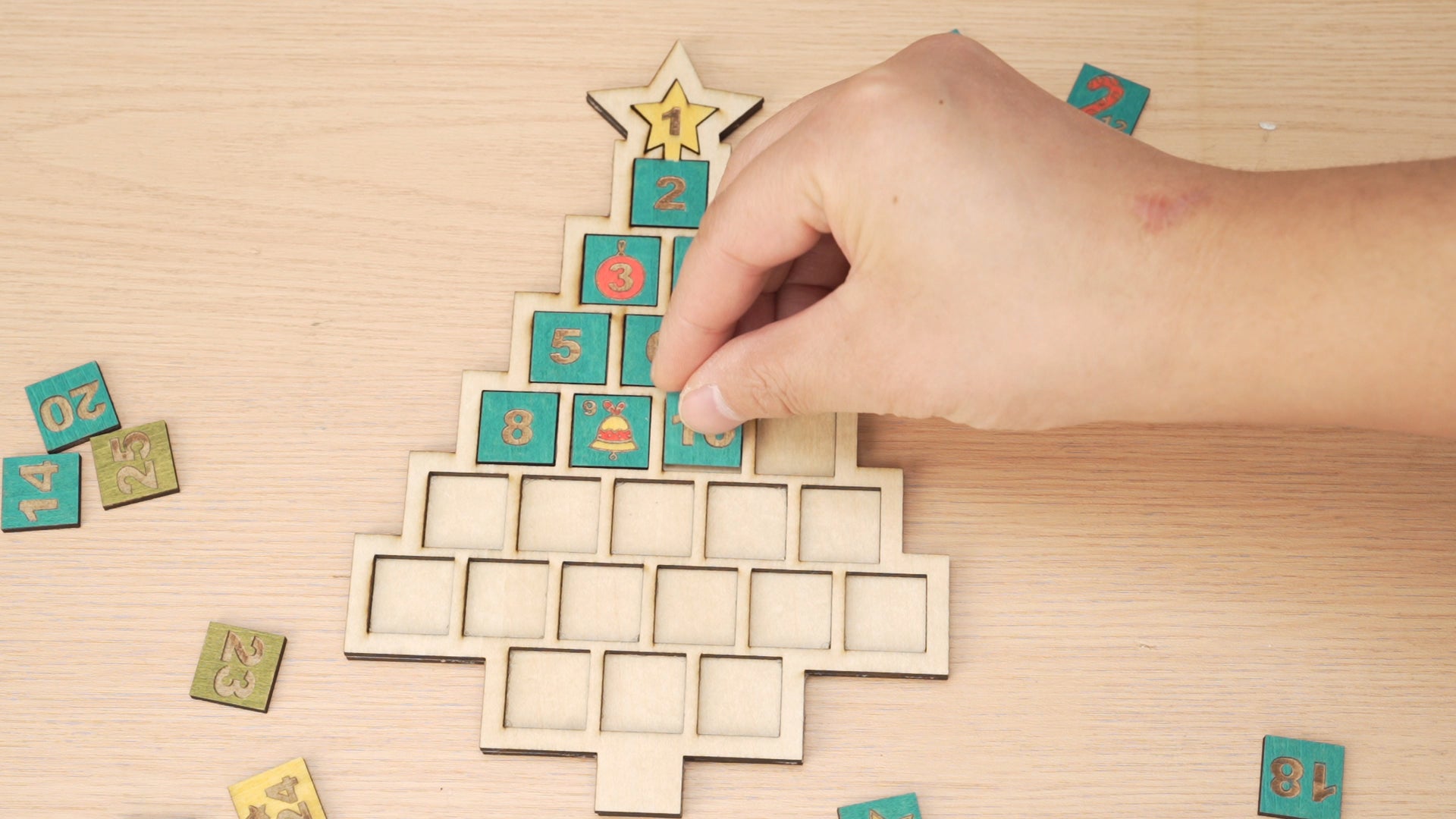

4. How do I assemble the puzzle tree after cutting?

Once your pieces are cut, carefully assemble them. You can use a small amount of wood glue to hold the pieces together. If desired, you can also decorate the puzzle pieces with a fine-tip marker or paint to add a personal touch.

5. Can I use thicker plywood for the puzzle tree?

The AlgoLaser Alpha MK2 40W can handle thicker materials, but if you're working with plywood thicker than 3mm, you may need to adjust the cutting parameters—particularly the pass count and line speed.

6. What kind of plywood is best for laser cutting?

For the best results, use laser-ready plywood that’s smooth and free of defects. 3mm birch plywood is a great choice because it provides clean cuts and is ideal for small projects like this DIY Christmas puzzle tree.
