- Alpha 22W
- Alpha 10W

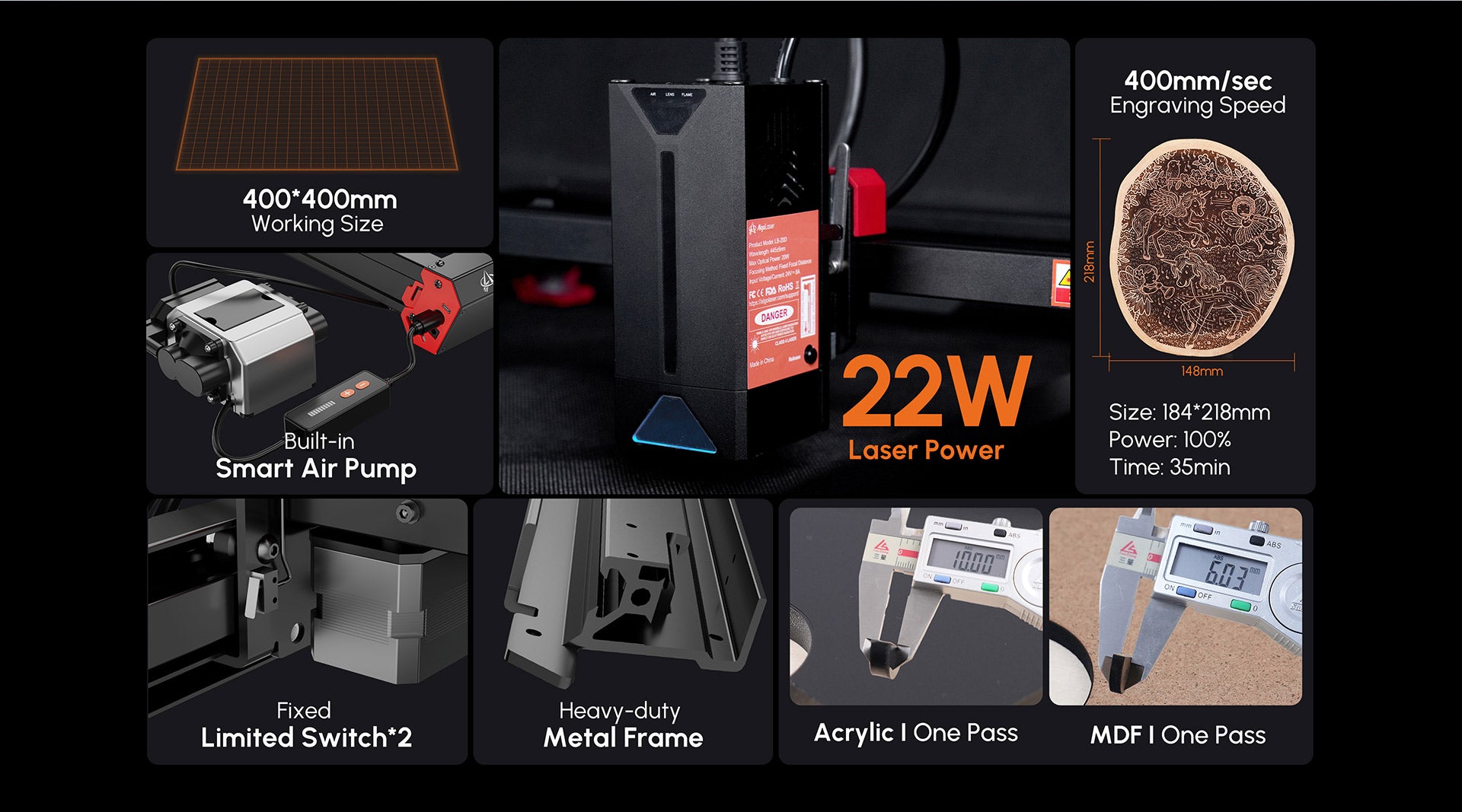

AlgoLaser Alpha 22W
The Strongest 22W Cutting MonsterGreat partner for diverse engraving
and cutting jobs.Directly Controlled through the AlgoLaser APP,LightBurn
and LaserGRBL software.

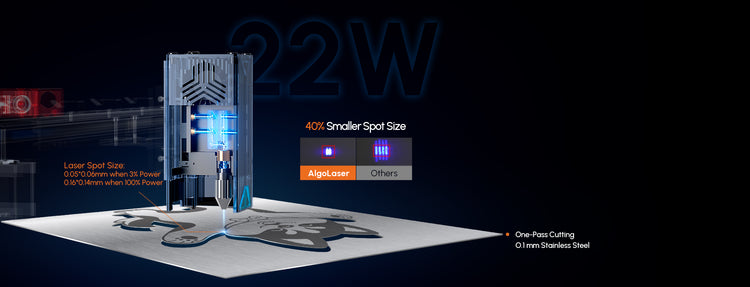

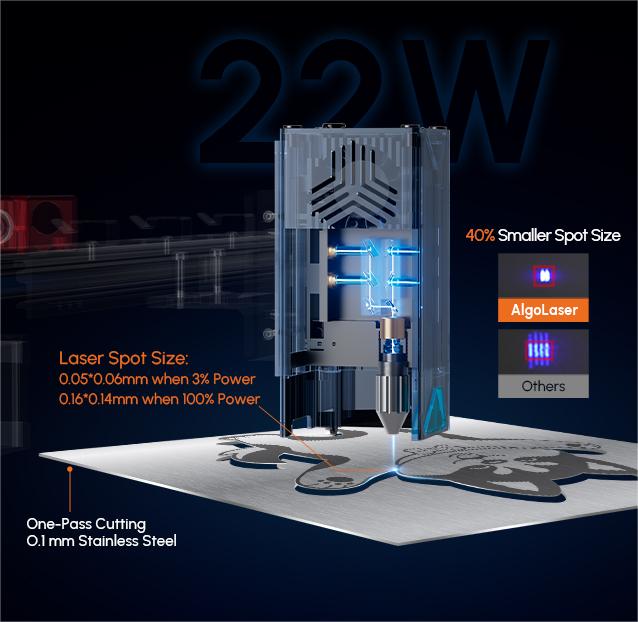

The 2nd COS Optical Technology
Adopting the advanced second-generation COS technology, the polarized beam combination improves the performance of the laser beam by 40%. Compared to regular 20W laser modules, COS technology compresses the laser spots from a rectangle to a square having a near 1:1 ratio on both low (3%) and high power (100%).
Adopting the advanced second-generation COS technology, the polarized beam combination improves the performance of the laser beam by 40%. Compared to regular 20W laser modules, COS technology compresses the laser spots from a rectangle to a square having a near 1:1 ratio on both low (3%) and high power (100%).
Artwork with 500+ Shades of Color
Make your projects stand out with vibrant and durable colors.
Incredible Cutting Ability
Super powerful 22W laser module handles various material thicknesses for cutting easily.
Super powerful 22W laser module handles various material thicknesses for cutting easily.
30mm Pine Board
10mm Black Acrylic
0.1mm Stainless Steel Plate
Faster Engraving Speed 400mm/s!
10X faster! Allowing you to complete projects in record time without sacrificing quality.
Powerful Motherboard, Self-Developed Firmware
Unparalleled Accuracy Achieved
Super Strong Wheels
The laser slide is very smooth and doesn't get stuck
Versatile Accessory Family
Risers, Rotary Chuck, Rotary Roller
Versatile Accessory Family
Risers, Rotary Chuck, Rotary Roller

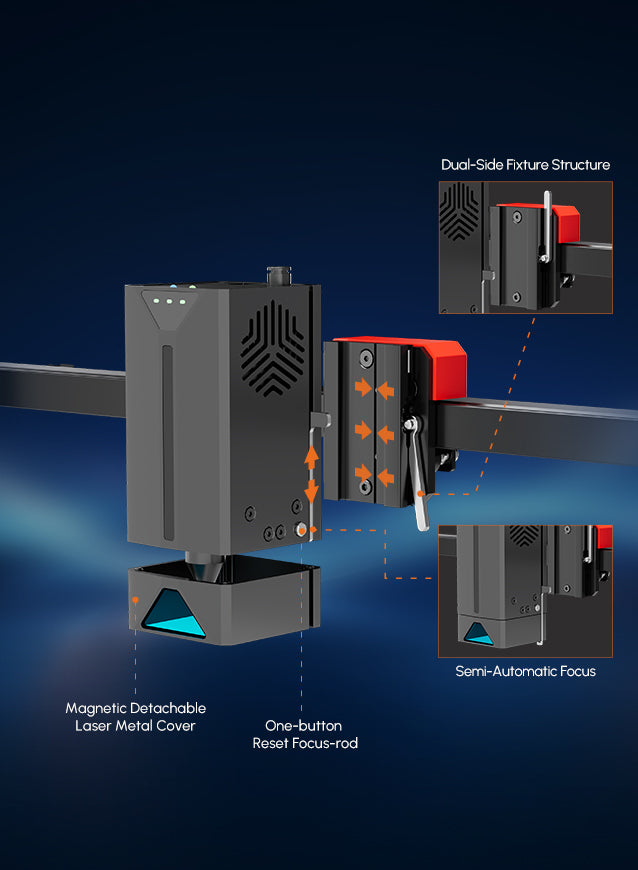

Focus mode
semi-auto focus
AlgoLaser Alpha 10W
High Accuracy for Professional Engraving
Ideal assistant for finer engraving and satisfying cutting
Finer Engraving Ability
With 0.05mm * 0.1mm laser spot,
Alpha 10W enables the engraving works to feature finer lines and more true-to-life patterns.
Meet Your Simple Cutting Request
Cut 6mm Basswood Plywood
one-pass
Cut 2mm Leather
one-pass
Cut 5mm MDF
Multiple Passes
Cut 30m Black Acrylic
Multiple Passes
Refine Every Detail

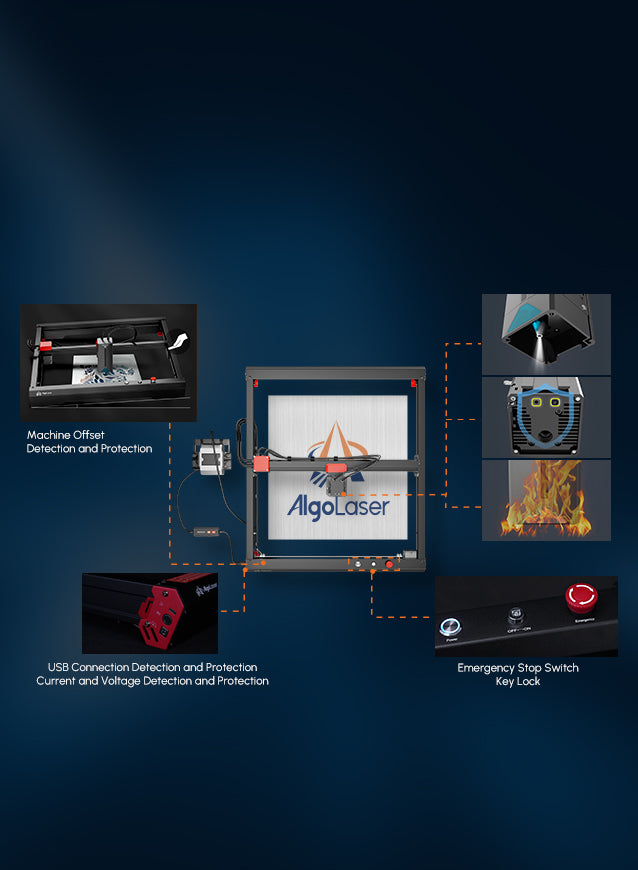

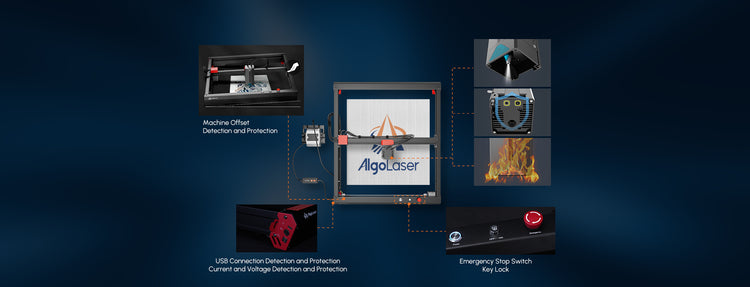

Your Safety is our Most Concern.

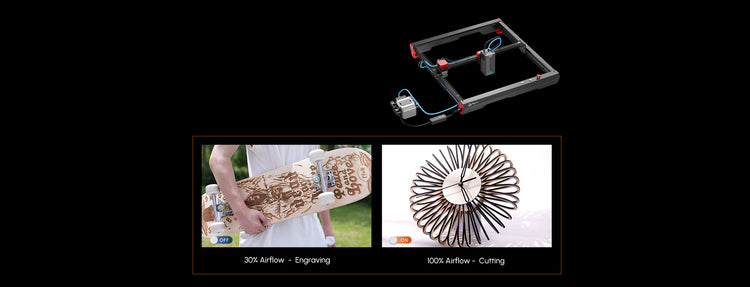

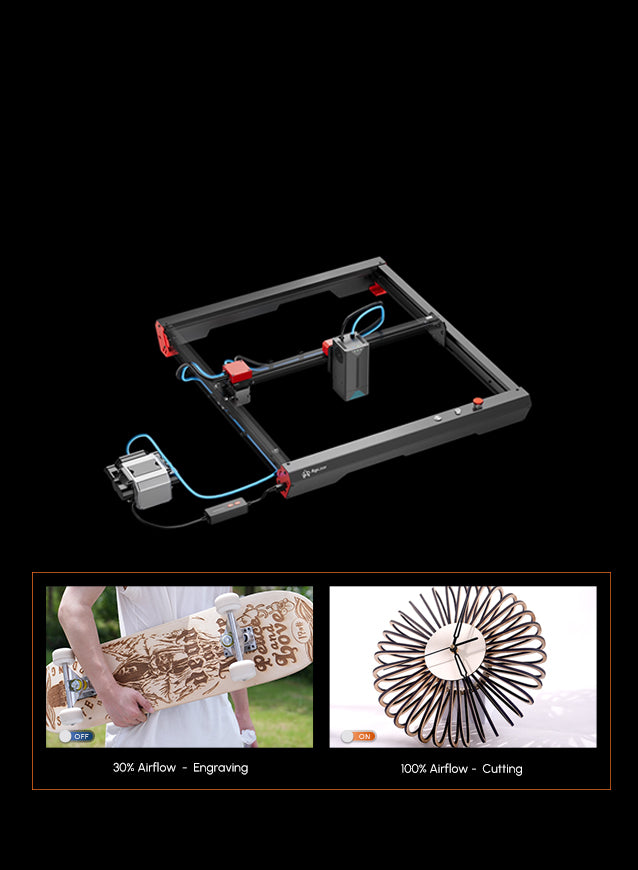

Included Plug & Play
Smart Air Pump
Pre-assembled structure and simple installation steps allow you to start the journey with ease.
Included Plug& Play Smart Air Pump
Pre-assembled structure and simple installation steps allow you to start the journey with ease.
Empowered Software for Your Seamless Workflow.
AlgoLaser App
Monitor and control your machine and access our advanced features anytime, anywhere.
Requires iOS 11.0 or above
Requires Android 7.0 or above
Lightburn
Our results speak for themselves
"The AlgoLaser Alpha 22W offers advanced engraving with features like 22W laser tech, one-pass cutting, smart connectivity, and safety protections."
"The AlgoLaser Alpha 22W is an excellent tool for businesses looking to fulfill more orders at faster speeds without compromising on precision and quality. It's ideal for applications in signage making, woodworking, craft business, small-scale manufacturing, and personalized gift creation ."
"Algolaser makes it easy to turn your ideas into real things that you can touch. This is something that both creators and customers will love. For laser enthusiasts who crave innovation, Algolaser emerges as a game-changer, driving businesses forward with precision and creativity."
"AlgoLaser Alpha 22W Laser Engraver is a cutting-edge tool that promises to take laser engraving to new heights, offering both precision and power in a compact and user-friendly package!"
"This machine is quite impressive and feels sturdy and high quality. I recommend this machine to anyone who needs a reliable laser engraver that is used frequently.
Especially small business owners and patinate makers will find the AlgoLaser Alpha very useful."
Frequently asked questions
Have questions? We’re here to help
How long does it take to assemble?
Which engraving software is supported?
LaserGRBL, LightBurn and AlgoLaser App.
What kinds of materials does Alpha cut and engrave?
Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.
Carving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.
Does it support engraving on stainless steel?
Yes, we support engraving on stainless steel with 500+ shades of color.
Product Specifications
Machine
Alpha 22W
Alpha 10W
Laser Power
22W
10W
Working Space
400mm*400mm
400mm*400mm
Max. Working Speed
Image Engraving Speed: 20000mm/min
Movement Speed: 30000mm/min
Image Engraving Speed: 20000mm/min
Movement Speed: 30000mm/min
Laser Source
Diode Laser
Diode Laser
Laser Spot
Spot Size at Full Power: 0.16*0.14mm
Spot Size at 3% Low Power: 0.06*0.05mm
0.05mm*0.1mm
Laser Head Life
>10000 Hours
>10000 Hours
Laser Wavelength
455±5nm
455±5nm
Support File
jpg, svg, png, bmp, G code, dwg
jpg, svg, png, bmp, G code, dwg
Support Systems
Android / iOS / iPad / Windows / macOS
Android / iOS / iPad / Windows / macOS
Software
AlgoLaser APP / Lightburn / LaserGRBL
AlgoLaser APP / Lightburn / LaserGRBL
Product Size
674mm*585mm*200mm
674mm*585mm*220mm
Product Weight
5kg
4.9kg
Input Voltage
100-240~50/60Hz
100-240~50/60Hz
Output Voltage
24V6A
24V5A
Security Certification
FCC / CE / RoHS / FDA / UL Reports
IEC60825-1/IEC60825-4
FCC / CE / RoHS / FDA / UL Reports
IEC60825-1/IEC60825-4
Learn More About Alpha
Alpha Cutting performance
Best One-Pass Cutting Material and Thickness
10mm Birch Plywood
12mm Basswood Plywood
5mm Eucalyptus plywood
30mm Pine Board
15mm Paulownia Plank
10mm White Oak
5mm MDF
10mm Black Acrylic
3mm Yellow Acrylic
5mm Red Acrylic
3mm Gray Cardboard
0.17mm Stainless Steel Plate
10mm Bamboo
Max Cutting Thickness
12mm Birch Plywood / 3
20mm Basswood Plywood / 15
15mm Eucalyptus plywood / 6
20mm Paulownia Plank / 3
45mm Black Acrylic / 15
8mm Green Acrylic / 6
10mm Red Acrylic / 6
12mm MDF / 6
6mm Gray Cardboard / 2
20mm White Oak / 5
Alpha Video
Algolaser Alpha 22W Laser Engraver Tutorial
How to upgrade AlgoLaser Alpha firmware
AlgoLaser Alpha 22W Assembly Video Guide
22W Alpha unboxing | Check what you will get
How to Connect AlgoLaser Alpha with Lightburn to Engraving and Cutting
How to Connect Air Pump with AlgoLaser Alpha
How to Assemble the Motor Extension Shaft of AlgoLaser Alpha
How to Tighten the Belt of AlgoLaser Alpha
How to Connect AlgoLaser Alpha with Ortur YRC
How to Connect the Limit Switch of AlgoLaser Alpha
Youtube Review Videos
AlgoLaser Alpha User Stories
Please be assured that all the above videos are real using experiences of our customers. Hope these videos will give you useful information about our machines. For more details, please follow us @algolaserofficial
Faster, Smarter, Stronger.
Algolaser laser cutters combine impressive power with exceptional safety features, ensuring that anyone can easily unleash their creativity and bring their ideas to life through engraving.
Firmware Download & Support
Firmware
Firmware
Firmware is the code that is written to a memory of your AlgoLaser Motherboard. Firmware is installed directly during manufacturing, however its been constantly improved and updated. Please keep a good eye below to confirm if your machine needs to be updated.
Downloads
Destktop Computer Software
Below you will find the links to download the latest version of the software. Make sure to always use the installers from the correct source and keep your software updated
Software
Profiles
LightBurn Profile
Ready to import Lightburn Profile for AlgoLaser Delta.
1. Download file
2. In Lightburn – Click Devices in Laser Panel
3. Click Import
4. Browse to the file you downloaded.
5. Click Open
Your AlgoLaser Delta will be imported to Lightburn Devices.
Ready to import Lightburn Profile for AlgoLaser Delta.
1. Download file
2. In Lightburn – Click Devices in Laser Panel
3. Click Import
4. Browse to the file you downloaded.
5. Click Open
Your AlgoLaser Delta will be imported to Lightburn Devices.
Documentation
The Difference With Delta
Price
$799
$999
Laser Power
22W
22W
Laser Spot Size
0.16*0.14mm 100% Power
0.06*0.05mm 30% Power
0.16*0.14mm 100% Power
0.06*0.05mm 30% Power
Laser Wavelength
455±5nm
455±5nm
Focal Length
55mm
55mm
Laser Head Life Expectancy
>10000 hours
>10000 hours
Max Engraving Speed
20000mm/min
30000mm/min
Movement Speed
30000mm/min
40,000mm/min
Focus Mode
Auto/Manual
Auto/Manual
Machine Power
144W
144W
Power Supply
24V/6A
24V/6A
Motherboard Version
ALGO_LASER_
V2.1
ALGO_LASER_
V3.1
Working Area
400*400mm
440*415mm
3.5'' IPS Screen
/
✔
Offline Engraving
/
✔
RGB Indicator LightRGB
/
✔
Intergrated Air Pump
✔
✔
Connection Method
TF Card
USB C
Wifi-2.4G
TF Card
USB-A/C
Wifi-2.4G/5G
U Disk
Software Supported
LightBurn
LaserGRBL
AlgoLaser App
LightBurn
LaserGRBL
AlgoLaser App
File Format Supported
JPG
SVG
PNG
BMP
G-code
CAD
AI
CDR
DWG, etc.
JPG
SVG
PNG
BMP
G-code
CAD
AI
CDR
DWG, etc.
System Supported
Android
iOS
Windows
Mac OS
Web-based
Android
iOS
Windows
Mac OS
Web-based
Working Temperature
-15°C ~ 30°C
-15°C ~ 30°C
Product Weight
5KG
8.5KG
Product Size
X585*Y674
*Z200mm
X650*Y730
*Z175mm
Packing Weight
9.62KG
12.0KG
Packing Size
870*290*280mm（with pump）
795*720*145mm
Certification
FCC
CE
RoHS
FDA
FCC
CE
RoHS
FDA
Warranty
12 Months
12 Months
Best One-Pass Cutting
Birch plywood
Basswood plywood
Eucalyptus plywood
Pine board
Paulownia board
White Oak
MDF
black acrylic
yellow acrylic
red acrylic
gray cardboard
Stainless steel plate
Bamboo
10mm
12mm
5mm
30mm
15mm
10mm
5mm
10mm
3mm
5mm
3mm
0.17mm
10mm
10mm
12mm
5mm
30mm
15mm
10mm
5mm
10mm
3mm
5mm
3mm
0.17mm
10mm
Max Cutting Thickness
Birch plywood
Basswood plywood
Eucalyptus plywood
Paulownia board
Black acrylic
Green acrylic
Red acrylic
MDF
Gray cardboard
White Oak
Bamboo
Pinewood
12mm / 3
20mm / 15
15mm / 6
20mm / 3
45mm / 15
8mm / 6
10mm / 6
12mm / 6
6mm / 2
20mm / 5
10mm / 1
30mm / 1
12mm / 3
20mm / 15
15mm / 6
20mm / 3
45mm / 15
8mm / 6
10mm / 6
12mm / 6
6mm / 2
20mm / 5
10mm / 1
30mm / 1
Engraving/Cutting Materials
Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.
Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.
Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.
Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.
