Laser Cuted Carousel

Materials Needed

3mm Plywood

AlgoOS Laser System →

Machine Used

AlgoLaser Alpha MK2 20W Laser Engraver

Wood Cutting

Line Speed

350mm

Pass

Power

100%

How to Laser Cut a Carousel Toy with the AlgoLaser Alpha MK2 20W

Laser cutting is a fantastic way to bring creative ideas to life with precision and efficiency. In this tutorial, we will walk you through how to make a beautiful carousel toy using 3mm plywood and the powerful AlgoLaser Alpha MK2 20W laser engraver. Whether you're a beginner or an experienced maker, this guide will take you step by step through the process. Ready to create your very own custom laser-cut carousel? Let’s get started!

Step 1: Prepare the Materials

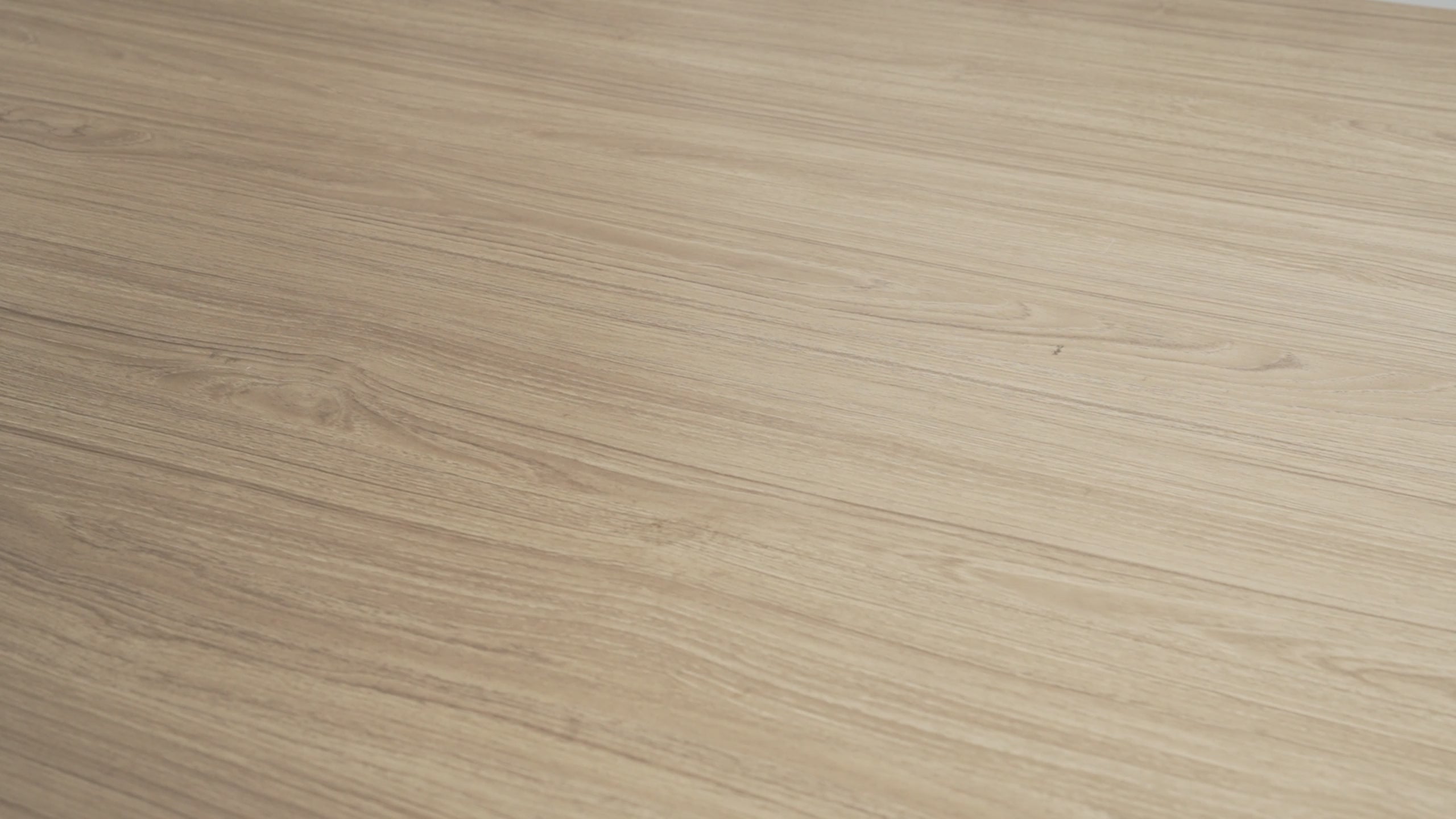

To begin, you’ll need to gather your materials. The main component for this project is 3mm plywood. Plywood cutting is an ideal application for diode laser engravers like the Alpha MK2 20W, as the laser can cut through the material with precision.

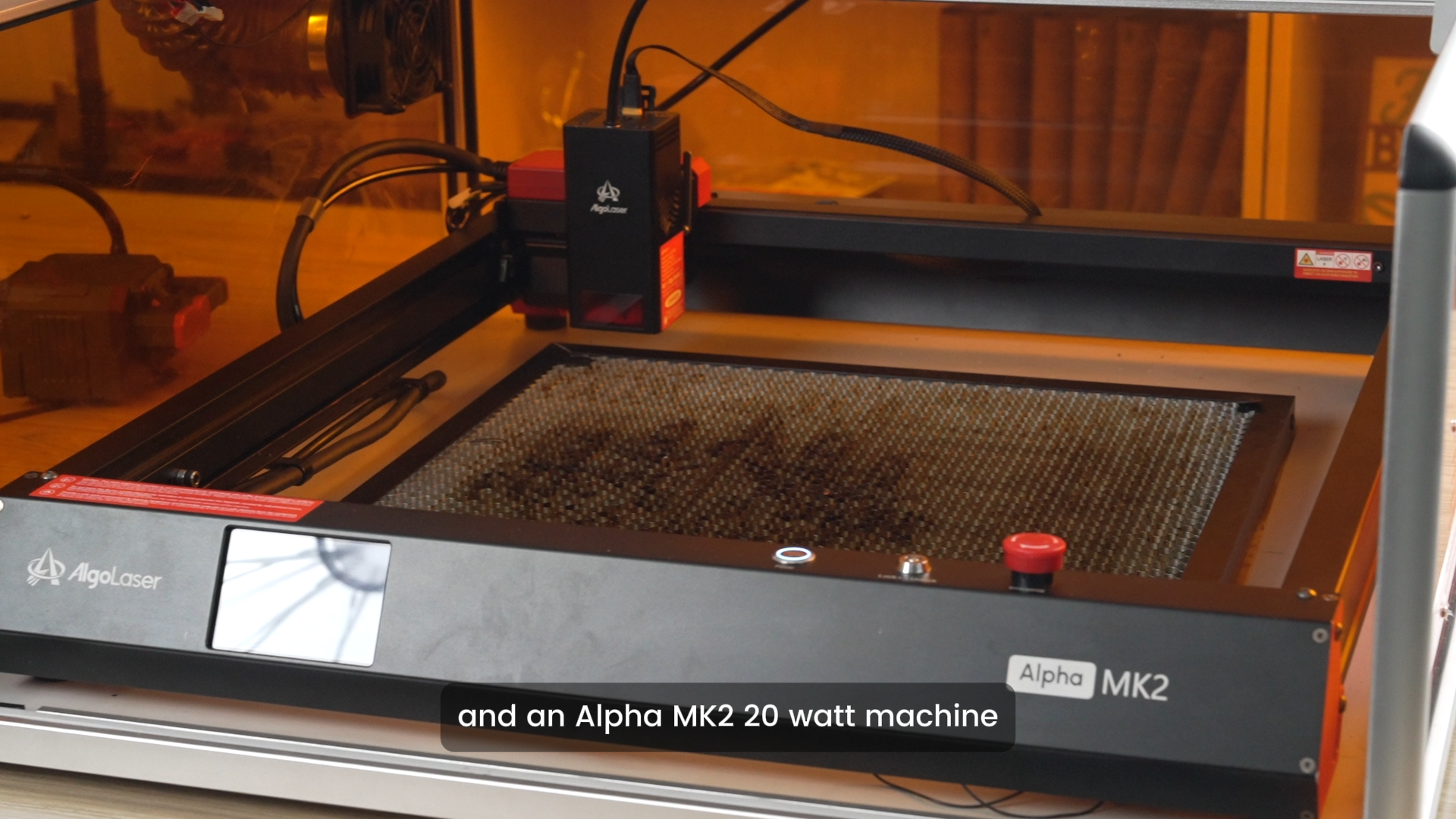

Once you have your plywood ready, place it into the working area of the Alpha MK2 20W. Make sure it is aligned properly within the laser cutting machine to ensure the engraving area is fully utilized. A clean, flat surface is crucial for accurate results. By ensuring the material is positioned correctly, you avoid mistakes and wasted material.

Step 2: Align and Focus the Laser Module

Aligning and focusing the laser module are critical steps for getting precise cuts. The Alpha MK2 comes equipped with advanced technology for laser precision, ensuring clean and accurate results.

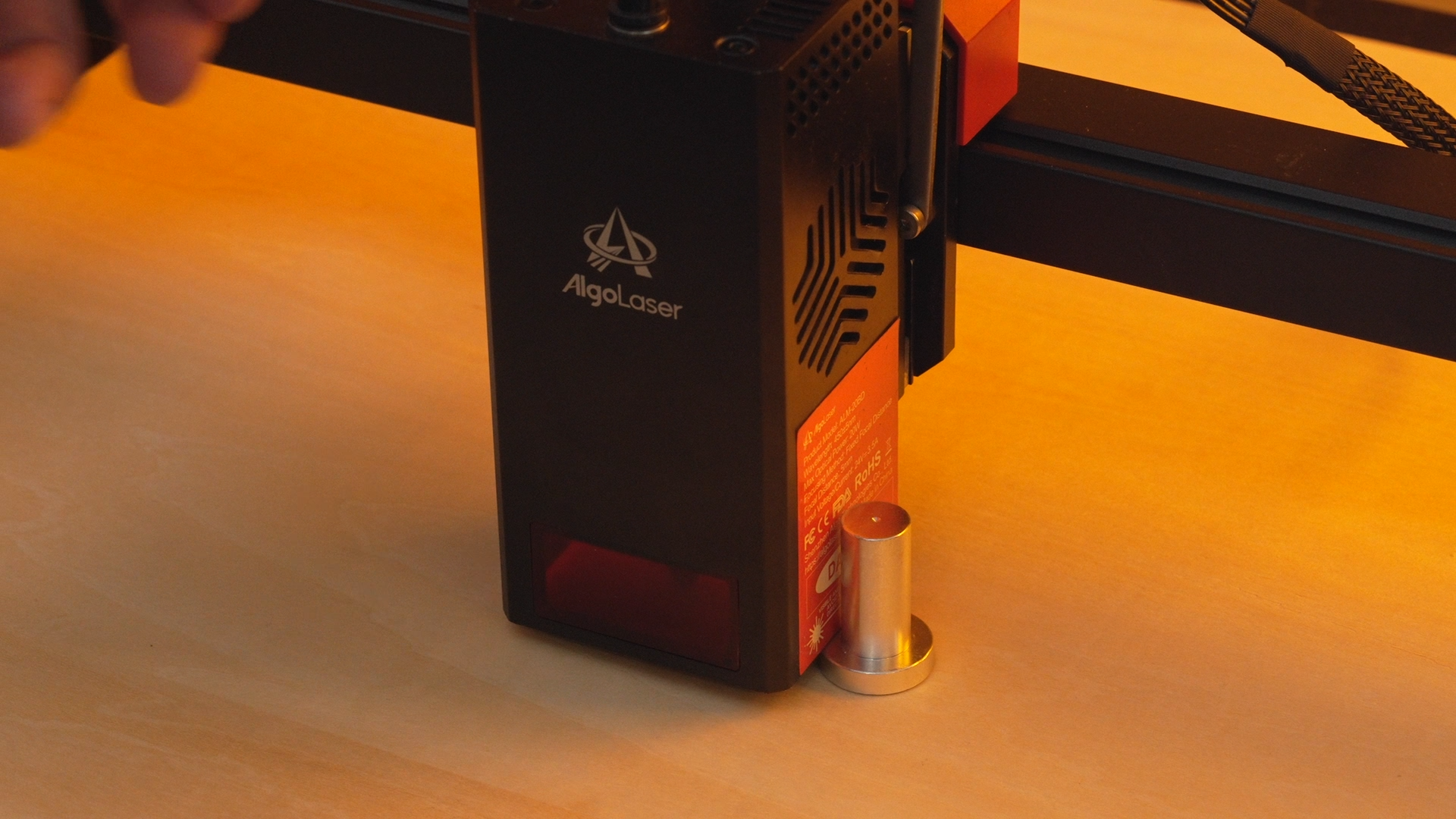

To align the laser module, move it over the plywood and position it correctly above the material. Use the provided focus tool and position it between the laser module and the plywood material. Adjust the height of the laser module until the focus tool fits perfectly between the material and the laser. This ensures the laser cutting machine is focused on the right depth for a smooth, clean cut.

A well-focused laser ensures sharp, clean edges on your carousel toy pieces, avoiding the need for post-cut cleaning or adjustments. Remember, the laser engraving technique used in this step is crucial for laser cutting wood accurately.

Step 3: Close the Dust-Proof Box

For safety and optimal results, close the dust-proof box around your Alpha MK2. The dust-proof box keeps debris and smoke inside, ensuring your laser operates at peak efficiency. It also provides a safer working environment by reducing the risk of fire or smoke inhalation.

The dust-proof box helps to contain the smoke produced during the laser cutting and engraving process, ensuring that your laser engraving machine operates smoothly and without interference.

Step 4: Set Up LightBurn and Select the Design

Now that your machine is prepped, open LightBurn, the software that powers your Alpha MK2 laser engraver. LightBurn provides you with precise control over the laser cutting settings and makes it easy to import and adjust your designs.

Once you’ve opened LightBurn, import the carousel toy design you want to engrave. This design can be an image, vector art, or custom graphic. If your design consists of multiple parts, be sure to arrange them in the software to ensure they fit within the laser engraving area.

Before moving forward, confirm that your design fits perfectly within the engraving area and is scaled correctly. LightBurn will give you a visual preview, making sure everything is aligned and ready. This is an important step, as the laser engraving software gives you full control over your cutting and engraving process.

Step 5: Start Engraving and Cutting

Once everything is set up in LightBurn, it's time to start the engraving and cutting process. Double-check the cutting parameters before proceeding:

· Cutting Speed: 350 mm/min

· Power: 100%

· Passes: 1

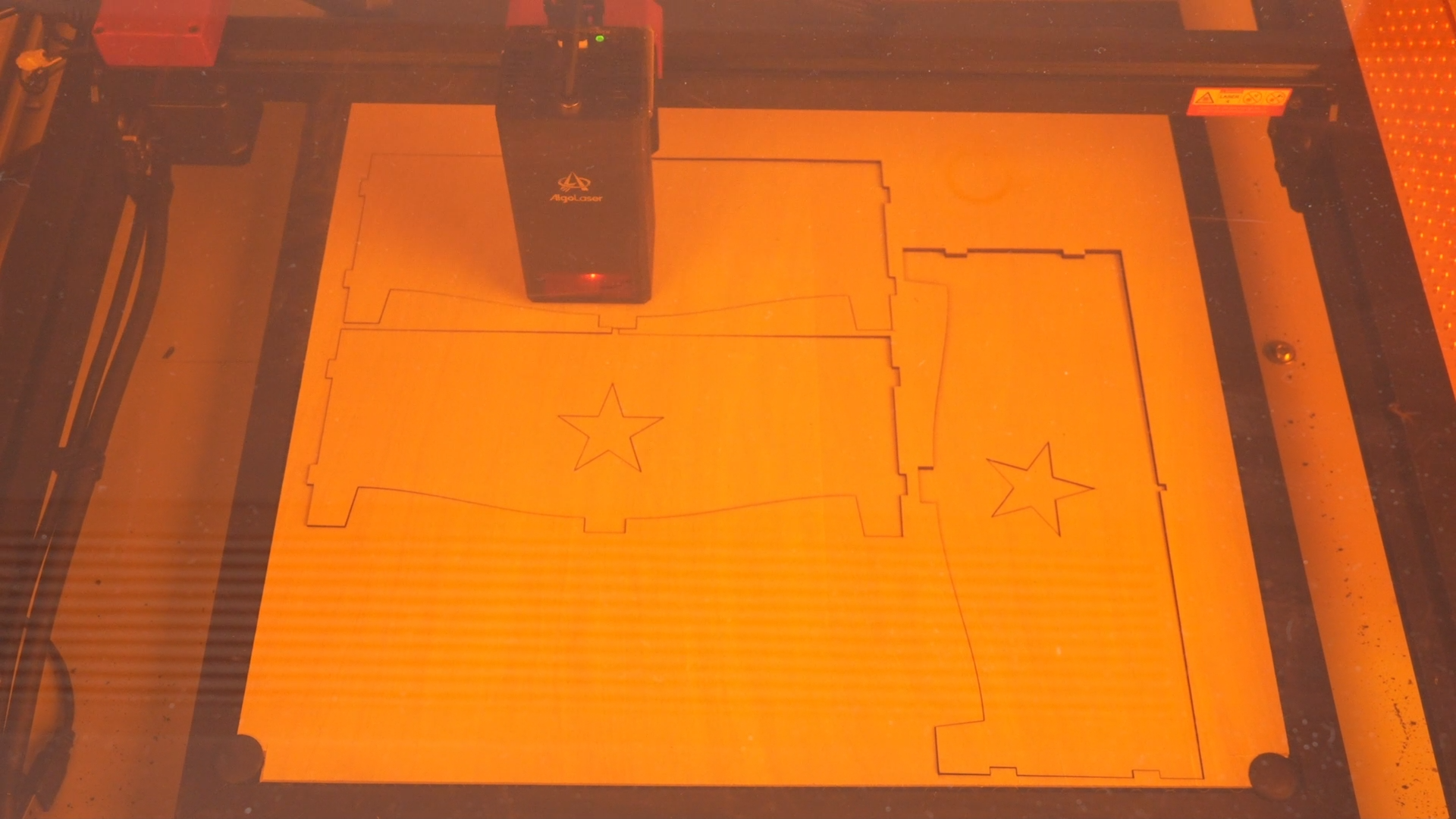

These settings are optimized for 3mm plywood and will produce clean, precise cuts. When you’re ready, click to start engraving. The Alpha MK2 20W laser engraver will begin cutting the plywood based on the design you’ve selected. The laser cutter will carefully trace the design, laser engraving and cutting through the material with accuracy.

Step 6: Assemble the Carousel

After the laser cutting and engraving process is complete, carefully remove the plywood pieces from the laser bed. You should now have all the parts needed to assemble your carousel toy.

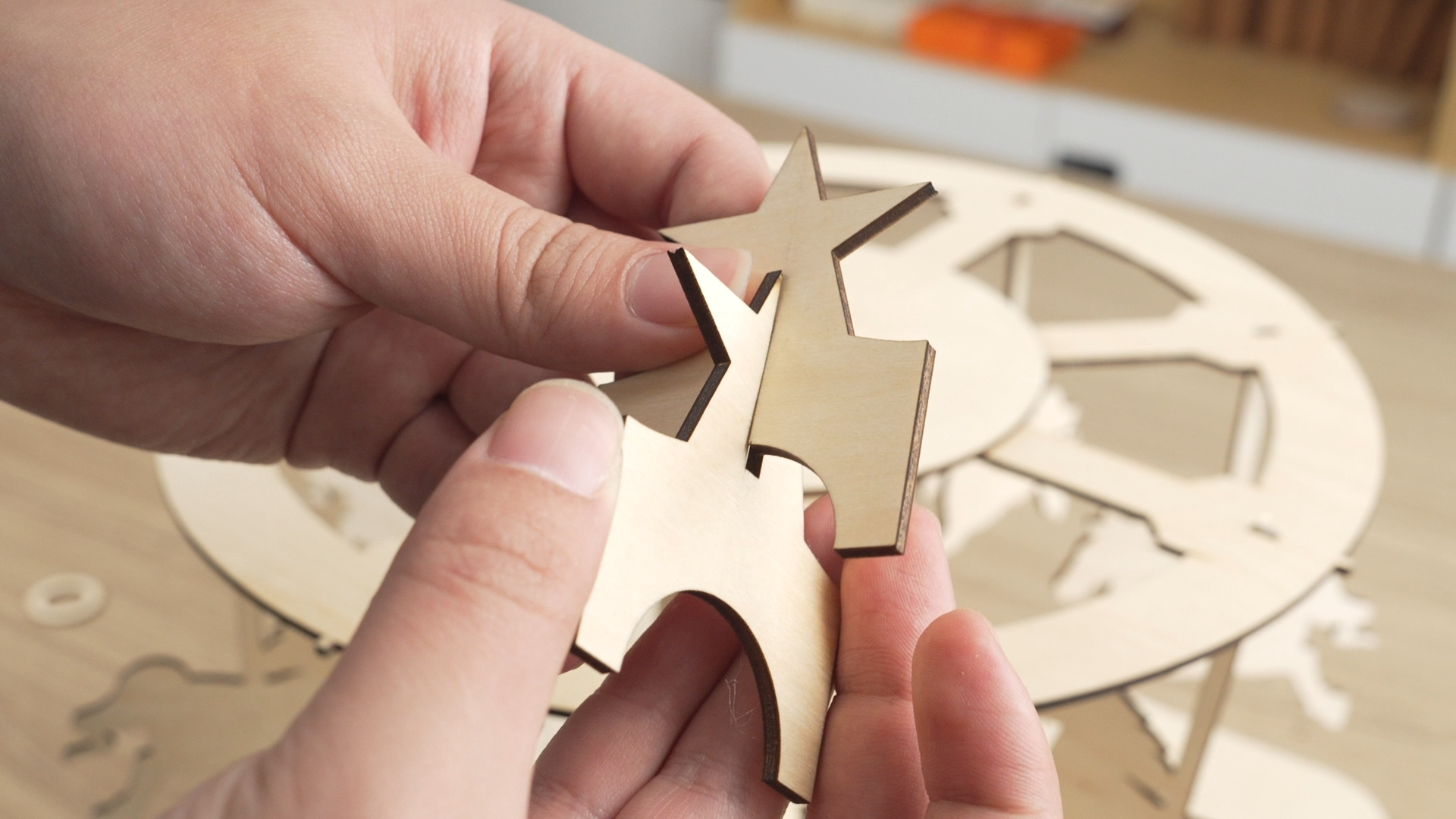

Take the pieces and start piecing them together. Depending on the design, the carousel might require glue, small pegs, or even a rotating mechanism to complete the assembly. Follow the instructions that came with the design or use your creativity to finalize the carousel. The beauty of laser-cut designs is that you can add your personal touch during assembly!

FAQs About Laser Cutting a Carousel

1. What settings should I use for cutting plywood with the Alpha MK2 20W?

· The recommended cutting parameters for 3mm plywood are:

· Cutting Speed: 350 mm/min

· Power: 100%

· Passes: 1
These settings provide the perfect balance between speed, precision, and quality.

2. Can I use thicker plywood with this setup?

· The Alpha MK2 20W laser engraver can cut through plywood that is up to 5mm thick. If you are cutting thicker materials, you may need to adjust the speed and power settings to ensure a clean cut. For thicker plywood, try reducing the speed or making multiple passes to achieve the best result.

3. Do I need to use a dust-proof box?

· Yes, the dust-proof box is highly recommended. It contains the debris and smoke, improving the overall laser cutting quality and keeping the workspace cleaner. It also provides a safer environment by reducing the risk of fire or smoke inhalation.

4. Can I use other materials besides plywood?

· Absolutely! The Alpha MK2 20W is versatile and can cut and engrave various materials, including acrylic, leather, fabric, and even thin metals. Be sure to adjust your settings based on the material type and thickness.

5. What is the best way to assemble the carousel after cutting?

· Assembling the carousel toy involves connecting the individual pieces that have been laser cut by the machine. Depending on the design, you might need glue or small fasteners to hold the parts together. If the carousel includes a rotating mechanism, ensure that all parts are aligned and move smoothly.

Conclusion

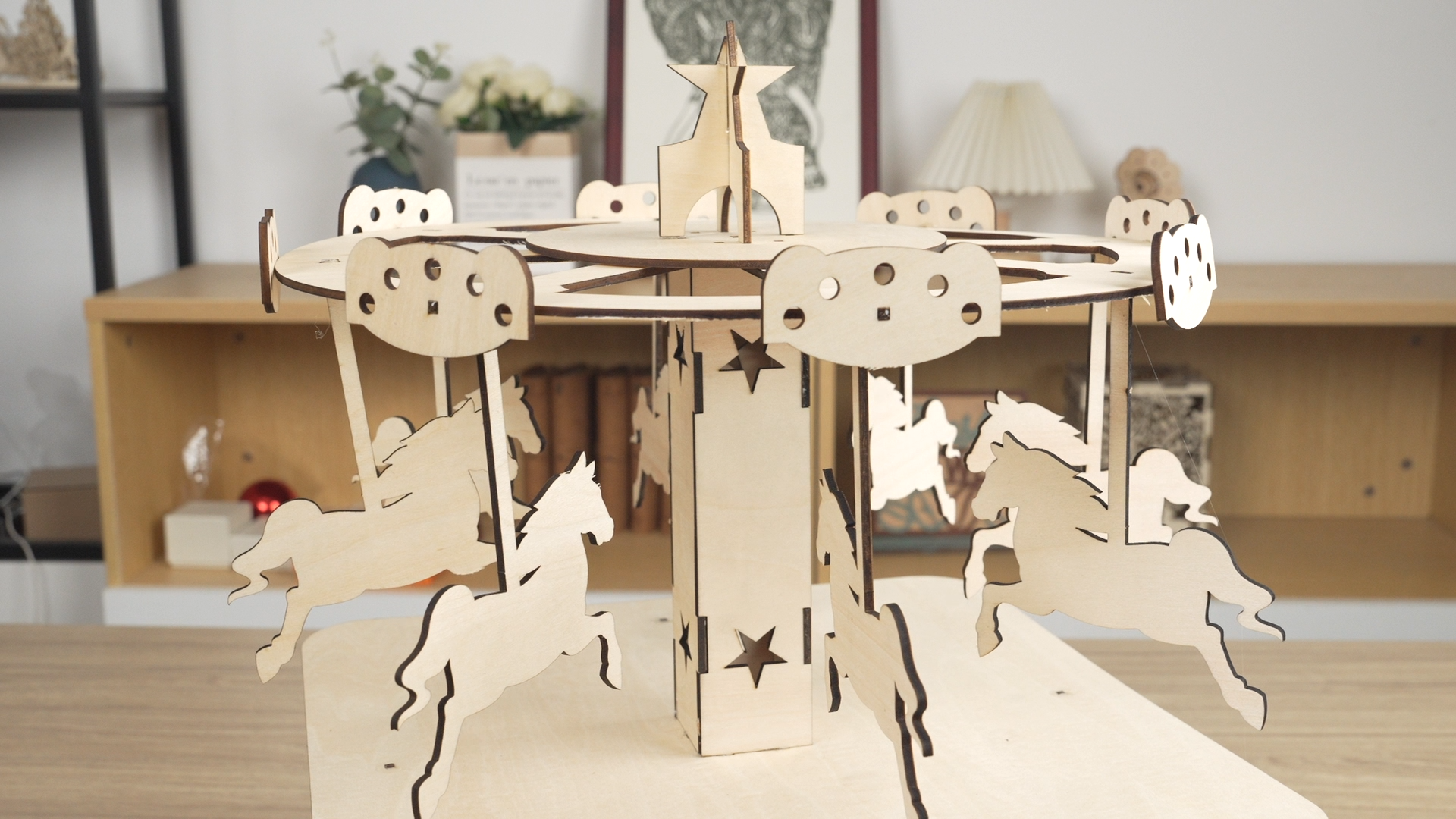

Laser cutting with the AlgoLaser Alpha MK2 20W laser engraver is a powerful and creative way to bring intricate designs like a carousel toy to life. By following the simple steps in this guide, you can make your own custom laser-cut carousel quickly and easily. Enjoy the process, and let your creativity shine with DIY laser projects!
