AlgoLaser Delta 40W Diode Laser EngraverAlgoLaser Delta 40W Diode Laser Engraver
$1,899.00$1,599.00

Pay in 4 interest-free installments with

Pay in 4 interest-free installments with

USEUUKAU
Delta 40W+LightburnBasic KitPro KitSafe Kit
  • Local warehouse Free Delivery

    Free and Fast

  • After-Sale Service

    Lifetime Tech Support

  • Worry-Free Trial

    30-Day easy returns

  • Warranty

    1-Year warranty policy

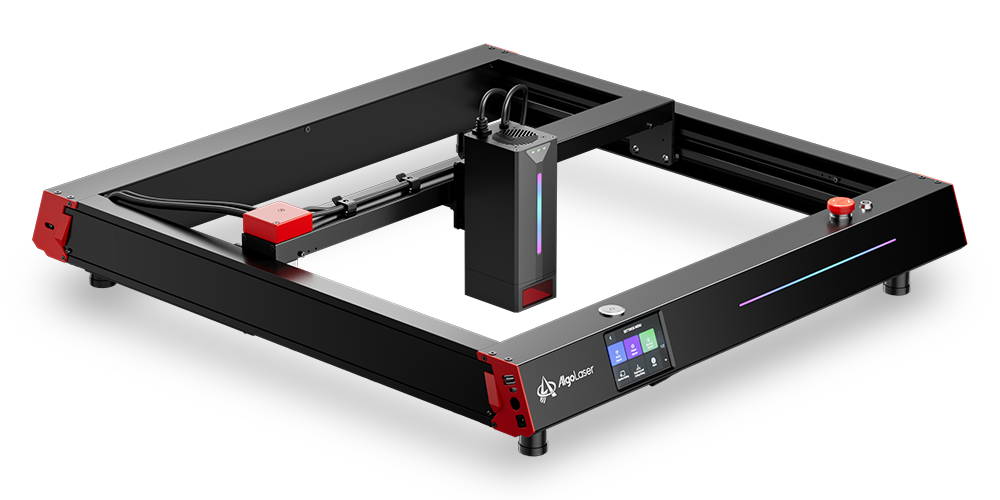

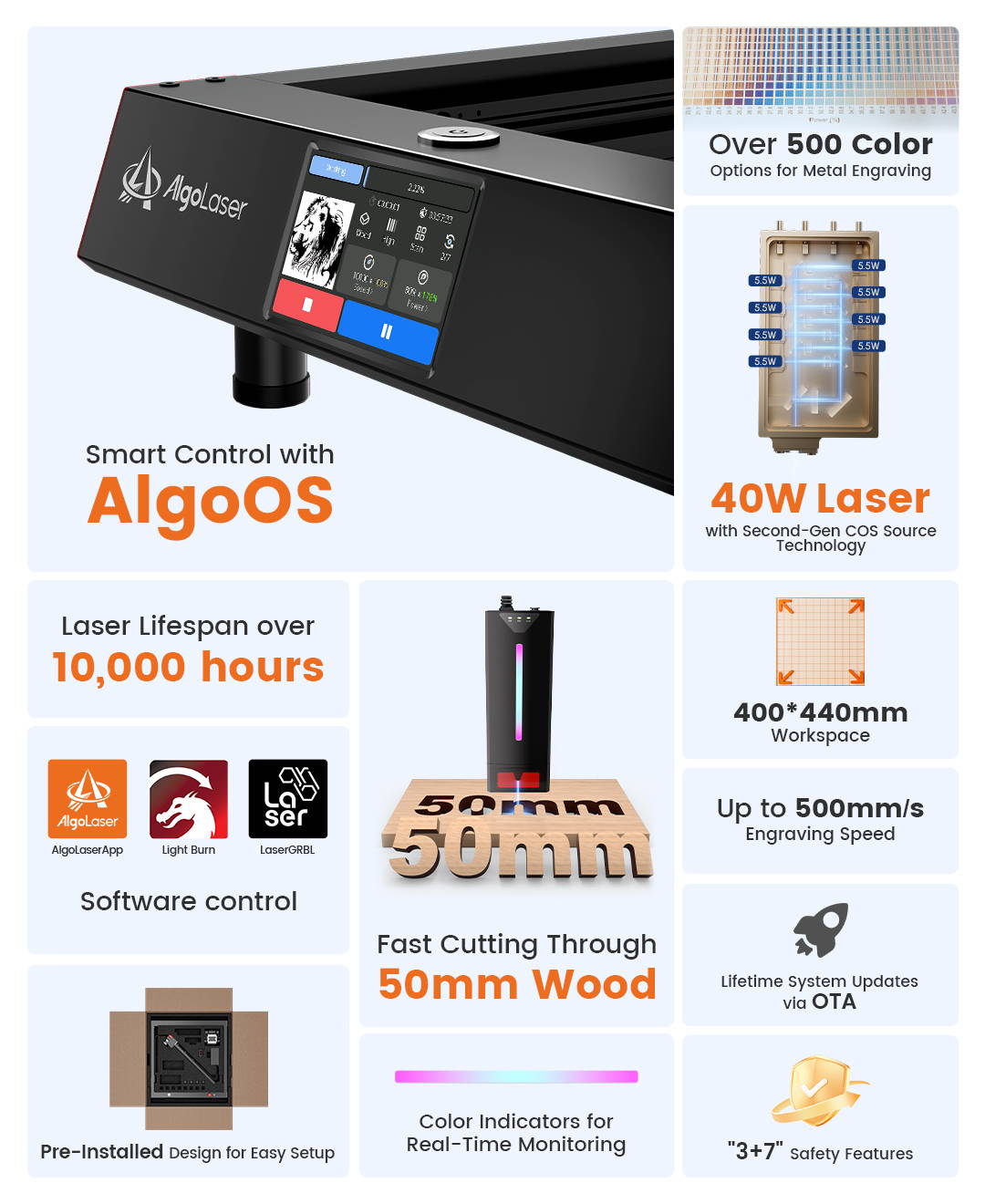

AlgoLaser Delta 40W

Smart Laser Cutter and Engraver for Woodworking

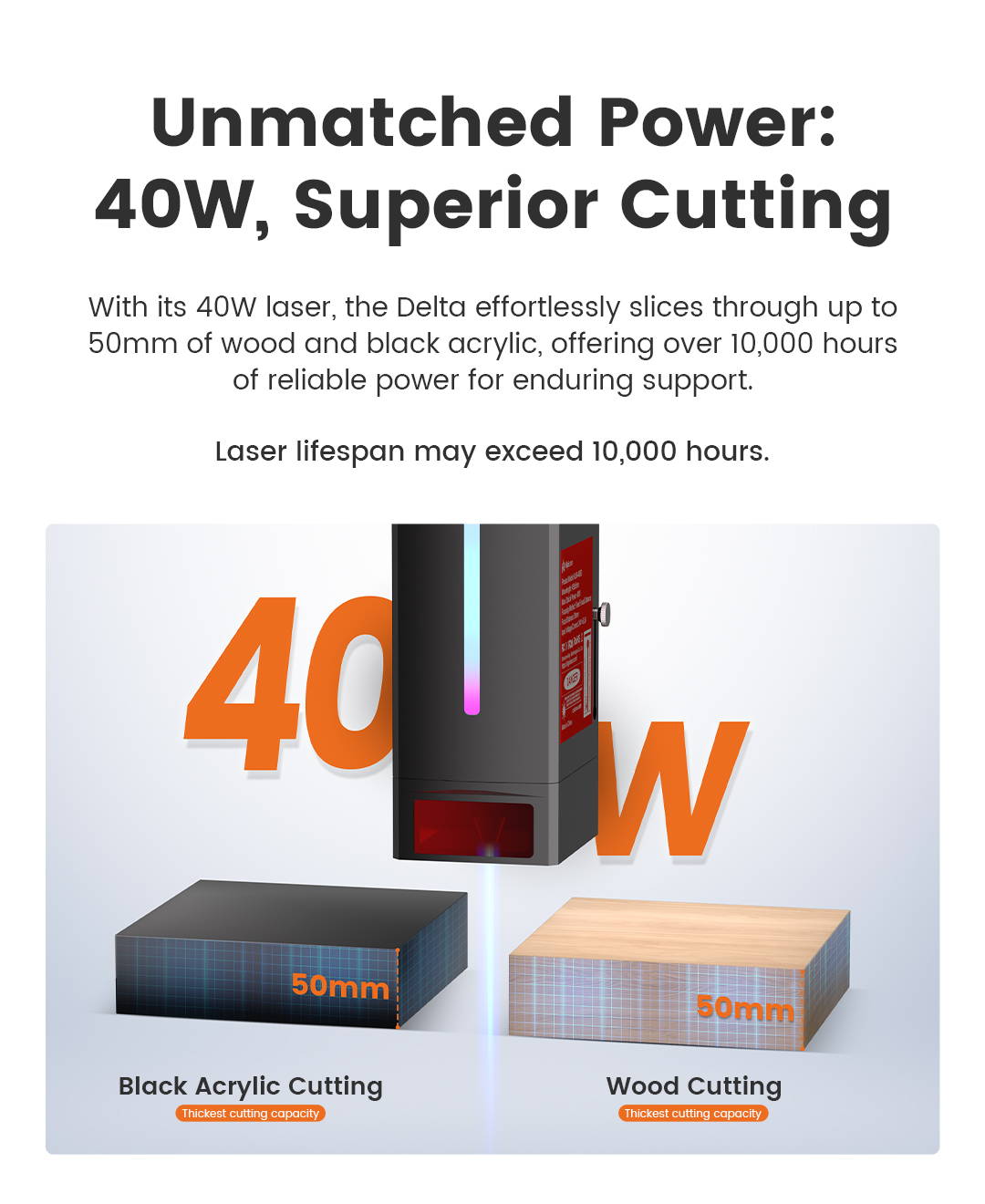

Incredible Cutting Ability

Powerful 40W laser module handles various material thickness for cutting easily.

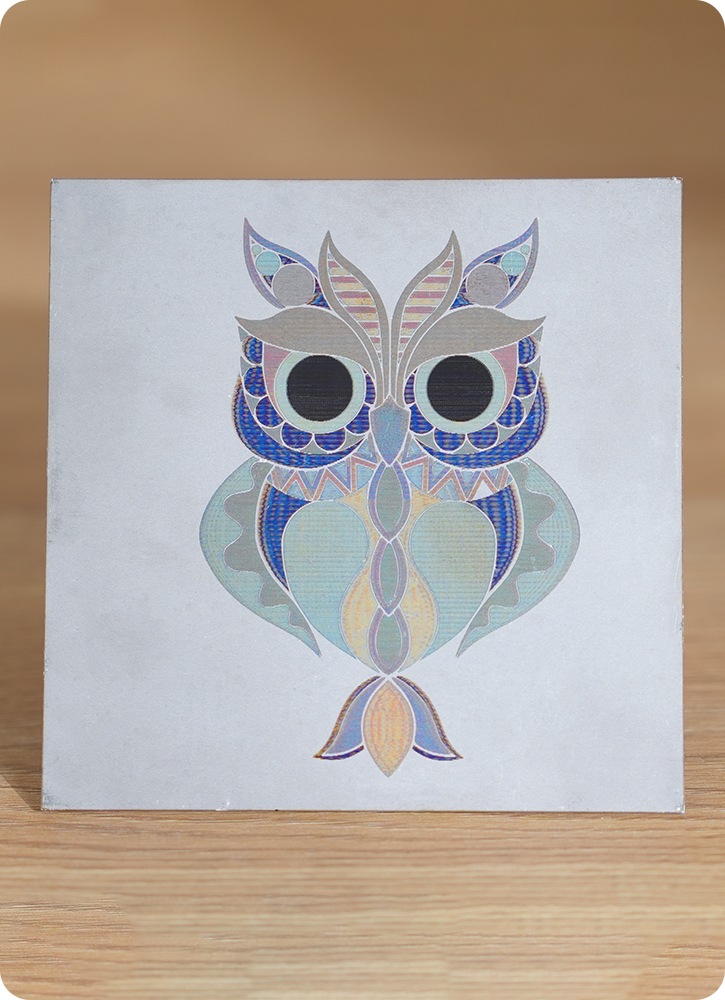

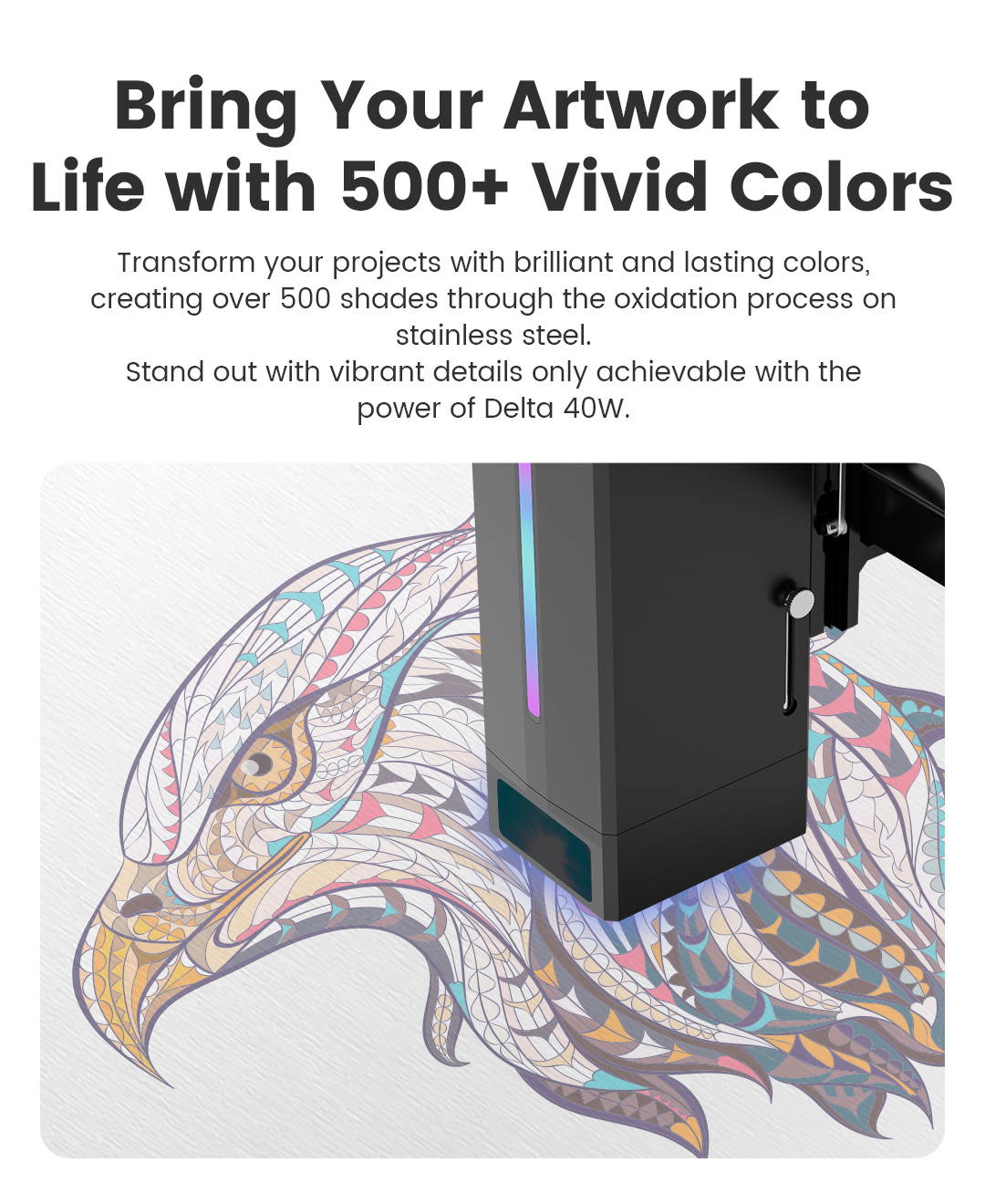

Enrich your Artwork with 500+ Shades of Color

Make your projects stand out with vibrant and durable colorscreated by oxidation of stainless steel material while engraving.

The 2nd Generation COS Optical Technology

Adopting the advanced second-generation cos technology.The polarized beam combination compresses eight powerful5w lasers into a single 40w laser beam.And 75mm focal length enables it to be smaller laser spot andstronger cutting ability.

Faster Speed, Higher Efficiency

Up to 500mm/s engraving speed significantly improves your work efficiency.

Material: Pine

Thickness: 15mm, length: 100mm

Mode: Cutting

Delta 40W: 55 sec

Delta 20W: 1 min 50 sec


Delta 40w: 55 sec


Delta 22W: 1 min 50 sec

Recovery After Interruption

During the engraving process, if there is a temporary power fallure, it ensures that the xy-axis is absolutely positioned at the power-off position, and the engraving can be resumed immediately after power-on.

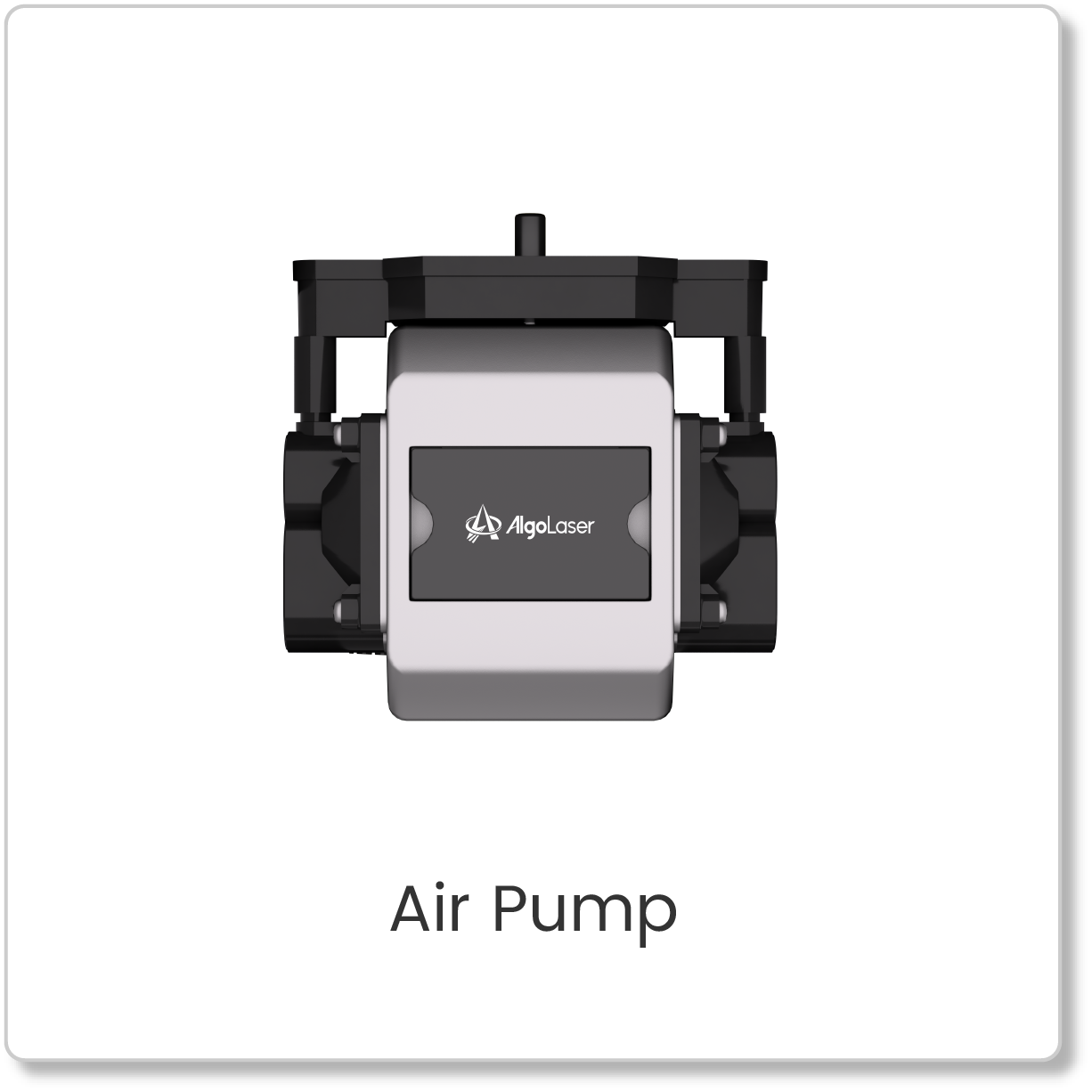

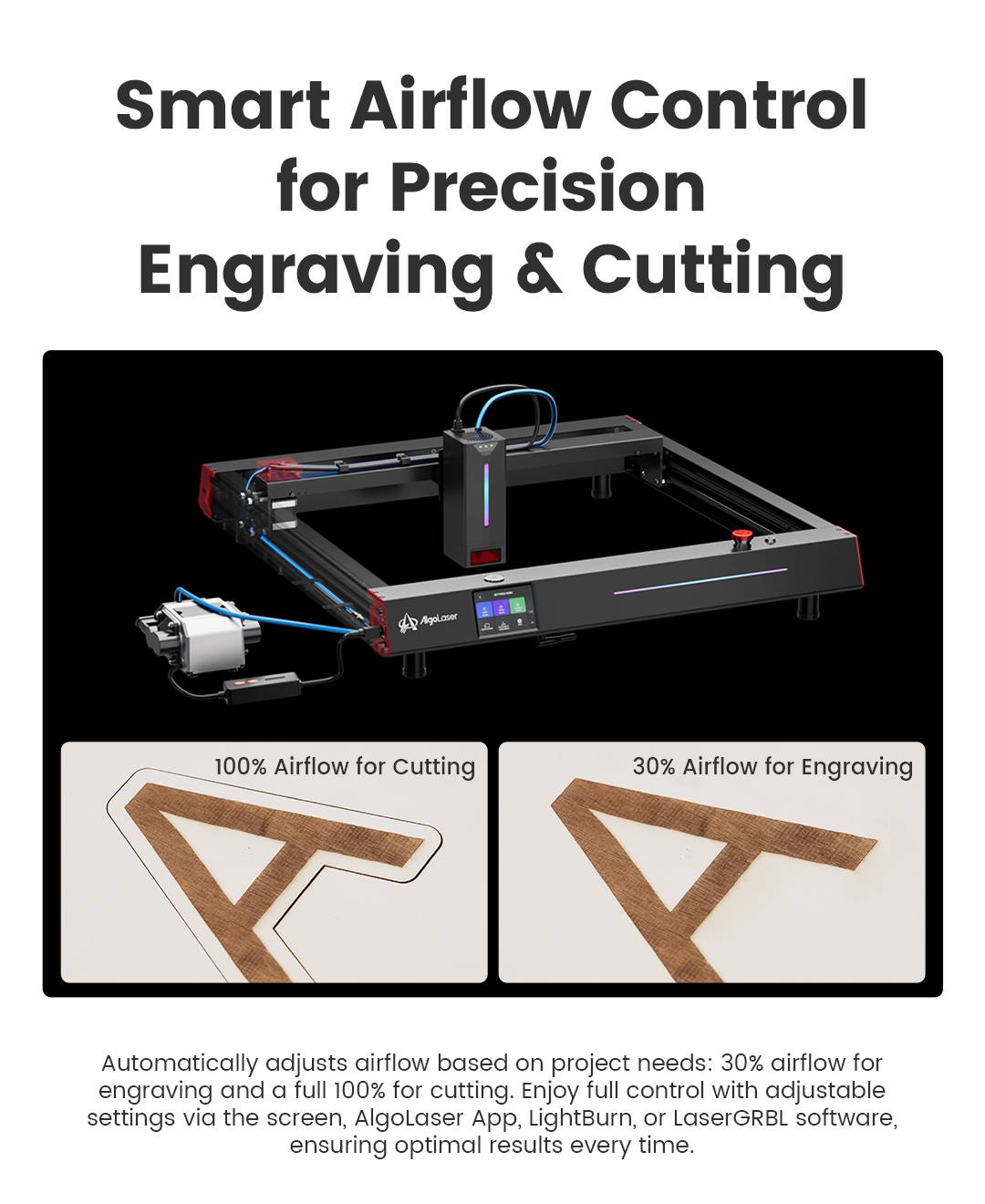

Plug & Play Smart Air Pump

Adjust the airflow automatically based on the speed and power. Directly Control through the AlgoLaser app, LightBurn and LaserGRBL software.

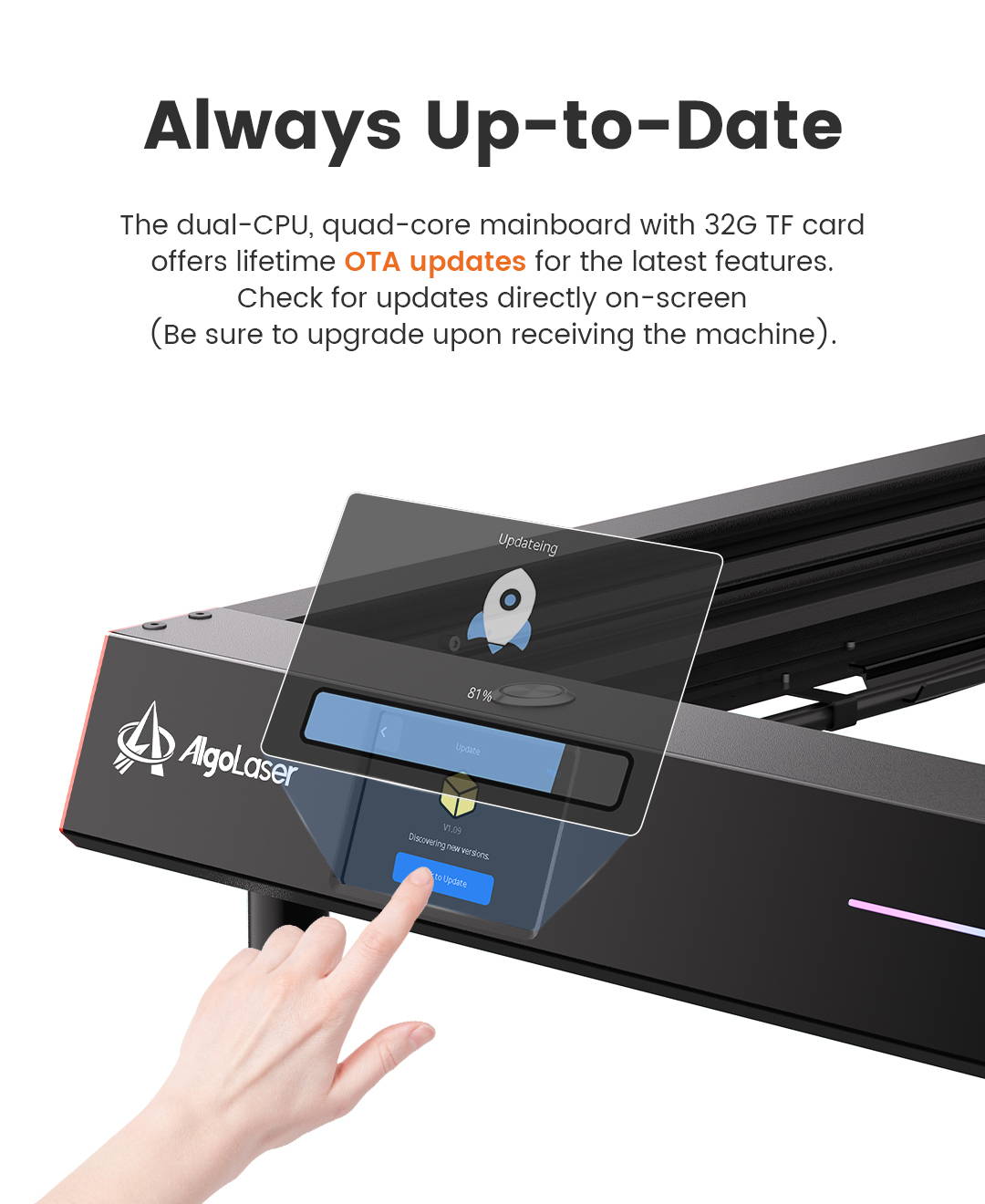

Much More Powerful Motherboard

Remarkable Compatibility

Supported Devices Operation Systems

Mobile Phone: Android & ios

Computer: Windows, Mac os and Web

Supported Softwares:

LightBurn, LaserGRBL, AlgoLaser APP (Mobile phone Only)

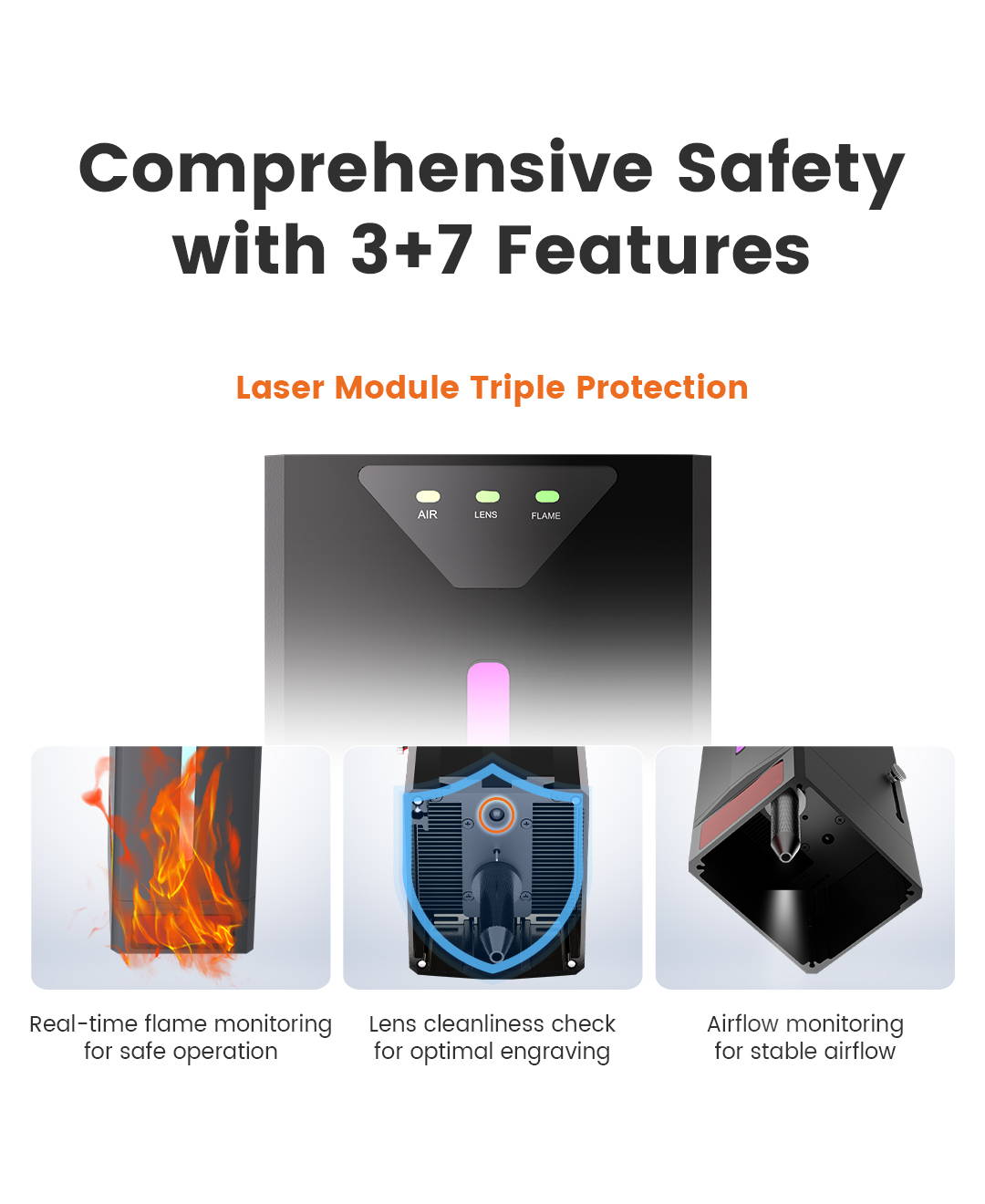

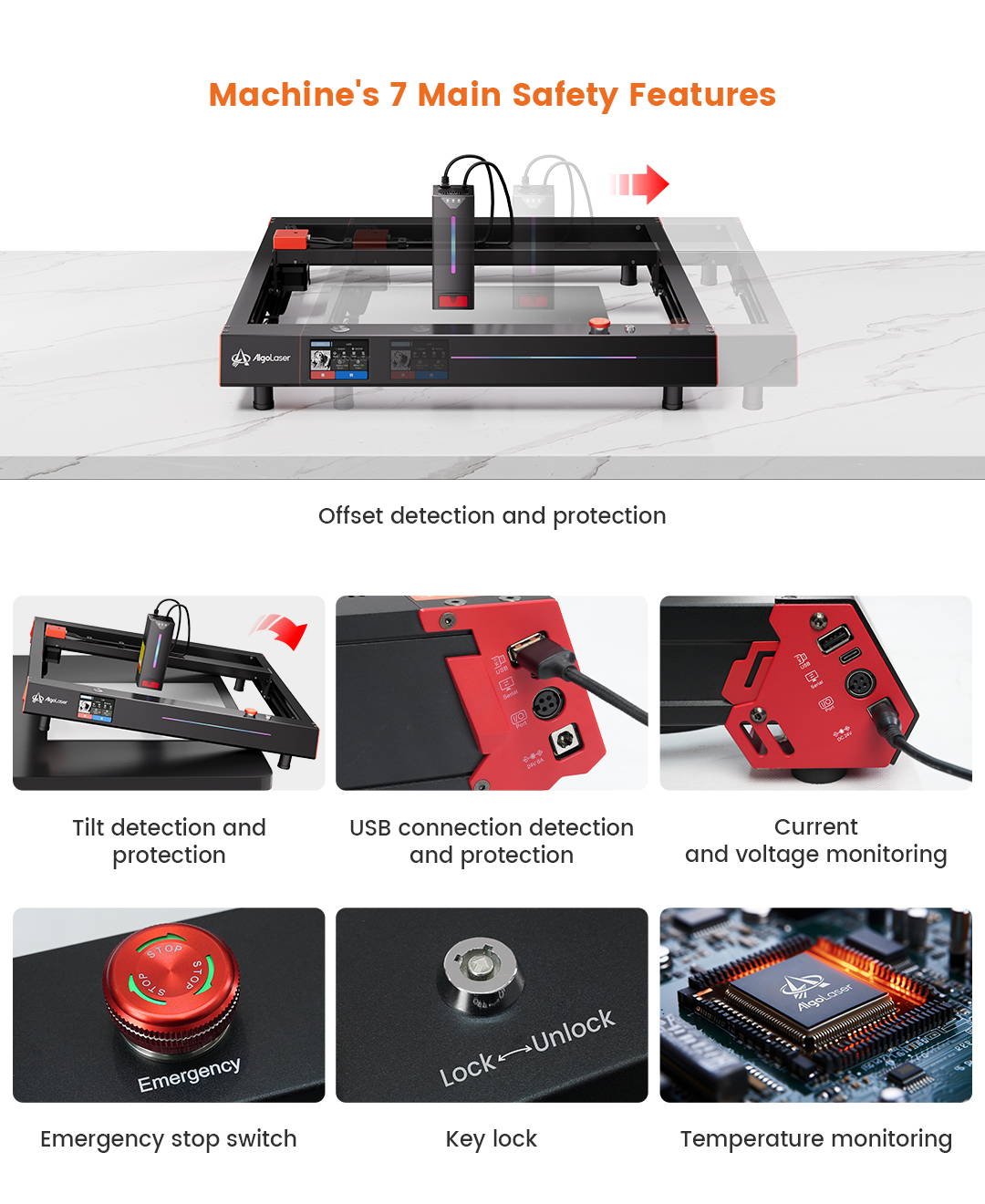

Multiple Security Protection

Assembly Has Never Been So Easy

Pre-assembled structure and slmple installation steps allow you to start the ourney with ease.

Refining the Details That Matter to You

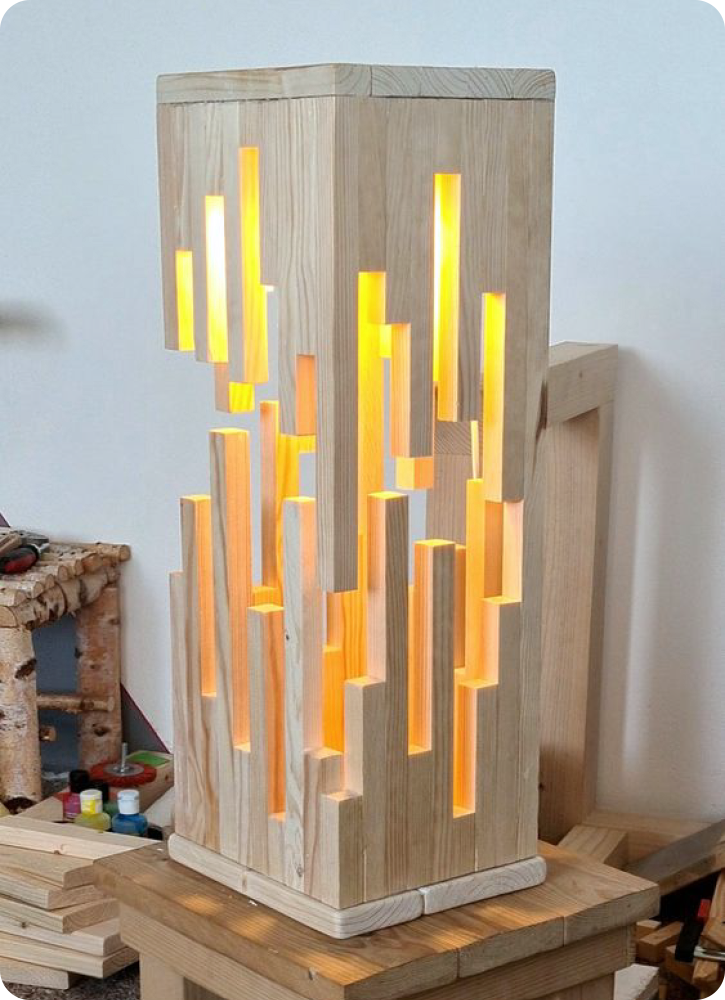

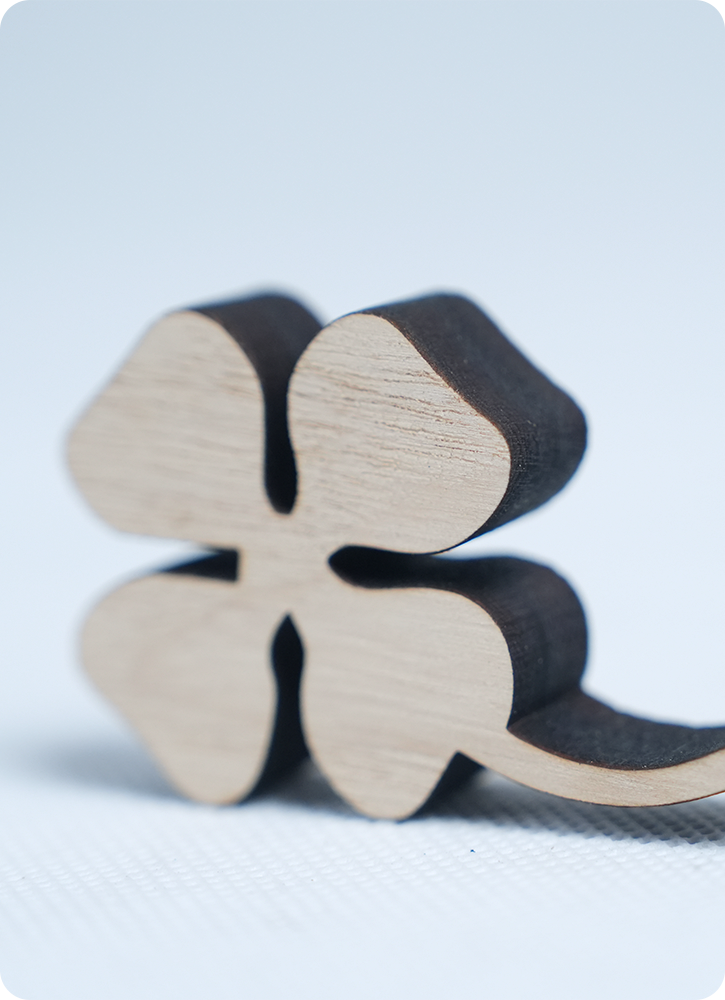

Amazing Wood Artworks Showcase

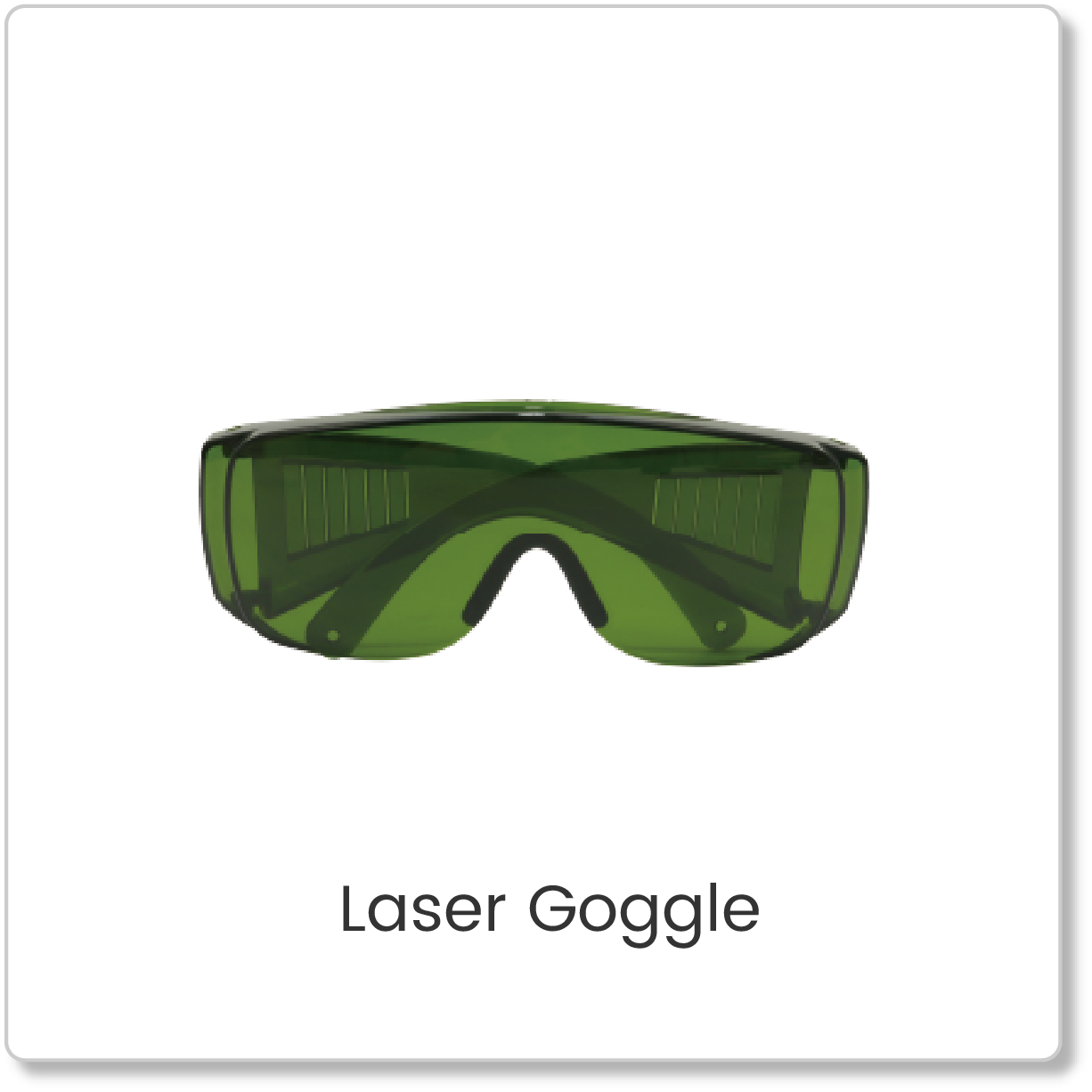

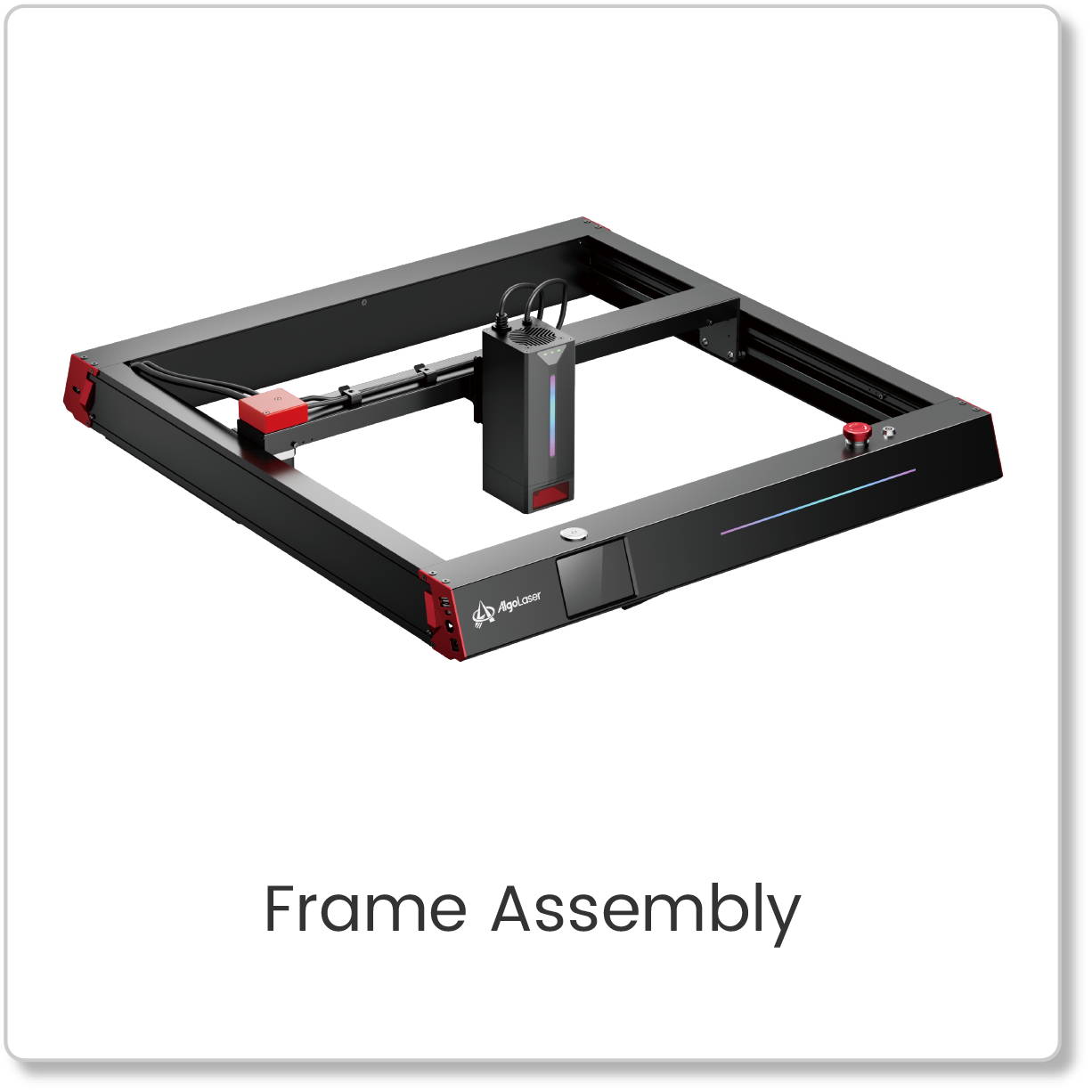

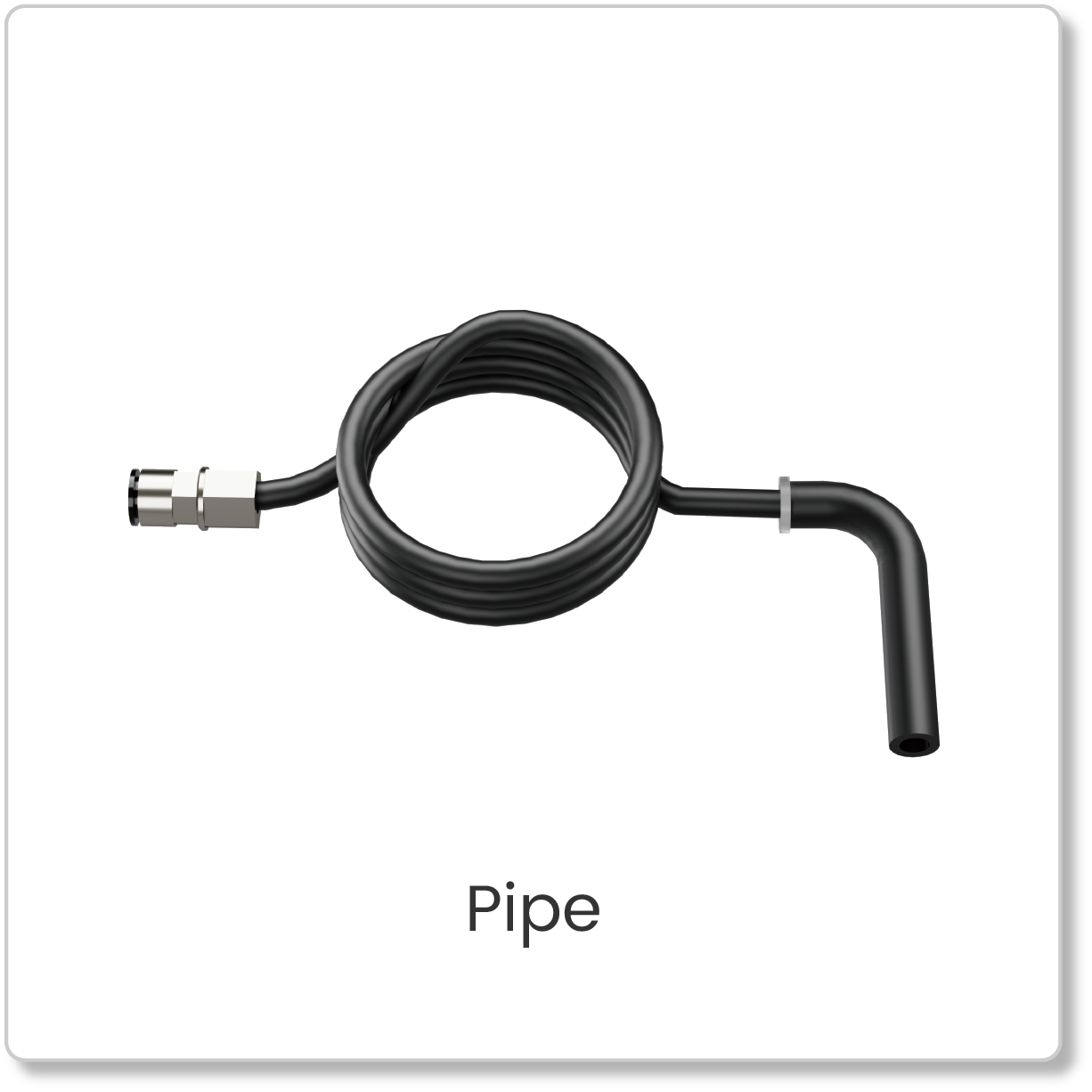

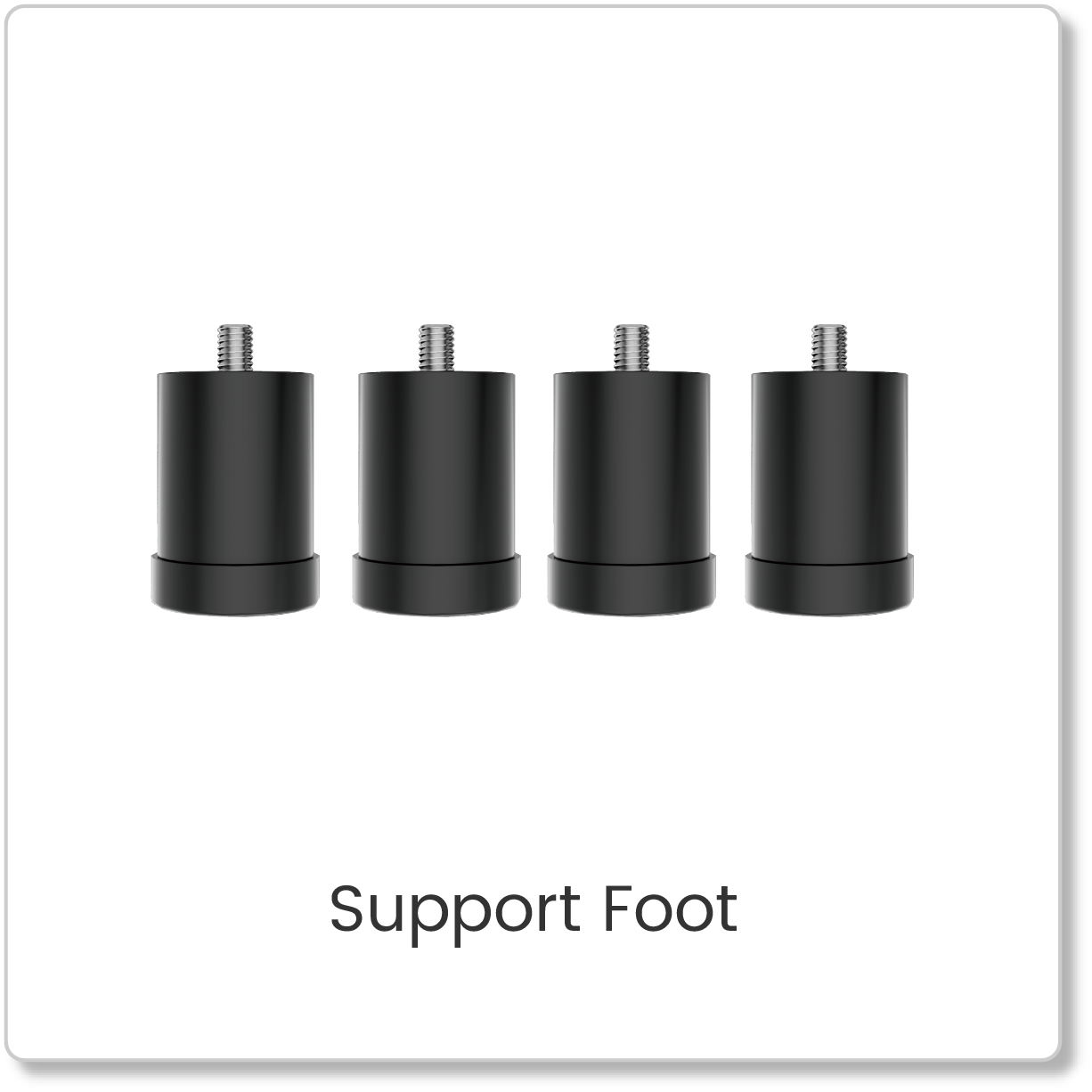

Package Contents

Empowered Software for Your Seamless Workflow.

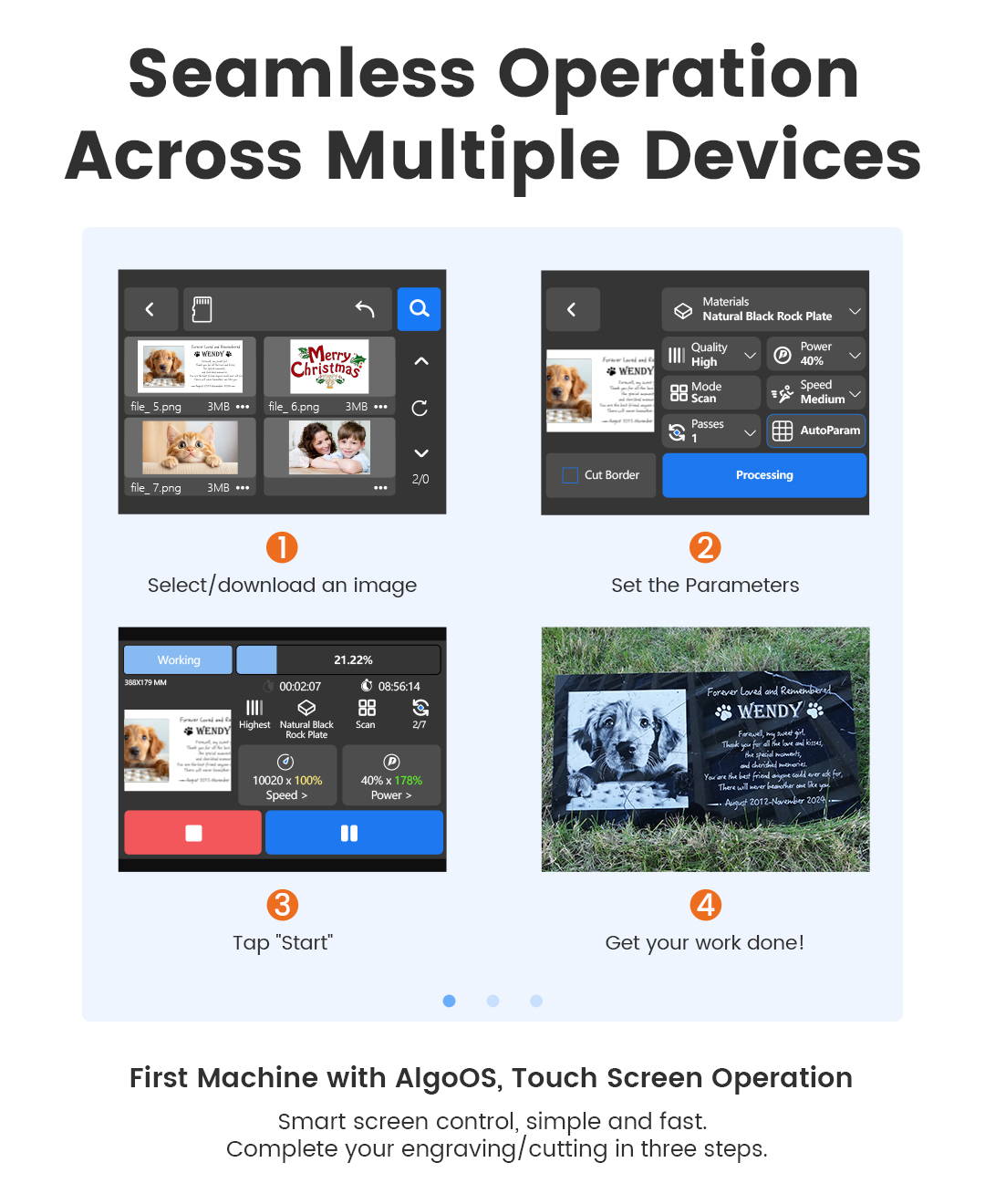

AlgoLaser App

Monitor and control your machine and access our advanced features anytime, anywhere.

Requires iOS 11.0 or above

Requires Android 7.0 or above

Lightburn

Frequently asked questions

Have questions? We’re here to help


What materials can be engraved or cut by AlgoLaser Delta 40W?

Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.

Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.

Can I upgrade my Delta 22W to 40W?

Yes, Delta model support upgrade 22W to 40W, and can enjoy all the smart features Delta supported. But due to the 40W laser module is bigger than 22W laser module, please note that the engraving area is smaller. The engraving area of Delta 40W is 425mm*415mm.

Is Delta 40W compatible with rotary roller, smart enclosure and smart camera?

Yes, the Delta 40W is completely compatible with above accessories.

Can Delta 40W engrave on stainless steel?

Yes, Delta 40W support engraving over 500 shades of color on stainless steel material.

Product Specifications

AlgoLaser Delta Mechanical Frame

Optical Power: 40W

Machine Power: 216W

Power Supply: 24V/6A

Maximum Engraving Speed: 30,000 mm/min

Maximum Motion Speed: 40,000 mm/min

Spot Size: 0.175x0.15mm

Product Size: X650mm*Y730mm*Z240mm

Product Weight: 7.02KG

Laser Head Life Expectancy: >10000 hours

Certification: FCC/CE/RoHS/FDA

Warranty: 12 Months

Safety Features: Active Power-Out detection and protection, Laser Over-Exposure Time Limit, USB disconnect shutdown, Emergency stop button, Gyroscope detection,Motherboard over-temperature protection

Software and Connection

System Supported: Android, iOS, Windows, Mac OS, Web-based

Control Software: AlgoLaser App / LightBurn/LaserGRBL

Compatible Accessories: 22W laser module, Motorized Z-axis, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller

File Format Supported: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.

Laser Head - AlgoLaser 40W - ALM-40BD

Laser Module Size:81mm*62mm*172mm

Laser Module Weight:2kg

Optical Power Output:≥40000mW(40W)

Laser Output Wavelenght: 450±5nm

Focal Distance: 72mm (laser core end face to engraving plane)

Spot Size: 0.175x0.15mm

Spot Shape: Square

Operating Frequency: <30KHz

Operating Temperature: -10ºC - +40º | 14ºF - 104ºF, Multiple Optical Lens Assembly

Diodes Input Voltage: 8.60 Volts

Diodes Inpute Current: 3.8 Amps

Harness Specification: Data Line 4x 26AWG - 0.14 (mm2 cross-sectional area), Laser Line 4x 22AWG - 0.34 (mm2 cross-sectional area)

Connectors Type: Data Line - PHB 2.0 4Pin, Laser Line -

Life Expectancy: >10,000 Hours

Optical Lense Material: Professional focusing optical glass (quartz glass), Multiple Optical Lens Assembly

Packaging

Box Size: 795*720*145mm

Net Weight: 7.02KG

Gross Weight: 12.02kg


Learn More About Delta

Delta Cutting performance

Best One-Pass Cutting Material and Thickness

15mm Birch plywood

15mm Basswood plywood

10mm Eucalyptus plywood

30mm Pine board

15mm Paulownia board

5mm MDF

8mm black acrylic

5mm yellow acrylic

5mm red acrylic

3mm gray cardboard

0.2mm Stainless steel plate

8.5mm Bamboo

Max Cutting Thickness

20mm/4  Birch plywood

15mm / 1 Basswood plywood

15mm / 2 Eucalyptus plywood

25mm/2   Paulownia board

50mm/12 Black acrylic

8mm/2     Green acrylic

8mm/2 Red acrylic

12mm/4 MDF

3mm/1 Gray cardboard

8.5mm/1 Bamboo

50mm/23 Pinewood

Delta 40W Video

Youtube Review Videos

Discover more about Delta 40W from Youtubers

AlgoLaser Delta 40W User Stories

Please be assured that all the above videos are real using experiences of our customers. Hope these videos will give you useful information about our machines. For more details, please follow us @algolaserofficial

Cutting-edge Performance, Crafting Limitless Possibilities

Algolaser laser cutters combine impressive power with exceptional safety features, ensuring that anyone can easily unleash their creativity and bring their ideas to life through engraving.

Firmware Download & Support

Firmware

Firmware

Firmware is the code that is written to a memory of your AlgoLaser Motherboard. Firmware is installed directly during manufacturing, however its been constantly improved and updated. Please keep a good eye below to confirm if your machine needs to be updated.

Now:Not available

Downloads

Destktop Computer Software

Below you will find the links to download the latest version of the software. Make sure to always use the installers from the correct source and keep your software updated.

Software

LightBurn Software

Windows / Linux / MacOs

Download PAGE

LaserGrbl

Windows

Download PAGE

Profiles

LightBurn Profile
Ready to import Lightburn Profile for AlgoLaser Delta.
    1. Download file
    2. In Lightburn – Click Devices in Laser Panel
    3. Click Import
    4. Browse to the file you downloaded.
    5. Click Open
Your AlgoLaser Delta will be imported to Lightburn Devices.
     USB Profile

Documentation

User Manuals

AlgoLaser Delta - Quick Start Guide (EN)

01-08-2023

pdf

The Difference With Delta 22W

Delta 40W


Price

$1899

$999

Laser Power

40W

22W

Laser Spot Size

0.175x0.15mm

0.16*0.14mm 100% Power

0.06*0.05mm 30% Power

Laser Wavelength

450±5nm

455±5nm

Focal Length

75mm

55mm

Laser Head Life Expectancy

>10000 hours

>10000 hours

Max Engraving Speed

30000mm/min

30000mm/min

Movement Speed

40,000mm/min

40,000mm/min

Focus Mode

Auto/Manual

Auto/Manual

Machine Power

216W

144W

Power Supply

24V/9A

24V/6A

Motherboard Version

 ALGO_LASER_V3.2

 ALGO_LASER_V3.1

Working Area

425mm*415mm

430*415mm

3.5'' IPS Screen



Offline Engraving



RGB Indicator LightRGB



Intergrated Air Pump

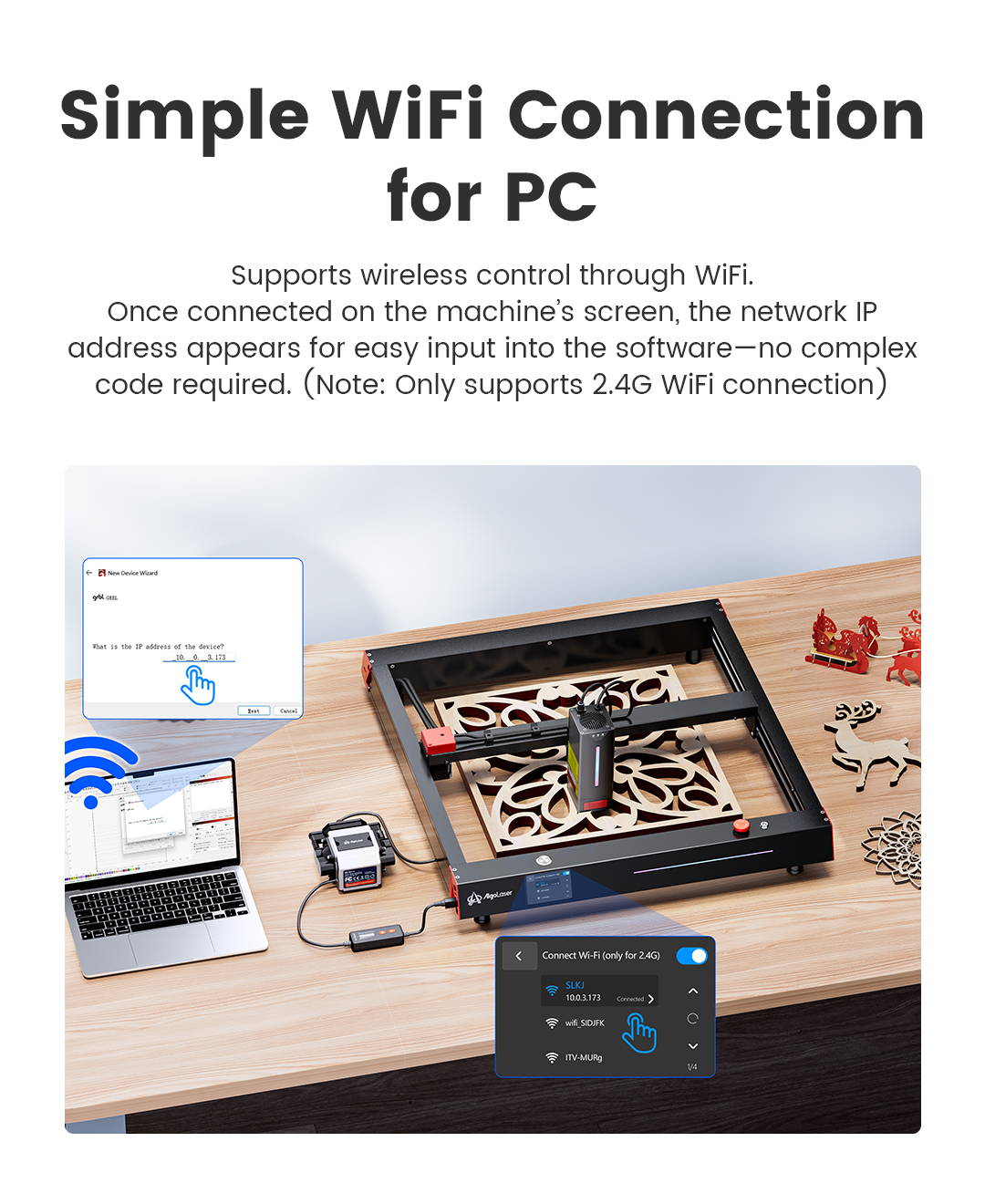

Connection Method

TF Card

USB-A/C

Wifi-2.4G/5G

U Disk

TF Card

USB-A/C

Wifi-2.4G/5G

U Disk

Software Supported

LightBurn

LaserGRBL

AlgoLaser App

LightBurn

LaserGRBL

AlgoLaser App

File Format Supported

JPG

SVG

PNG

BMP

G-code

CAD

 AI

CDR

DWG, etc.

JPG

SVG

PNG

BMP

G-code

CAD

 AI

CDR

DWG, etc.

System Supported

Android

 iOS

Windows

Mac OS

Web-based

Android

 iOS

Windows

Mac OS

Web-based

Working Temperature

-15°C ~ 30°C

-15°C ~ 30°C

Product Weight

7.02KG

8.5KG

Product Size

X650mm*Y730mm*Z240mm

X650*Y730

*Z175mm

Packing Weight

12.02KG

12.0KG

Packing Size

795*720*145mm

795*720*145mm

Certification

FCC

CE

RoHS

FDA

FCC

CE

RoHS

FDA

Warranty

12 Months

12 Months

Best One-Pass Cutting

Birch plywood

Basswood plywood

Eucalyptus plywood

Pine board

Paulownia board

MDF

black acrylic

yellow acrylic

red acrylic

gray cardboard

Stainless steel plate

Bamboo

15mm

15mm

10mm

30mm

15mm

5mm

10mm

5mm

5mm

3mm

0.2mm

10mm

10mm

12mm

5mm

30mm

15mm

5mm

10mm

3mm

5mm

3mm

0.17mm

10mm

Max Cutting Thickness

Birch plywood

Basswood plywood

Eucalyptus plywood

Paulownia board

Black acrylic

Green acrylic

Red acrylic

MDF

Gray cardboard

White Oak

Bamboo

Pinewood

20mm/4

15mm / 1

15mm / 2

25mm/2

50mm/12

8mm/2

8mm/2

12mm/4

3mm/1

20mm / 5

8.5mm/1

50mm/23

12mm / 3

20mm / 15

15mm / 6

20mm / 3

45mm / 15

8mm / 6

10mm / 6

12mm / 6

6mm / 2

20mm / 5

10mm / 1

30mm / 1

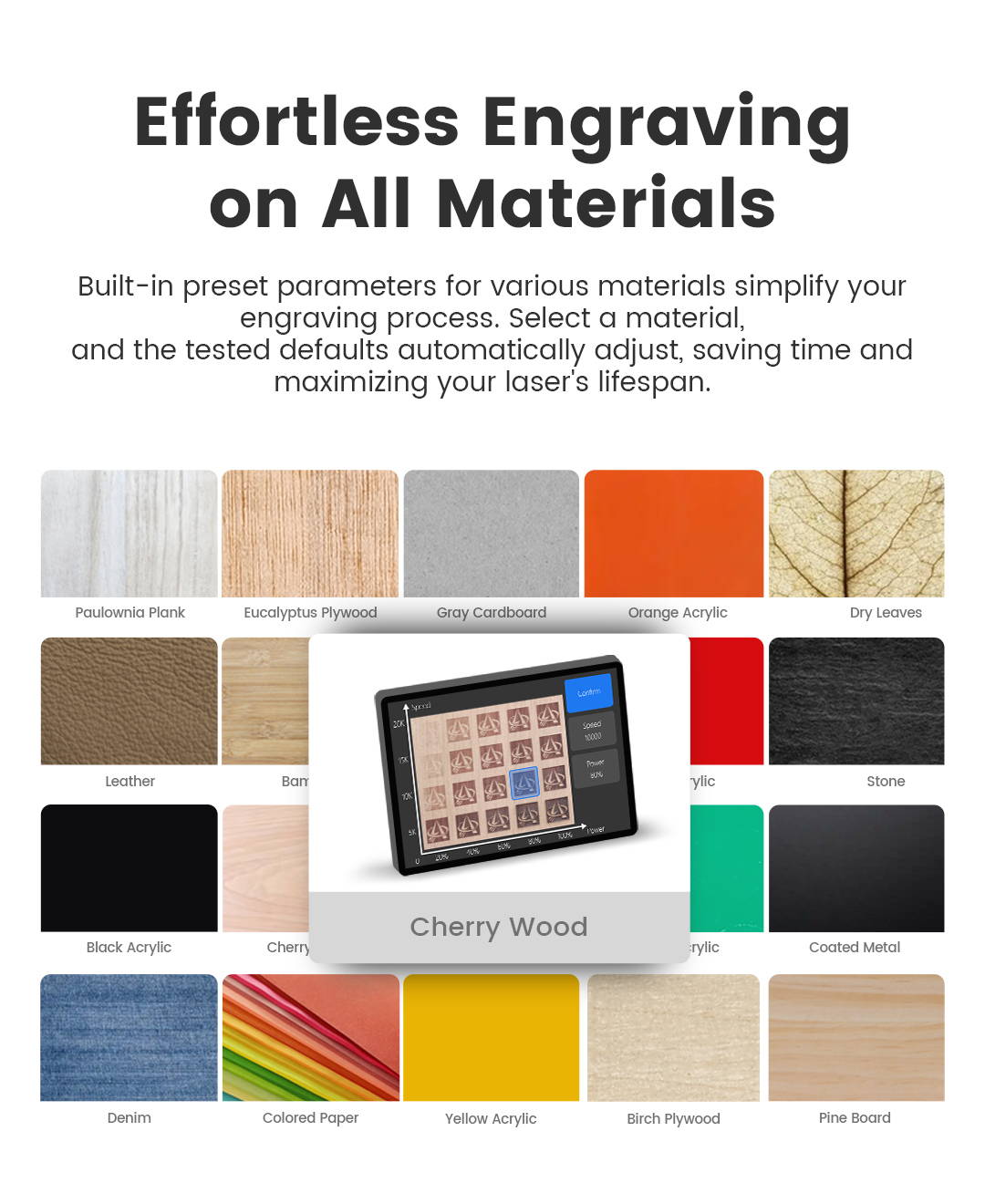

Engraving/Cutting Materials


Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.

Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.


Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.

Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.
