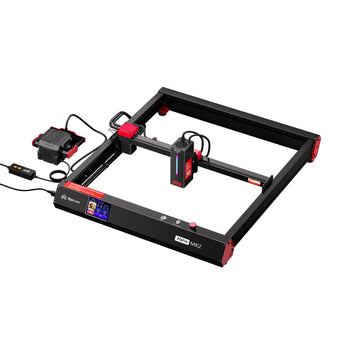

AlgoLaser Alpha MK2 40W Diode Laser Cutter and Engraver

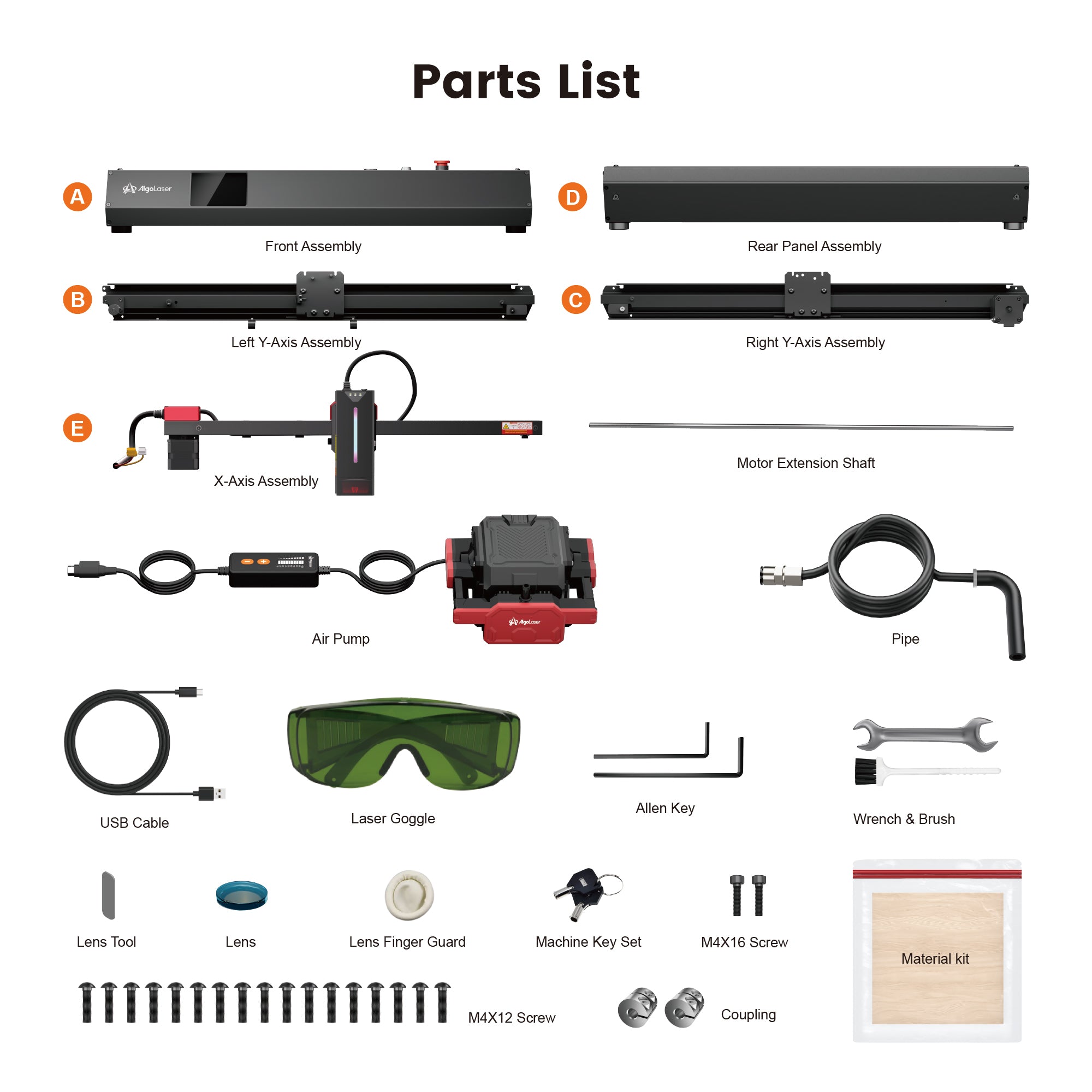

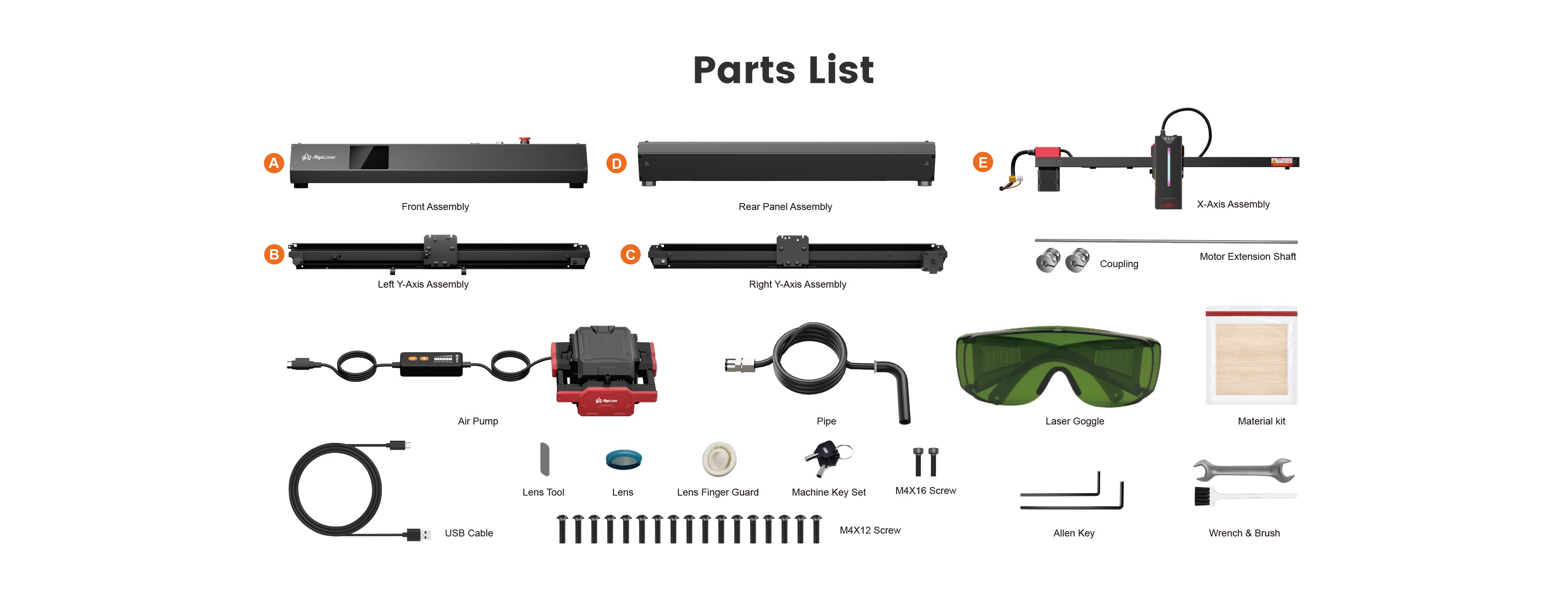

Package
Shipping & Returns
Specifications
Alpha MK2 40WLearn More |
Alpha MK2 20WLearn More |
|
|---|---|---|
| Laser Power | 40W | 20W |
| Working Space | 400mm*386mm | 400mm*410mm |
| Max. Working Speed |

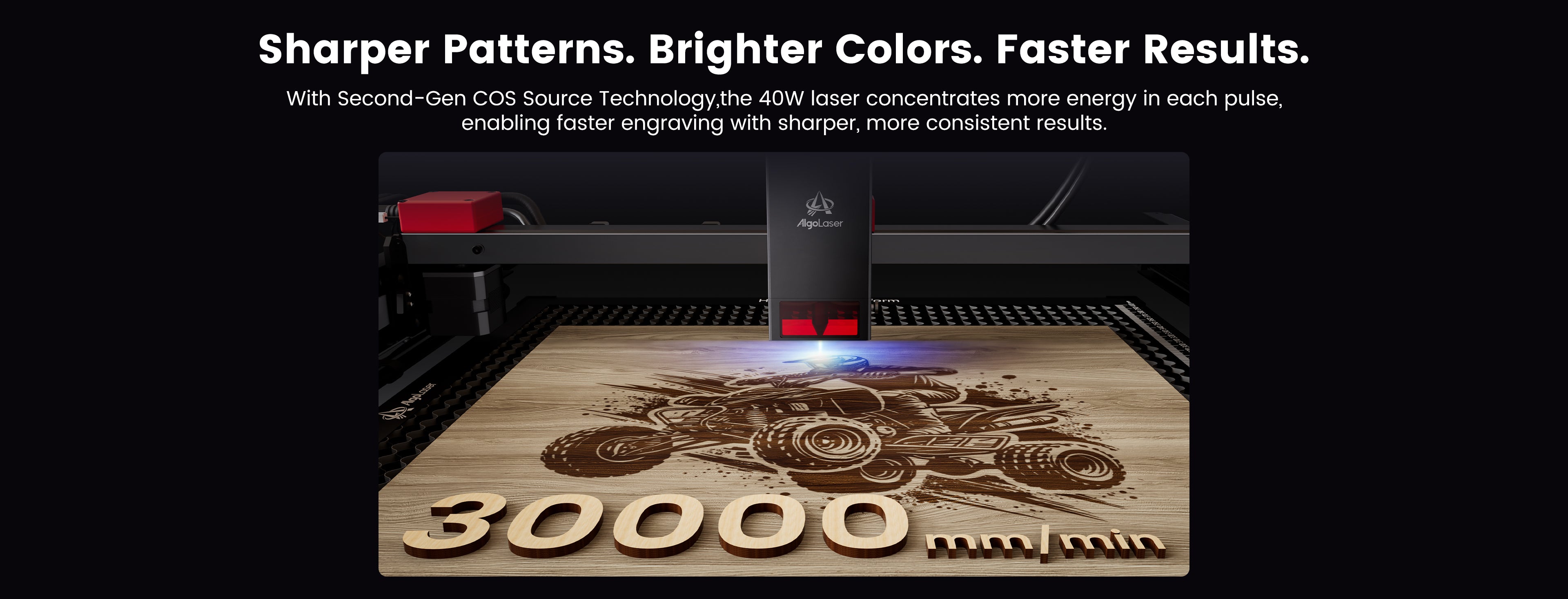

Image Engraving Speed: 20000mm/min Movement Speed: 30000mm/min |
Image Engraving Speed: 30000mm/min Movement Speed: 40000mm/min |
| Laser Source | Diode Laser | Diode Laser |
| Laser Spot | Spot Size at Full Power: 0.175x0.15mm |
Spot Size at Full Power: 0.16x0.14mm |
| Laser Head Life | >10000 Hours | >10000 Hours |
| Laser Wavelength | 450±5nm | 450±5nm |
| Support File | jpg, svg, png, bmp, G code, dwg | jpg, svg, png, bmp, G code, dwg |
| Support Systems | Android / iOS / iPad / Windows / macOS | Android / iOS / iPad / Windows / macOS |
| Software | AlgoLaser APP / Lightburn / LaserGRBL | AlgoLaser APP / Lightburn / LaserGRBL |
| Product Size | 692mm*585mm*200mm | 650mm*730mm*240mm |
| Product Weight | 8.41kg | 6.5kg |
| Input Voltage | 100-240~50/60Hz | 100-240~50/60Hz |
| Output Voltage | 24V9A（9A MAX） | 24V6A（6A MAX） |
| Security Certification | FCC / CE / RoHS / FDA / UL ReportsIEC60825-1 / IEC60825-4 | FCC / CE / RoHS / FDA / UL ReportsIEC60825-1 / IEC60825-4 |
Learn More About Alpha MK2 40W
What materials can be engraved or cut by AlgoLaser Alpha MK2 40W?
Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.
Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.
What is the laser power of Alpha MK2 machine?
Can be equipped with 10W, 20W and 40W power modules.
Can l upgrade my Alpha MK2 20W to 40W?
Yes, Alpha MK2 model support upgrade 20W to 40W. But due to the 40W laser module is bigger than 20W laser module, please note that the engraving area is smaller. The engraving area of Alpha MK2 40W is 400mm*386mm.

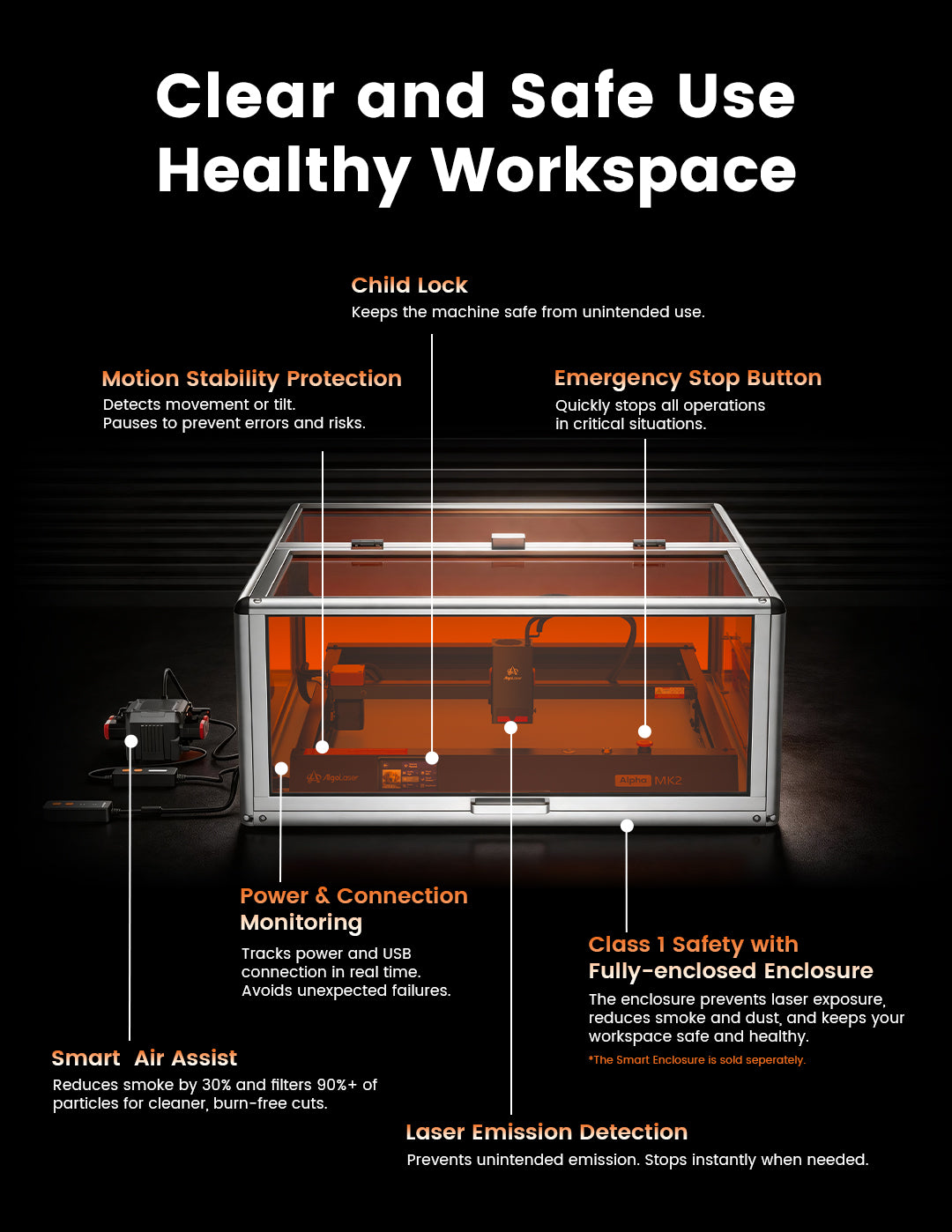

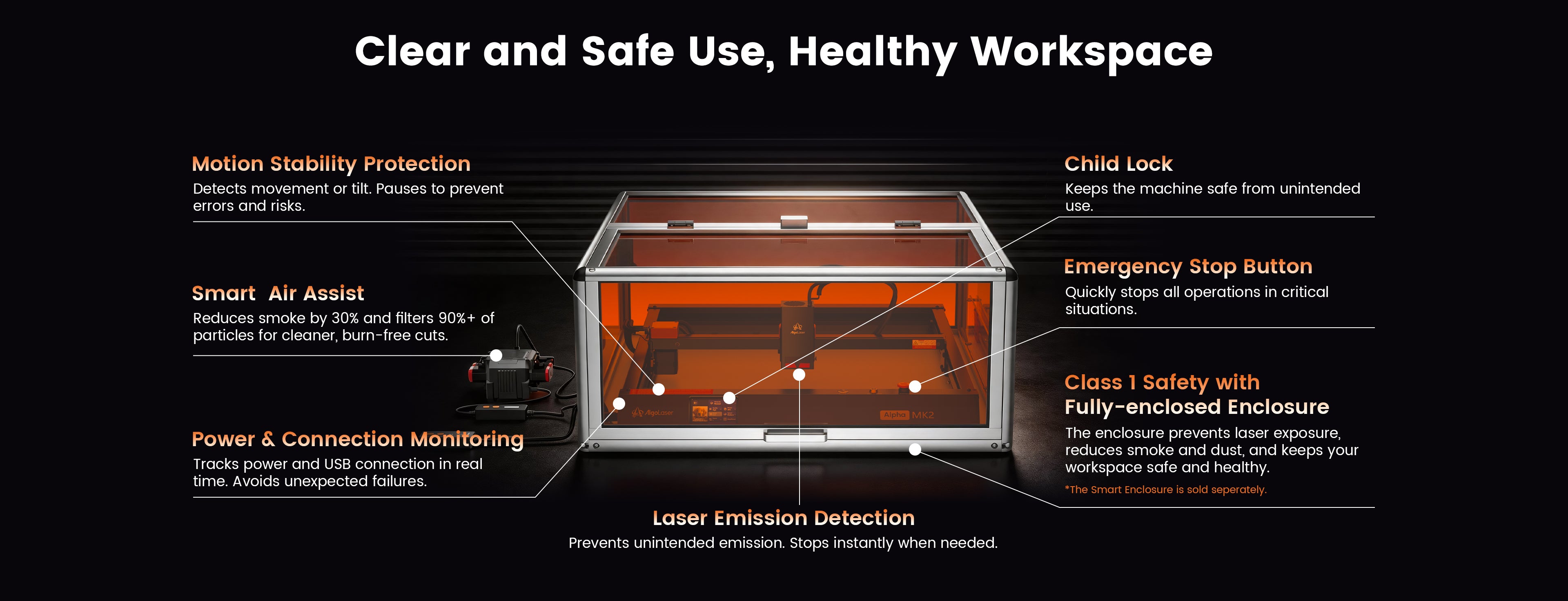

Is Alpha MK2 40W compatible with rotary roller, smart enclosure and smart camera?
Yes，Alpha MK2 offers a one-stop solution with full ecosystem accessory support, compatible with the above accessories.(Note: The rotary accessory cannot be used when the smart enclosure is in operation.)
Can Alpha MK2 40W engrave on metals?
Yes, Alpha MK2 support engraving on a few matals such as aluminum oxide, stainless steel, coating metal materials, amd it can engrave over 500 shades of color on stainless steel material.
