Metal Pocket Knife
Line 1/Speed 1
3000
Line Interval
Hightest
Power
100%
Pass
1
Line 1/Speed 1
10000
Line Interval
Hightest
Power
100%
Pass
1
How to Laser Engrave a Father’s Day Metal Pocket Knife
Father’s Day is the perfect occasion to give a gift that’s not only meaningful but also personalized. Among the most timeless and practical gifts for dads is a metal pocket knife—and there’s nothing quite like turning it into a cherished keepsake with a customized engraving using a laser engraver.
We’ll show you how to engrave a Father’s Day metal pocket knife using the AlgoLaser Alpha MK2 equipped with the 1064nm 2W infrared laser module and the 20W blue diode laser module, covering each step with in-depth instructions, expert tips, and optimal parameter settings. We’ll also answer the six most commonly asked questions to help you create a flawless engraving that your dad will love forever.
A metal pocket knife is more than just a tool—it’s a symbol of utility, strength, and tradition. Personalizing it with a meaningful message like “World’s Best Dad,” initials, a date, or even a sketch of his favorite hobby adds a sentimental touch that transforms it into an heirloom.
And thanks to the precision and versatility of a laser engraver, you can achieve professional-quality results right from your workshop or home.
Tools You’ll Need
· AlgoLaser Alpha MK2
· 1064nm 2W infrared laser module (for engraving on metal)
· 20W blue diode laser module (for engraving packaging or wood display stands)
· Fixture or clamp to hold the knife in place
· Computer or AlgoOS touchscreen interface
· Engraving file/image (e.g. DXF, PNG, JPG, SVG)
· AlgoLaser app or LightBurn software
· Safety goggles
To engrave directly onto metal (like stainless steel or anodized aluminum), begin by installing the 2W 1064nm infrared laser module on your Alpha MK2 laser engraver.
Turn off the machine before swapping modules.
Loosen the module holder on the X-axis gantry.
Slide in the 1064nm 2W module securely.
Insert the module cable into the corresponding port labeled for 1064nm use.
Tighten the screws to ensure the module doesn’t shake or shift during operation.
This module is specifically designed for engraving high-reflective materials like metal, and it’s optimized for sharpness and durability of the mark.
1. Place your metal pocket knife into a laser engraving fixture or clamp.
2. Ensure the engraving surface (typically the handle) is completely level and tightly secured.
3. Position the laser module above the engraving area.
4. Use the provided focal gauge for the 1064nm module to set the correct focal distance. For the Alpha MK2, the infrared module typically has a short, precise focal length.
5. Adjust the Z-axis or laser module height accordingly until the focus tool slides in and out smoothly.
Now, turn on the machine and tap:
6. Settings > Machine > Laser
Select “2W 1064nm”
1. On the touch screen or using AlgoOS, tap “Engraving”.
2. Choose your saved image file from the SD card or USB.
3. Tap “Material”, then select “Metal.”
4. Choose the engraving effect—for metal, high contrast fill is ideal.
5. Set the engraving quality to “High” or “Highest” depending on the detail level of your design.
6. Resize and reposition the image to fit the handle area using the preview grid.
7. Set engraving parameters for 1064nm laser:
· Fill-Speed: 3000mm/min
· Power: 100%
· Line Interval: Highest
· Pass: 1
8. Hit “Start Engraving” and monitor the process carefully. It typically takes just a few minutes depending on the complexity.
To take your Father’s Day gift up a notch, consider engraving a custom wooden display stand or a gift box lid. For this, swap in the 20W blue diode module:
1. Turn off the machine and install the 20W laser module.
2. Reconnect the module’s cable.
3. Place your wooden stand or lid inside the fixture.
4. Use the focus tool for the 20W module to set the height.
5. Select your image, like “Happy Father’s Day” or a decorative pattern.
Engraving parameters for 20W module on wood:
· Fill-Speed: 10000mm/min
· Power: 100%
· Line Interval: Highest
· Pass: 1
6. Adjust the image size and position to fit your wooden accessory.
7. Tap “Start Engraving” to personalize the gift even further.
Once engraving is complete:
1. Gently remove the knife or gift box from the fixture.
2. Use a soft cloth or brush to remove dust or residue.
3. For metal surfaces, consider applying a light coat of mineral oil for shine.

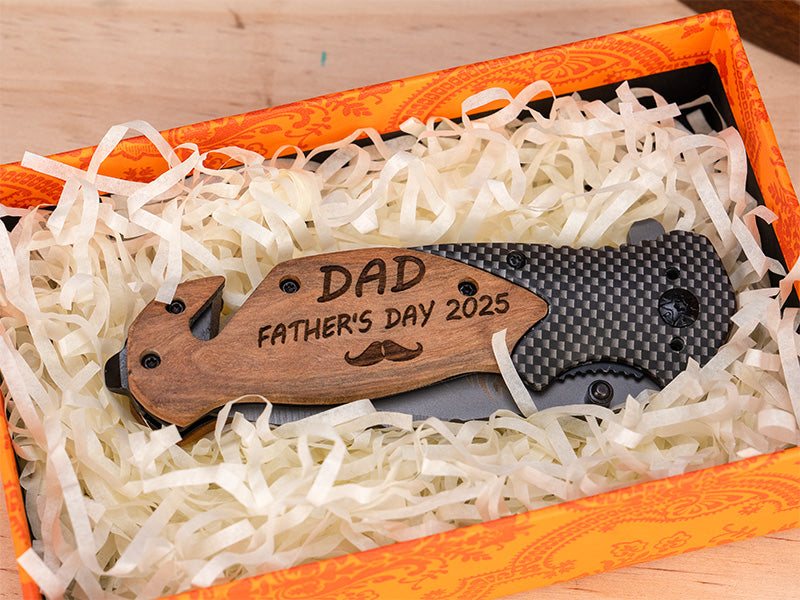

4. Package your engraved knife in the custom box, and your heartfelt Father’s Day gift is ready to go!
1. Can I engrave any metal with a laser engraver?
You sure can—but only if you're using the right laser. Most metals require an infrared laser, like the 1064nm 2W module. Standard diode lasers (like 10W or 20W blue) won’t work well on bare metal unless you apply marking agents. The Alpha MK2 supports both modules, so you’re covered.
2. What if my knife handle is curved?
Good question! You’ll need to be a little extra careful. Use a tilt-adjustable fixture to keep the curved portion level relative to the laser. You can also use masking tape to test the alignment before real engraving.
3. Can I engrave a photo on the knife?
Technically, yes. But remember: knives have small engraving areas, so simplified images, logos, or text usually turn out much better. If you're set on a photo, choose high-contrast B&W images and keep it minimal.
4. Do I need special software to operate the Alpha MK2?
Not really! The built-in AlgoOS system lets you engrave directly from the touchscreen—no LightBurn or computer needed. But if you’re looking for advanced layout or multi-layer design, LightBurn is always a solid choice.
5. Can I engrave wood or leather with the 1064nm module?
Nope! The 1064nm module is designed specifically for metal and doesn’t interact well with wood, leather, or acrylic. For those materials, swap in the 20W diode module on your Alpha MK2.
6. How do I prevent my engraving from fading over time?
Use the correct engraving depth and power settings, and clean the surface before and after engraving. For stainless steel, the 1064nm laser creates permanent marks that won’t fade. Avoid harsh chemical cleaners after engraving.
Whether you're crafting a heartfelt keepsake or a unique tool for your dad, engraving a metal pocket knife using the Alpha MK2 laser engraver makes the process smooth and rewarding. The ability to swap between modules gives you full control over a wide range of materials—from rugged metal to soft wood—and lets your creativity shine.
So this Father’s Day, skip the generic gifts and give your dad something personal, durable, and truly unforgettable.
Free SVG & Gcode Files for Laser Engraving & Cutting can be found here, wich you can import into our laser cutters directly.
