24 hours (in an environment with good ventilation and heat dissipation).
DIY KIT
Affordable and Upgradeable
DIY KIT ModuIe Comparison
Specific ModuIe, Satisfy MuItipIe Needs.
Spot Size: 0.04*0.08mm
Higher accuracy
Better engraving of portraits and animal designs on MDF, Plywood, and Leather.
Spot Size: 0.04*0.09mm
Bets Entry-level laser Module
For both engraving and cutting thickness 3-6mm
Spot Size: 0.05*0.1mm
Powerful cutting ability
With air-assist nozzle include,for both engraving and cutting thickness: 3-12mm
Recommended to use with an air pump to get better cutting effects.
Please note that the air pump is not included in the 10W package and needs to be purchased separately.
Why Choose DIY KIT
More Power, More Efficiency

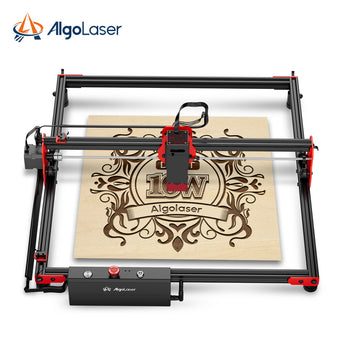

The 10W laser module is able to engrave with precision and can cut wood and acrylic plate with thickness
High Accuracy, High Speed
12000mm/min Speed
Unleash Your Creativity on Multiple Materials
Explore More Fun
The 5W entry-level laser engraver that supports WiFi,USB-C ,and built-in TF card Only in the market.
For newbies, you can easily get started engraving offline with AlgoLaser App
Dual-core CPU
Deliver significant speed boost, achieving an impressive 32％ higher CPU performance and 50％ improved energy efficiency.
Upgraded Motherboard
lmproved performance, expanded storage 8MB RAM, 8MB storage memory, and a built-in 32GB SD card.
Strong Compatibility
Thanks to the upgraded motherboard, the DIY KIT is compatible with power up to 20w to satisfy more requirements. With Smart Hub and AUC, it can work with versatile accessories from different brands.
Dual-core CPU
Deliver significant speed boost, achieving an impressive 32％ higher CPU performance and 50％ improved energy efficiency.
Upgraded Motherboard
lmproved performance, expanded storage 8MB RAM, 8MB storage memory, and a built-in 32GB SD card.
Strong Compatibility
Thanks to the upgraded motherboard, the DIY KIT is compatible with power up to 20w to satisfy more requirements. With Smart Hub and AUC, it can work with versatile accessories from different brands.
7 Safety Protections
Easy To Upgrade and Expand
The upgraded terminals of the motherboard, as well as modularization design of DIY KIT,
allows users to extend the existing frame and connect other accessories to achieve more possibilities.
Thoughtful Design
· User-friendly installation - The assembly takes only 10~15 mintutes with instruction help, even for newbies.
· Wire Management - With few wires, proper notches and wire ties, no worry about tangled wires and misplugging.
· Stable Structure - Motion structure 4-wheel design and Y-axis synchronization design ensure motion stability;
2 limit switches and 4 limit studs to prevent impact damage to the laser module;
Stable body and non-slip feet support the machine to work without shifting.
Package Contents
Package Contents
Empowered Software for Your Seamless Workflow.
AlgoLaser App
Monitor and control your machine and access our advanced features anytime, anywhere.
Requires iOS 11.0 or above
Requires Android 7.0 or above
Lightburn
Frequently asked questions
Have questions? We’re here to help
How many hours can DIY KIT work continuously?
Does DIY KIT will have an extension of the area?
This will be available soon and the engraving area is 800*850mm
Does it can engrave on the glass?
The laser can engrave on the glass surface, but the engraving depth is not deep enough for cutting. When engraving transparent and translucent glass, you need to wrap thermal paper or paint it black.
Which laser module is it equipped with?
At the moment, it is 5W. 10W and 20W will be available soon
Product Specifications
Machine
DIY KIT 10W
DIY KIT 5W
DIY KIT 2W
Laser Power
10W
5W
2W
Working Space
400mm*400mm
400mm*400mm
400mm*400mm
Max. Working Speed
12000mm/min
12000mm/min
12000mm/min
Laser Source
Diode Laser
Diode Laser
Diode Laser
Laser Spot
0.05*0.1mm
0.04*0.09mm
0.08x0.04mm
Laser Head Life
>10000 Hours
>10000 Hours
>10000 Hours
Laser Wavelength
455±5nm
455±5nm
450±10nm
Support File
jpg, svg, png, bmp, G code, dwg
jpg, svg, png, bmp, G code, dwg
jpg, svg, png, bmp, G code, dwg
Support Systems
Android / iOS / iPad / Windows / macOS
Android / iOS / iPad / Windows / macOS
Android / iOS / iPad / Windows / macOS
Software
AlgoLaser APP / Lightburn / LaserGRBL
AlgoLaser APP / Lightburn / LaserGRBL
AlgoLaser APP / Lightburn / LaserGRBL
Product Size
642mm*602mm*182mm
642mm*602mm*146mm
642mm*602mm*146mm
Product Weight
4.78kg
4.34kg
4.20kg
Input Voltage
100-240~50/60Hz
100-240~50/60Hz
100-240~50/60Hz
Output Voltage
24V4A（6A MAX）
24V2.5A（6A MAX）
24V2A（6A MAX）
Security Certification
FCC / CE / RoHS / FDA / UL Reports
IEC60825-1/IEC60825-4
FCC / CE / RoHS / FDA / UL Reports
IEC60825-1/IEC60825-4
FCC / CE / RoHS / FDA / UL Reports
IEC60825-1/IEC60825-4
Learn More About DIY KIT
DIY KIT Video
Algolaser DIY KIT 5W Laser Engraver Tutorial
AlgoLaser DIT KIT 5W Unboxing Video Guide
AlgoLaser DIT KIT 5W Assembly Video Guide
Firmware Download & Support
Firmware
Firmware
Firmware is the code that is written to a memory of your AlgoLaser Motherboard. Firmware is installed directly during manufacturing, however its been constantly improved and updated. Please keep a good eye below to confirm if your machine needs to be updated.
Please note: The zip file contains both the firmware file and tutorial for firmware upload. When uploading the firmware, avoid uploading the tutorial as well.
Downloads
Destktop Computer Software
Below you will find the links to download the latest version of the software. Make sure to always use the installers from the correct source and keep your software updated.
Software
Profiles
LightBurn Profile
Ready to import Lightburn Profile for AlgoLaser DIY KIT.
1. Download file
2. In Lightburn – Click Devices in Laser Panel
3. Click Import
4. Browse to the file you downloaded.
5. Click Open
Your AlgoLaser DIY KIT will be imported to Lightburn Devices.
Ready to import Lightburn Profile for AlgoLaser DIY KIT.
1. Download file
2. In Lightburn – Click Devices in Laser Panel
3. Click Import
4. Browse to the file you downloaded.
5. Click Open
Your AlgoLaser DIY KIT will be imported to Lightburn Devices.
Documentation
User Manuals
Difference Between DIY KIT 10W and DIY KIT 5W
Price
$359
$259
Laser Power
10W
5W
Laser Spot Size
0.05mm*0.1mm
0.04mmx0.09mm
Laser Wavelength
455±5nm
455±5nm
Focal Length
5mm from hood
4.8mm from hood
Laser Head Life Expectancy
>10000 hours
>8000 hours
Max Engraving Speed
12,000mm/min
12,000mm/min
Movement Speed
20000mm/min
20000mm/min
Focus Mode
Manual
Manual
Machine Power
120W
72W
Power Supply
24V/5A
24V/3A
Motherboard Version
ALGOLASER_DIY_KIT_V1.2
ALGOLASER_DIY_KIT_V1.2
Working Area
400*400mm
400*400mm
Offline Engraving
✔
✔
Connection Method
TF Card
USB C
Wifi-2.4G
TF Card/USB C/Wifi-2.4G
Software Supported
LightBurn
LaserGRBL
AlgoLaser App
LightBurn
LaserGRBL
AlgoLaser App
File Format Supported
JPG
SVG
PNG
BMP
G-code
CAD
AI
CDR
DWG, etc.
JPG
SVG
PNG
BMP
G-code
CAD
AI
CDR
DWG, etc.
System Supported
Android
iOS
Windows
Mac OS
Web-based
Android
iOS
Windows
Mac OS
Web-based
Compatible Accessories
5W laser module, 10W laser module, 20W lasewer module, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller, Riser, Camera.
5W laser module, 10W laser module, 20W lasewer module, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller, Riser, Camera.
Product Weight
4.9KG
4.5kg
Product Size
642mm*602mm*182mm
642mm*602mm*146mm
Packing Weight
5.67kg
5.27kg
Packing Size
650mm*295mm*145mm
650mm*295mm*145mm
Warranty
12 Months
12 Months
Best One-Pass Cutting
Birch plywood
Pine Wood
Basswood plywood
Paulownia board
Cherry Wood
Walnut wood
Black acrylic
PolyVinyl Chloride
Gray Carboard
White Cardboard
Corrugated Board
Leather
Canvas
Denim
ABS sheet
4mm
5mm
6mm
12mm
5mm
5mm
3.5mm
5mm
3mm
3mm
5mm
2mm
0.6mm
0.8mm
4mm
4mm
/
5mm
3mm
3mm
/
/
5mm
2mm
1mm
5mm
2mm
0.6mm
0.8mm
2mm
Max Cutting Thickness
Basswood plywood
Eucalyptus plywood
Paulownia board
Black acrylic
Green acrylic
Red acrylic
MDF
Gray cardboard
Pinewood
13mm / 4
5mm / 4
12mm / 1
30mm / 25
8mm / 8
10mm / 10
5mm / 4
3mm / 1
20mm / 10
10mm / 10
5mm / 7
12mm / 13
8mm / 8
8mm / 12
3mm / 6
3mm / 2
3mm / 3
10mm / 8
Engraving/Cutting Materials
Cutting Material:All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, Cherry Wood, Walnut, MDF, cardboard, corrugated board, black acrylic, cork sheet, PolyVinyl Chloride, ABS sheet, Rubber, Depron foam, non-woven fabric, leather, colored paper.
Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, acrylic, PolyVinyl Chloride, Cardboard, Coated Duplex Board, Leather, Colored Paper, Canvas, Denim, Rubber, ABS, Bamboo, Stainless steel, Cold Rolled Sheet, Coated Metal, Dry Leaves, Clear Acrylic with Color Paper.
Cutting Material:All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, Cherry Wood, Walnut, MDF, cardboard, corrugated board, black acrylic, cork sheet, PolyVinyl Chloride, ABS sheet, Rubber, Depron foam, non-woven fabric, leather, colored paper.
Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, acrylic, PolyVinyl Chloride, Cardboard, Coated Duplex Board, Leather, Colored Paper, Canvas, Denim, Rubber, ABS, Bamboo, Stainless steel, Cold Rolled Sheet, Coated Metal, Dry Leaves, Clear Acrylic with Color Paper.
