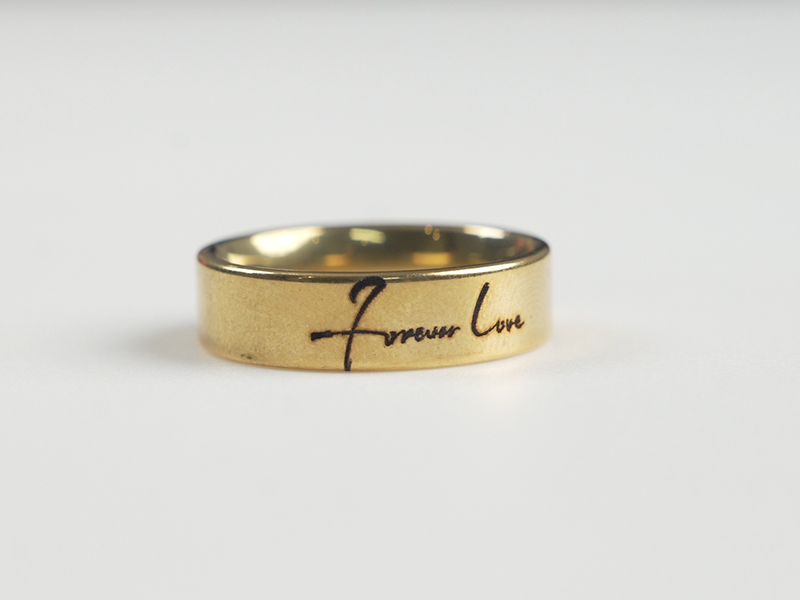

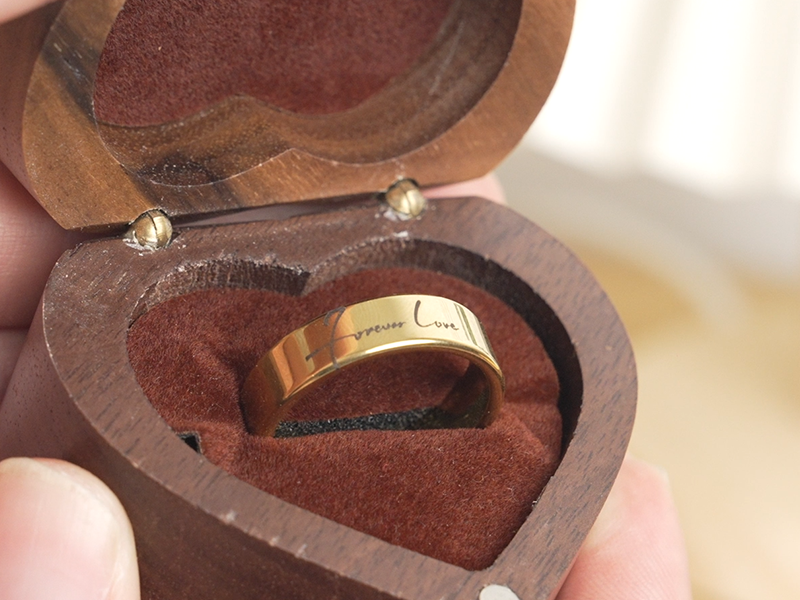

Laser Engraved Steel Ring
Laser Engraved Steel Ring
Laser Engraved Steel Ring
Laser Engraved Steel Ring
Laser Engraved Steel Ring

Download Project Files

Laser Engraved Steel Ring

Materials Needed

Steel Ring

AlgoOS Laser System  →

Machine Used

AlgoLaser Pixi 1064nm Laser Engraver

See suggested settings for your Laser Machine    →

Metal Engraving

Fill -Speed

350mm

Power

100%

Pass

1

  • How to Laser Engrave a Steel Ring with a 1064nm Infrared Laser (Complete 5-Step Geek Guide)

Steel ring laser engraving is not the same as engraving wood, leather, or acrylic. Metal reflects visible blue wavelengths aggressively, conducts heat rapidly, and requires precise energy density control to produce clean, high-contrast results.



In this guide, I’ll walk you step by step through how to laser engrave a steel ring using the AlgoLaser Pixi 1064nm 1.5W, a compact 1064nm infrared laser engraver engineered for metal surface engraving, jewelry laser marking, and coated stainless steel personalization.



We’ll use LightBurn for workflow control and optimize parameters specifically for coated metal ring engraving, not deep steel ablation.

Why 1064nm Is Ideal for Steel Ring Laser Engraving

If you’ve ever asked, “Can a diode laser engrave steel?” — the answer is technically yes, but inefficiently. A 455nm blue diode reflects significantly off polished stainless steel.



A 1064nm laser engraver, however, offers:

·  Higher wavelength absorption rate on metal

·  Efficient infrared laser–metal interaction

·  Reduced heat affected zone (HAZ)

·  Clean coating ablation without substrate distortion

·  Superior marking contrast enhancement

When engraving a coated stainless steel ring, you’re primarily performing metal coating removal—vaporizing paint, PVD, or anodized surface layers to expose the base metal beneath.

This is precision marking, not brute-force cutting.

Step 1: Prepare Your Metal Laser Engraving Workstation

Equipment Overview

·  Machine: AlgoLaser Pixi 1064nm 1.5W

·  Control Unit: ARC1.0

·  Software: LightBurn

·  Material: Coated steel ring

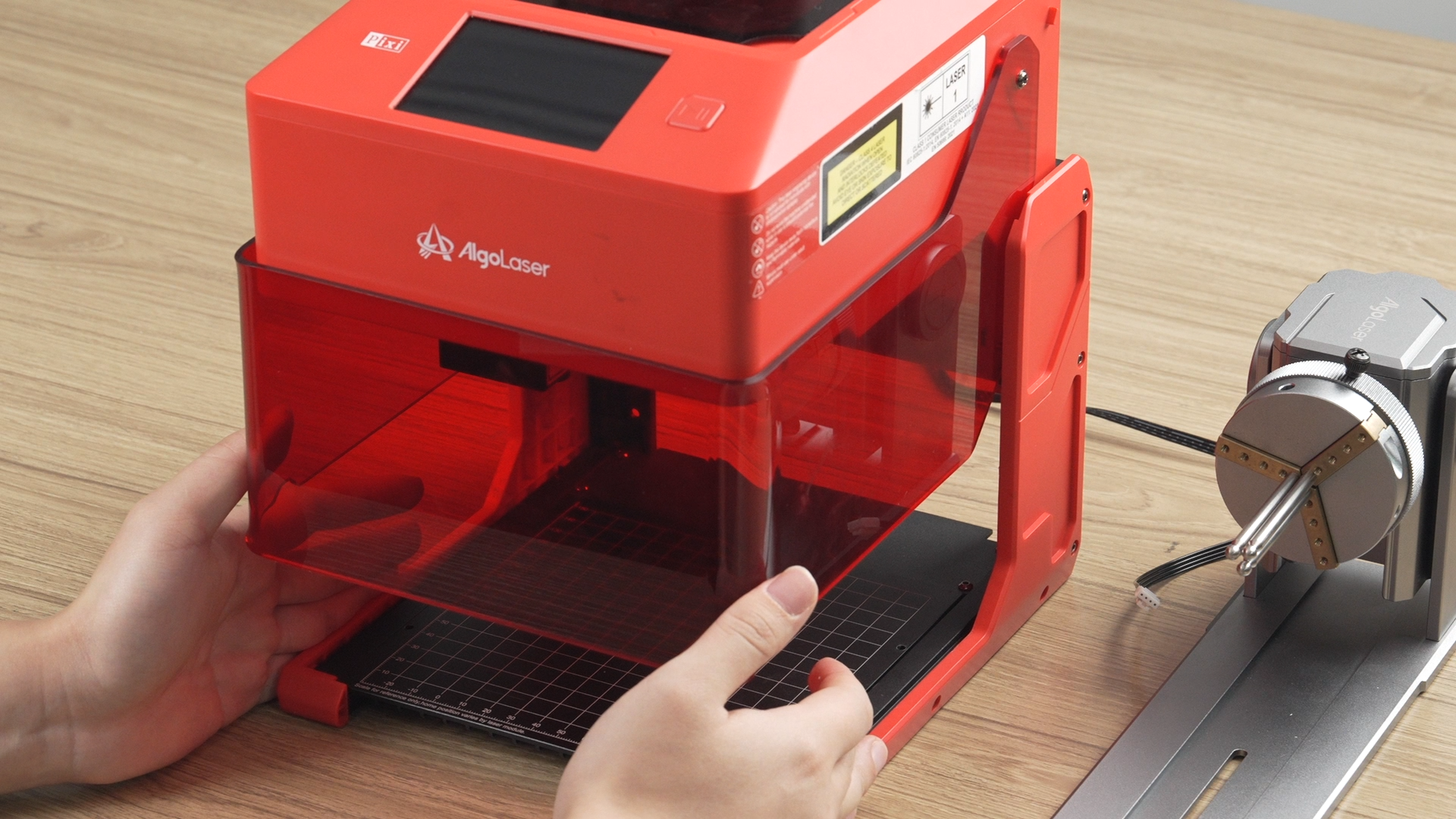

Start by placing the compact metal laser engraver on a stable surface. Stability is critical for micro engraving on jewelry, especially when working on small-diameter rings.



Mechanical Setup

1. Unscrew the rear height-adjustment screws.

2. Raise the frame to accommodate ring height.

3. Re-tighten for Z-axis rigidity.

4. Connect the Pixi laser head to the ARC1.0 control unit.

5. Connect USB to computer.

6. Power on the machine.

Proper alignment ensures consistent laser beam spot size, which directly affects edge sharpness and fill uniformity.

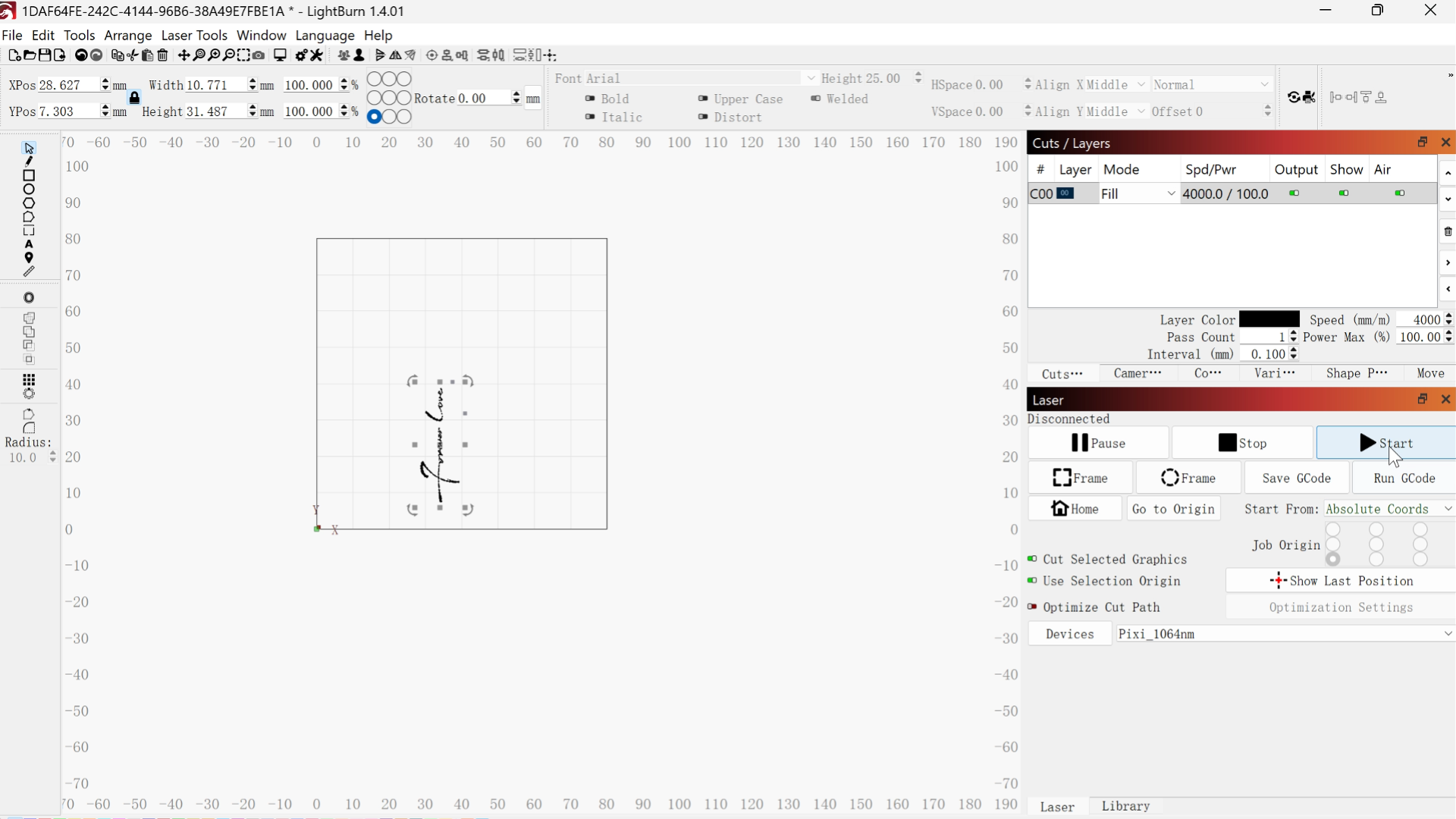

Step 2: Configure LightBurn for Coated Stainless Steel

Open LightBurn and confirm device recognition.



Material Profile

You are engraving:

·  Material: Coated stainless steel ring

·  Mode: Fill engraving

·  Objective: High contrast ring engraving



Engraving Parameters

For this application:

·  Fill Speed: 350 mm/min

·  Power: 100%

·  Passes: 1



These metal marking parameters are optimized for:

·  Clean surface vaporization

·  Minimal thermal diffusion

·  Single-pass engraving efficiency



Why 350 mm/min?

At 1.5W infrared output, this speed produces sufficient energy density to remove coating without overheating the substrate. Slower speeds may enlarge the heat affected zone; faster speeds risk incomplete coating removal.

When dialing in settings for jewelry laser engraving, adjust speed before reducing power to maintain beam consistency.

Step 3: Artwork Placement & Framing

Drag your vector artwork into LightBurn.



For steel ring engraving:

·  Use bold vector lines for logo engraving on steel.

·  Avoid ultra-thin strokes below 0.1 mm.

·  Scale design proportionally to ring curvature.

This is especially important for custom engraved wedding rings or personalized steel bands, where aesthetic precision defines value.



Framing Procedure

Click the “Frame” function.

The laser head will trace the engraving boundary without firing. This step prevents:

·  Misalignment

·  Off-center engraving

·  Material waste

For small business jewelry engraving, framing twice is best practice.

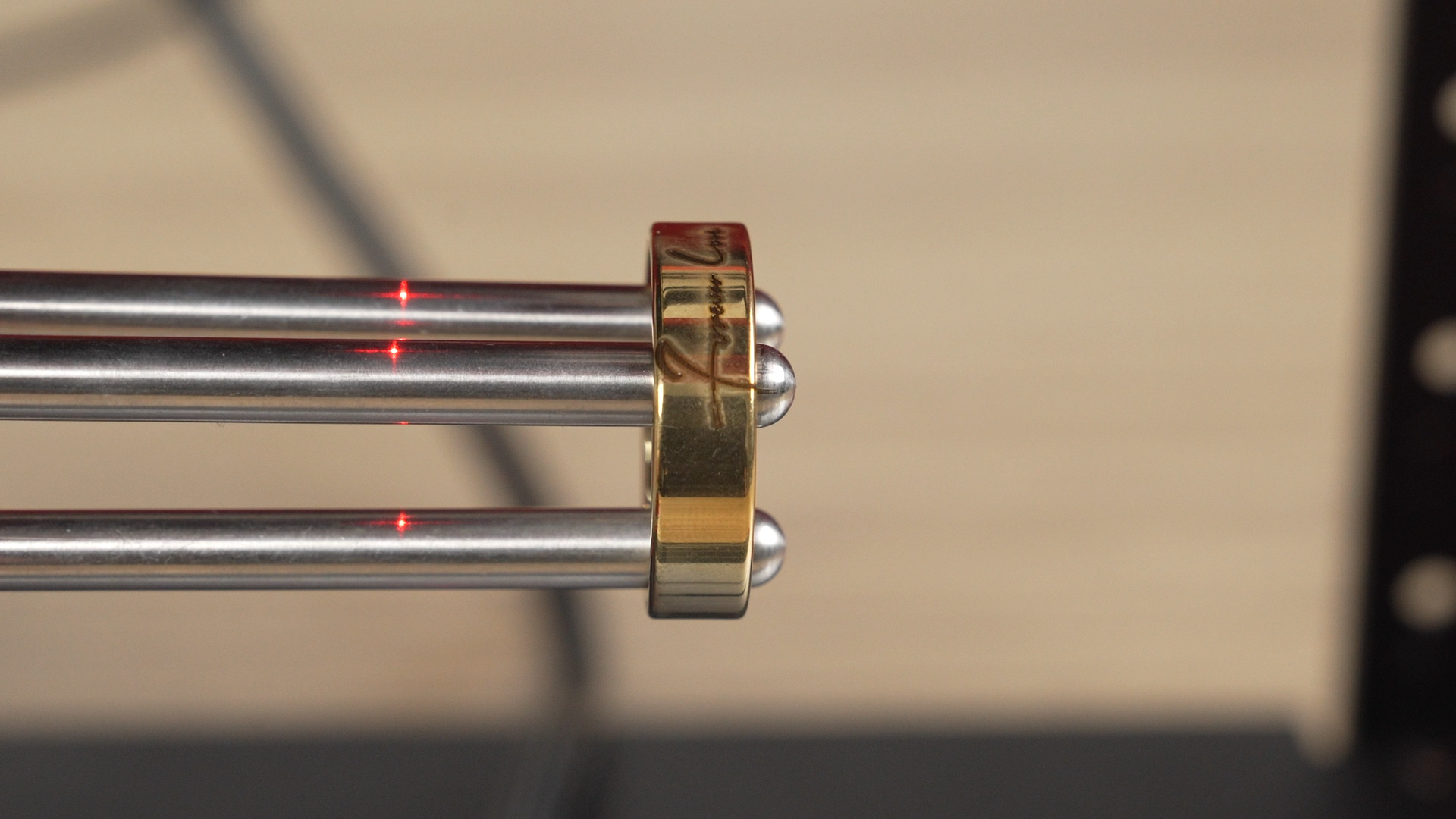

Step 4: Execute the Steel Ring Laser Engraving

Confirm:

·  Proper laser focus calibration

·  Ring stability

·  Correct engraving area preview

Click Start.

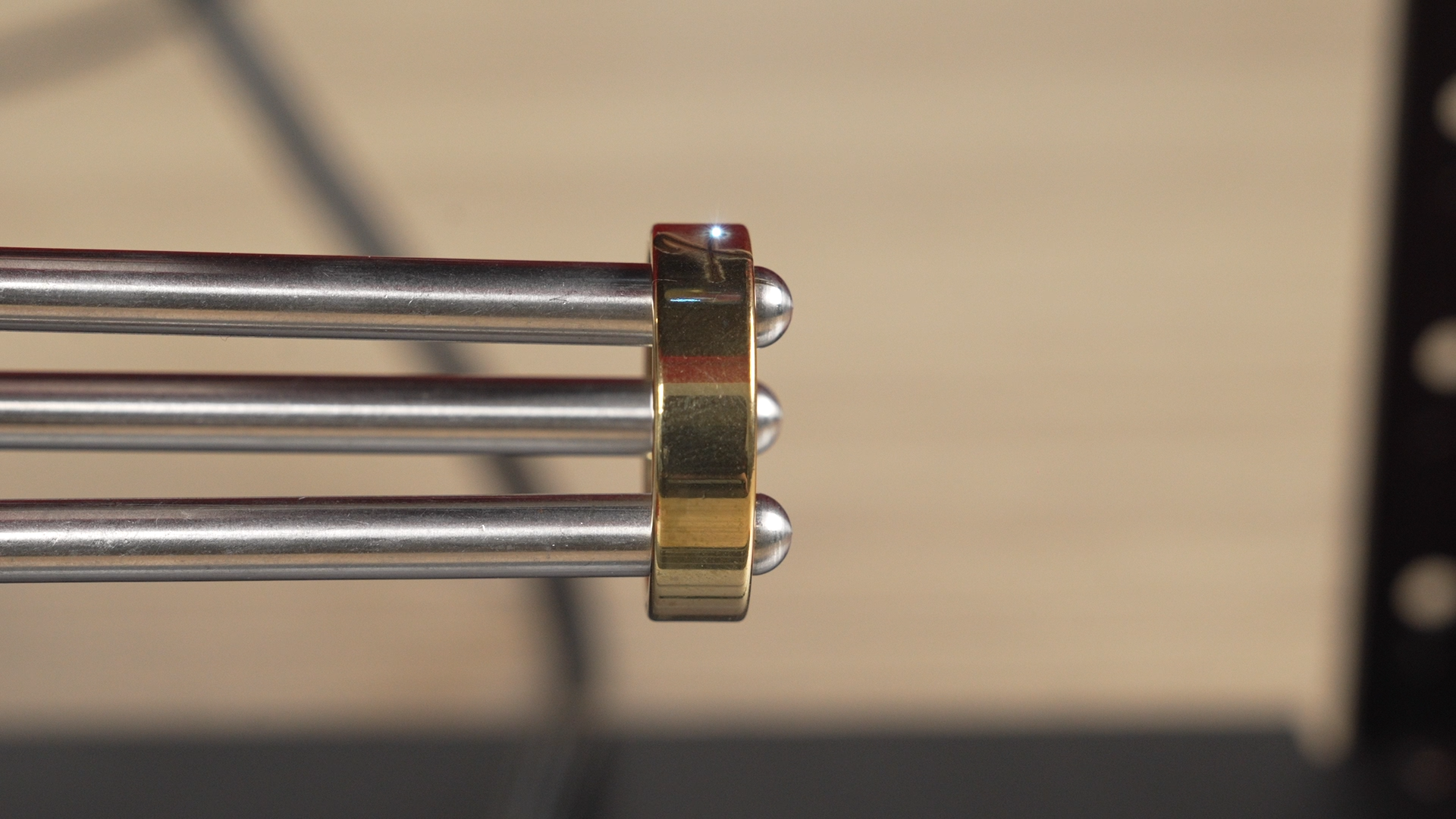

The 1064nm beam begins scanning in fill mode. What’s happening physically:

·  Infrared energy penetrates coating.

·  Coating undergoes rapid vaporization.

·  Underlying polished steel is exposed.

·  Contrast forms instantly.

Because this is coating ablation, structural integrity remains intact. You are affecting microns of surface material.



With these settings (350mm/min, 100% power, 1 pass), the process is:

·  Fast

·  Controlled

·  Thermally stable



If engraving appears uneven:

·  Increase passes instead of lowering speed dramatically.

·  Verify focus distance.

·  Confirm scan line interval consistency.

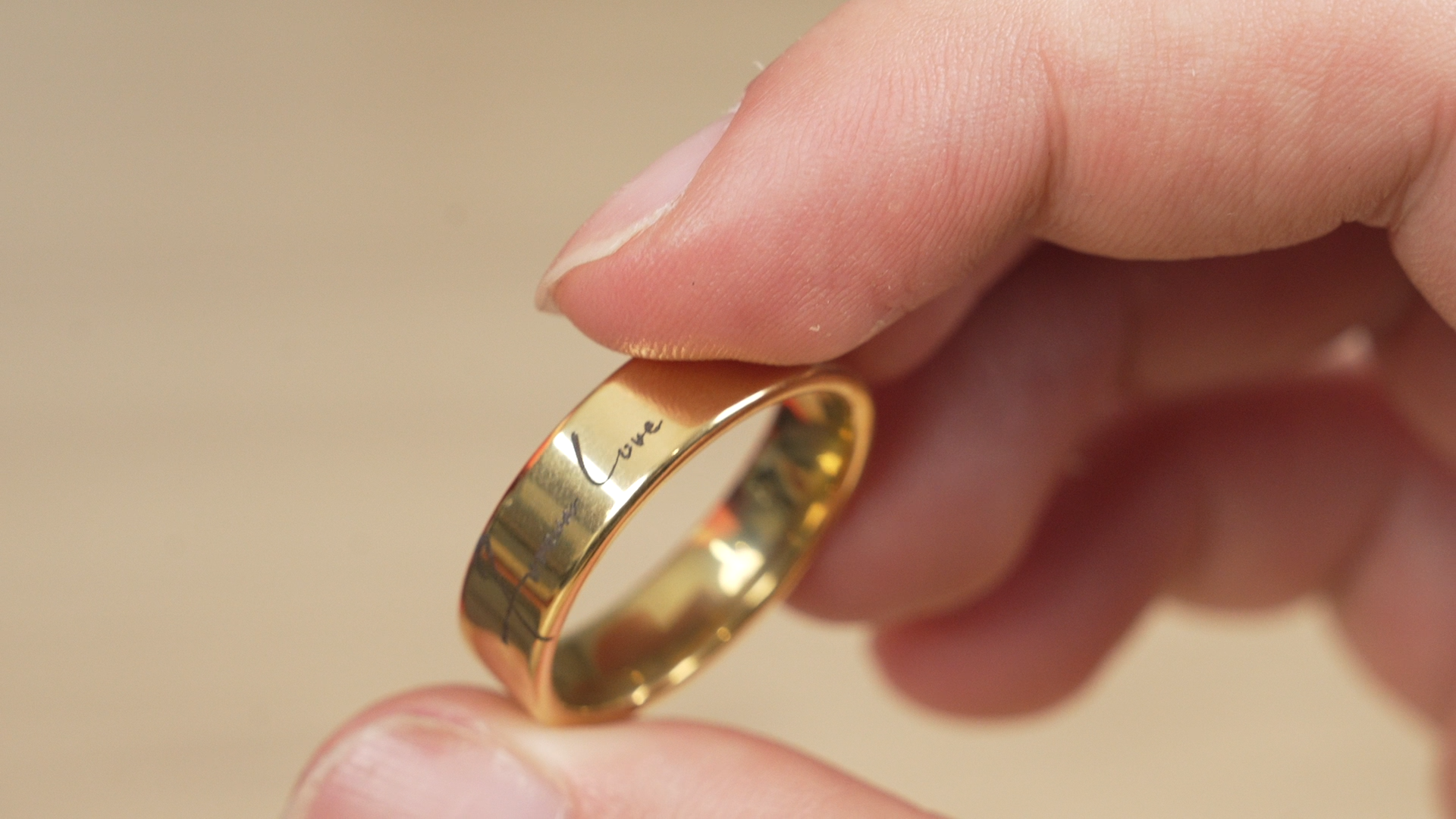

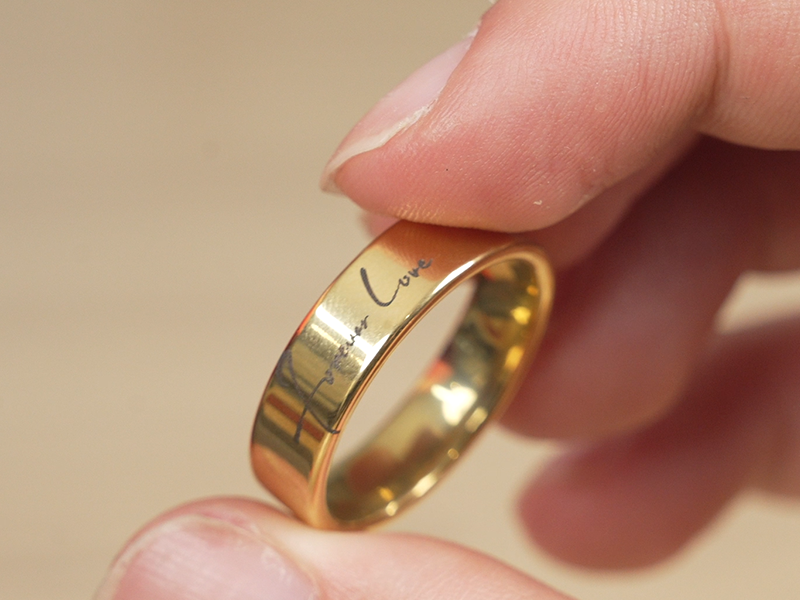

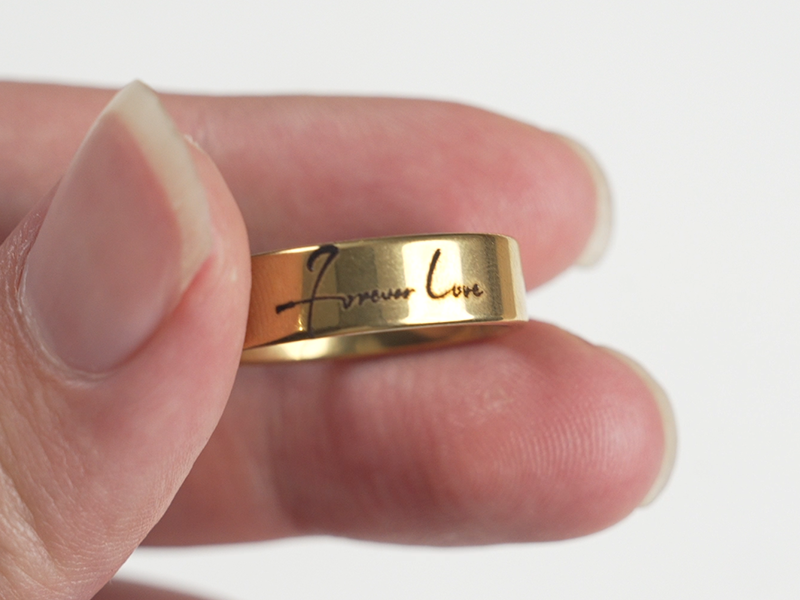

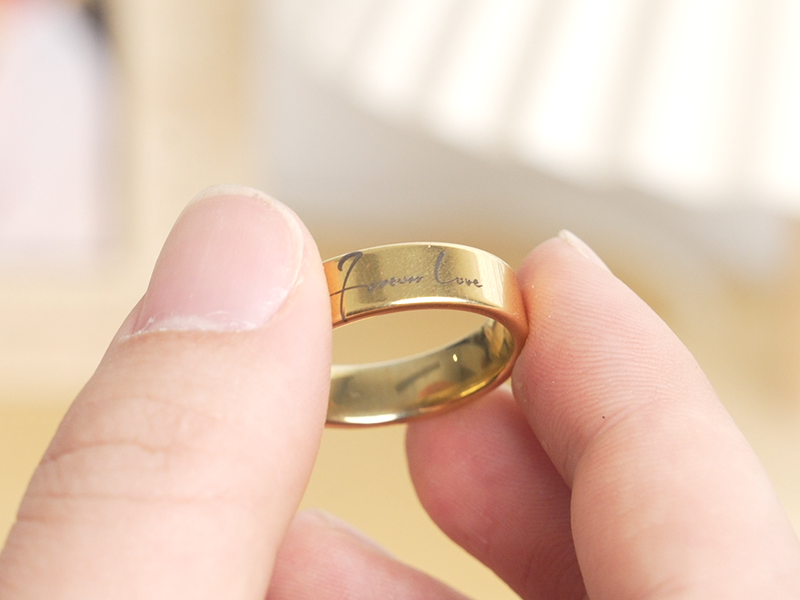

Step 5: Inspection, Cleaning & Quality Control

After engraving:

1. Allow brief cooling.

2. Wipe with alcohol to remove residue.

3. Inspect under bright lighting.



Evaluate:

·  Edge crispness

·  Fill consistency

·  Uniform coating removal

·  Absence of discoloration



High precision laser marking should produce:

·  Sharp vector edges

·  Clean contrast

·  No warping

·  No surface bubbling

If discoloration occurs outside the engraving zone, reduce energy density by slightly increasing speed.

Technical Summary (Reference Configuration)

Machine: AlgoLaser Pixi 1064nm 1.5W
Material: Coated steel ring
Mode: Fill
Speed: 350 mm/min
Power: 100%
Passes: 1
Software: LightBurn

This setup is optimized for metal surface engraving, not deep cutting.

1064nm vs 455nm: Why Infrared Wins for Metal

For those comparing diode laser vs infrared laser systems:

Feature

455nm Blue Diode

1064nm Infrared

Metal Absorption

Low

High

Reflectivity

High

Reduced

Best Use

Wood, acrylic

Metal jewelry

Steel Ring Engraving

Inefficient

Ideal

If your focus is jewelry engraving machine for beginners, especially for coated stainless steel or anodized metal engraving, a 1064nm platform offers superior results.

Commercial Applications

Steel ring engraving isn’t just a hobby workflow. It supports:

·  Personalized steel band engraving

·  Name engraving on rings

·  Custom engraved wedding rings

·  Etsy laser engraved rings

·  Custom metal branding

·  Industrial part marking

For small business laser engraver setups, the Pixi’s compact metal marking machine footprint makes it ideal for studio or home workshops.

6 Frequently Asked Questions

1. What laser is best for steel jewelry?

A 1064nm infrared laser engraver provides optimal wavelength compatibility and marking precision.



2. Can I engrave bare stainless steel?

Yes, but at 1.5W, expect surface marking rather than deep carving.



3. Is one pass enough for coating removal?

For most coated stainless steel rings, yes. If coating is thick, use pass count optimization rather than extreme power adjustments.



4. Will this damage the ring?

No. This is controlled coating ablation, not structural material removal.

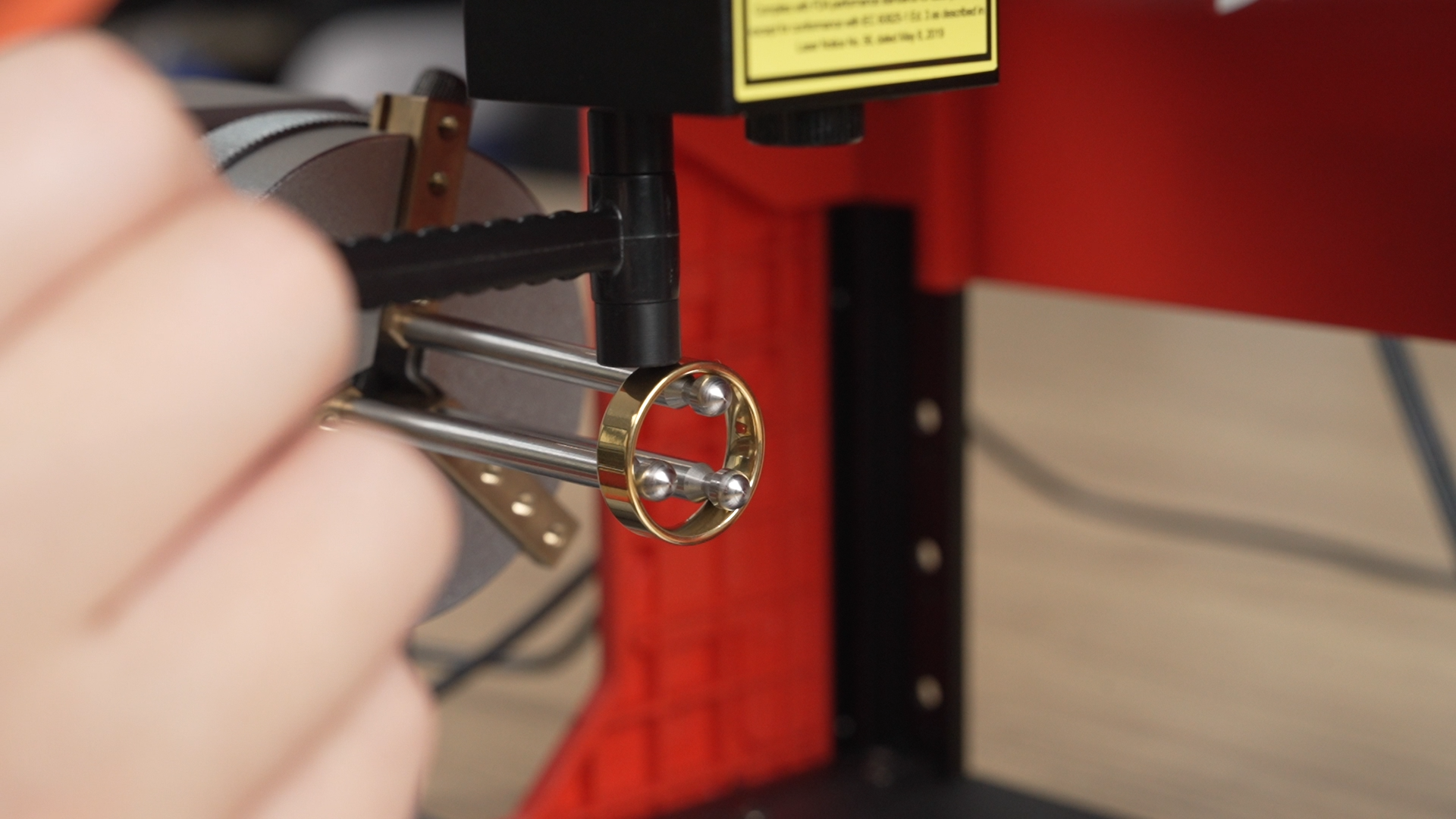

5. Can I engrave inside the ring?

Yes, with proper jigging or a rotary attachment to maintain consistent focal distance.



6. What are the best settings for coated metal engraving?

·  For this setup:

·  350 mm/min

·  100% power

·  1 pass

Fine-tune speed depending on coating thickness and contrast requirements.

Final Thoughts from a Laser Engraving Geek

Steel ring laser engraving requires understanding:

·  Wavelength physics

·  Thermal behavior of metals

·  Energy density control

·  Surface chemistry of coatings

Using the AlgoLaser Pixi 1.5W 1064nm Infrared Smart Laser Engraver with Enclosure transforms metal marking from experimental guesswork into repeatable precision manufacturing.



If your goal is high-contrast steel ring engraving with clean edges, minimal heat spread, and professional results, a 1064nm infrared platform is not optional—it’s foundational.



Precision matters.
Wavelength matters.
Parameters matter.



That’s how you laser engrave a steel ring like a pro.
