Laser Cut Paulownia Wood Heart Jigsaw Puzzle

Materials Needed

12mm Paulownia Wood

AlgoOS Laser System →

Machine Used

AlgoLaser Delta 40W

Laser Cutting

Line 1/Speed 1

200

Power

100%

Quality

High

Pass

How to Laser Cut a Paulownia Wood Heart Jigsaw Puzzle

Creating a personalized heart-shaped jigsaw puzzle from Paulownia wood with a laser engraver is a fantastic way to make a unique gift for loved ones. Whether you’re looking to create a special puzzle for a wedding, anniversary, or simply a heartfelt gesture, the precision and detail that a laser engraver provides are second to none.

In this step-by-step guide, I will walk you through the entire process of creating a Paulownia wood heart jigsaw puzzle using an AlgoLaser Delta 40W. With this advanced laser engraver, you’ll be able to craft a beautiful, intricate jigsaw puzzle in just a few simple steps. Along the way, I’ll provide tips and answer frequently asked questions to ensure your project goes smoothly.

Laser Cut Paulownia Wood Heart Jigsaw Puzzle 01

Materials and Tools You’ll Need

Before starting the project, ensure that you have the following materials and tools ready:

AlgoLaser Delta 40W Laser Engraver
12mm Paulownia Wood (ideal for cutting and engraving)
Acrylic Paint (for coloring the puzzle pieces)
Design Software (LightBurn, Inkscape, or similar to create your puzzle pattern)
Measuring Tools (optional, for precise alignment)
Personal Protective Equipment (safety glasses and gloves)
USB Flash Drive (to transfer your design file to the laser engraver)

How to Laser Cut a Paulownia Wood Heart Jigsaw Puzzle 002

Step 1: Prepare the Paulownia Wood for Cutting

The first step in creating your laser-cut heart jigsaw puzzle is to prepare the Paulownia wood that you will use for the puzzle pieces.

1.1. Put the Paulownia Wood into the Machine

Place the 12mm thick Paulownia wood onto the engraving bed of your AlgoLaser Delta 40W. Ensure that the wood is securely positioned so that it will not move during the cutting process. You can use clamps or the built-in fixing system to hold the wood in place.

Tip: Make sure the wood is smooth and flat to avoid any uneven cuts or shifts in the material during the process.

1.2. Adjust the Focal Length of the Laser Module

The next crucial step is to adjust the focal length of the laser module. Accurate focusing is key to ensuring clean and precise cuts, especially when working with a thicker material like Paulownia wood. A well-focused laser ensures the edges of each jigsaw piece are smooth and without scorch marks.

Tip: Check the manufacturer’s instructions for adjusting the focus on the AlgoLaser Delta 40W. Usually, this is done by moving the laser module up or down to the correct height.

How to Laser Cut a Paulownia Wood Heart Jigsaw Puzzle 003

Step 2: Select the Cutting Blueprint

Now that your wood is ready, it’s time to select the cutting blueprint for your heart jigsaw puzzle.

2.1. Open the Project and Select the Cutting Blueprint

Click on "Project" in the machine’s interface and browse through the available options to select the cutting blueprint for your jigsaw puzzle. If you’ve already created your custom heart jigsaw puzzle design, you can upload it to the laser engraver via USB drive or directly through the software if your machine supports it.

2.2. Open Material Selection and Choose Paulownia Wood

After selecting the design, open the material selection menu and choose Paulownia wood from the list. This is crucial because the cutting parameters are tailored to this material, ensuring optimal cutting and engraving.

Tip: If you don’t see Paulownia wood listed, you can create custom settings based on the material's thickness (12mm) and characteristics.

How to Laser Cut a Paulownia Wood Heart Jigsaw Puzzle 004

Step 3: Set Parameters and Adjust the Thickness

Before starting the cutting process, you must set the engraving parameters and ensure that everything is correctly adjusted for Paulownia wood.

3.1. Adjust the Thickness of the Wood Board

Since you are working with 12mm thick Paulownia wood, it’s essential to input the correct thickness into the settings. If the thickness of your wood differs from 12mm, you will need to adjust the settings accordingly. The cutting speed and power might need fine-tuning to accommodate variations in material thickness.

3.2. Set the Cutting Parameters

Here are the recommended cutting parameters for Paulownia wood:

Speed: 200mm/min
Power: 100%
Quality: High
Passes: 1 (One pass should be enough to cut through 12mm thick wood)

Make sure these settings match the material and ensure that your laser engraver is operating at its optimal performance.

How to Laser Cut a Paulownia Wood Heart Jigsaw Puzzle 005

Step 4: Position the Design and Preview the Cutting Area

At this point, your material is ready, and your cutting parameters are set. Now, it’s time to position your design and prepare the laser engraver for the actual cutting process.

4.1. Drag the Picture to the Cutting Position

Now, drag your heart-shaped jigsaw puzzle design into the engraving area. Position it so that it aligns perfectly with the 12mm Paulownia wood on the engraving bed. You’ll want to make sure the pieces of the puzzle fit snugly within the wood, leaving enough space around the edges to avoid any overlap or cutting mistakes.

4.2. Preview the Border Range

Before proceeding, click the "Preview" button to check the border of the cutting area. This will help you confirm that the design fits within the cutting boundaries and that the laser will not cut outside of the intended area.

Tip: Double-check the dimensions of the heart design to ensure it aligns with the size of the wood you’ve placed in the machine.

How to Laser Cut a Paulownia Wood Heart Jigsaw Puzzle 006

Step 5: Start the Cutting Process

You’re now ready to start the cutting process!

5.1. Click “Start” to Begin Cutting

Once you’ve reviewed the design and settings, click "Start" on the laser engraver’s control panel. The AlgoLaser Delta 40W will begin cutting the heart-shaped puzzle pieces from the 12mm Paulownia wood.

Tip: Stay close to the machine during the cutting process to ensure everything is proceeding smoothly. Keep an eye on the quality of the cuts.

5.2. Take Out the Cut Wood Boards

Once the cutting is complete, carefully remove the cut puzzle pieces from the engraver. You should now have a beautifully cut heart-shaped jigsaw puzzle made of Paulownia wood.

How to Laser Cut a Paulownia Wood Heart Jigsaw Puzzle 007

Finishing Touches: Adding Color and Assembly

Now that your jigsaw puzzle pieces are cut, you can proceed with the final touches.

6.1. Use Acrylic Paint to Color the Wooden Boards

Use acrylic paint to add color to the puzzle pieces. You can paint each piece a different color or stick to a single color scheme, depending on your preferences. Make sure to let the paint dry thoroughly before proceeding to the next step.

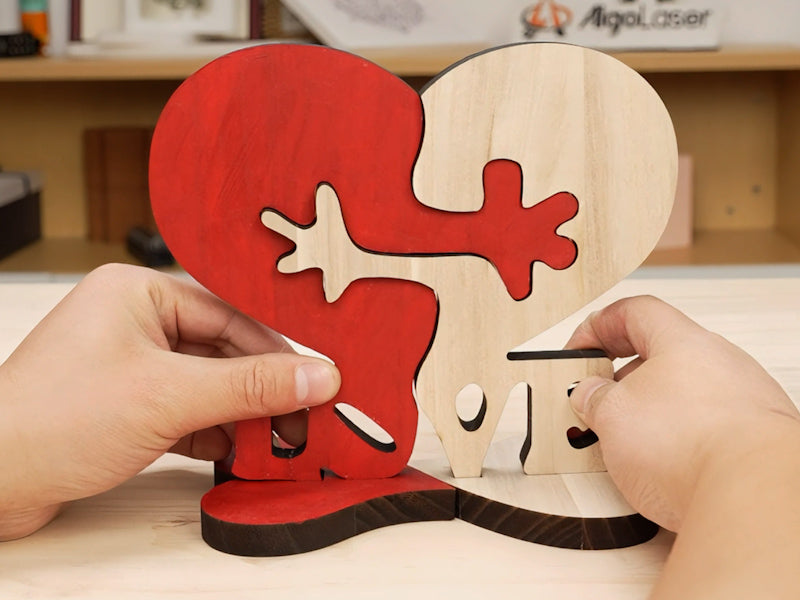

6.2. Piece the Boards Together

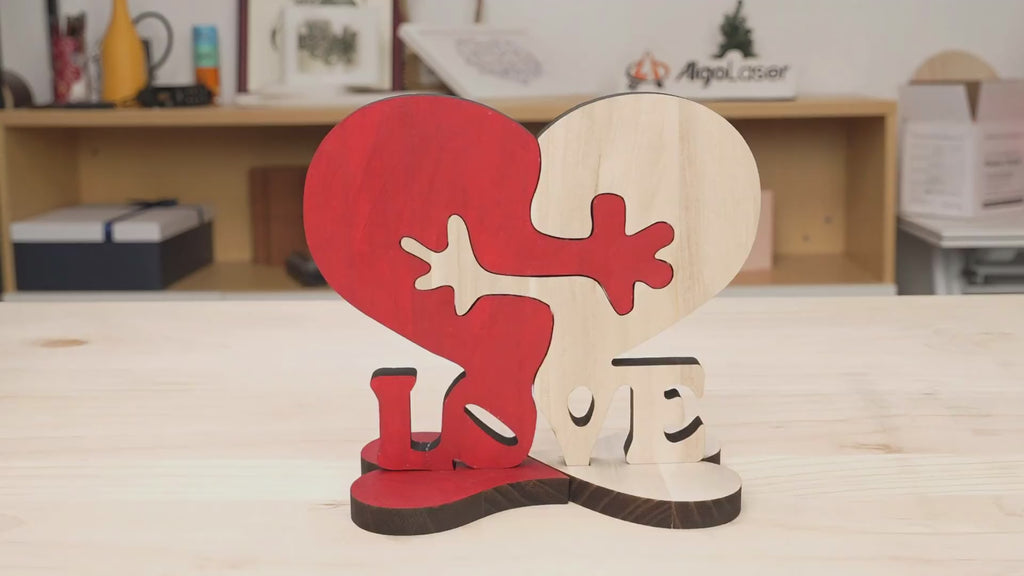

Once the paint has dried, you can begin piecing the puzzle together. You should have a beautiful heart-shaped jigsaw puzzle made from Paulownia wood that’s ready to be given as a thoughtful gift.

Frequently Asked Questions (FAQs)

1. Can I use any type of wood for this project?

While you can use other types of wood, Paulownia wood is ideal due to its light weight, ease of cutting, and durability. It also produces clean cuts and minimal smoke during engraving.

2. How do I adjust the laser settings for different materials?

For materials other than Paulownia wood, adjust the speed, power, and passes based on the material’s thickness and hardness. For thicker woods, you may need to increase the number of passes.

3. Why is the focus adjustment so important?

The laser’s focus is crucial for precision cutting. Incorrect focusing can lead to poor-quality cuts, excessive burning, or incomplete cuts. Always ensure that the laser is properly focused before beginning the cut.

4. Can I use the same design for both cutting and engraving?

Yes, you can create designs that include both cutting and engraving elements. However, for Paulownia wood, it’s best to focus on cutting the pieces first and then engrave any designs or text afterward.

5. How can I ensure that my puzzle pieces fit together perfectly?

Double-check your design’s measurements before cutting and ensure that the spacing between the puzzle pieces is consistent. Using the "Preview" function in your software will help avoid mistakes.

6. What do I do if the puzzle pieces are hard to remove from the wood?

If the pieces are stuck, gently use a craft knife or a small flat tool to lift the pieces without damaging the wood.

How to Laser Cut a Paulownia Wood Heart Jigsaw Puzzle 008

Conclusion

Creating a heart-shaped jigsaw puzzle from Paulownia wood is a fun and rewarding project that combines craftsmanship with precision technology. With the AlgoLaser Delta 40W, you can easily transform a simple piece of wood into a beautiful, personalized puzzle that makes for a unique and thoughtful gift.

By following the steps outlined above and adjusting your laser settings for Paulownia wood, you can produce a flawless puzzle that is sure to impress. Whether you're gifting it for Valentine’s Day, an anniversary, or simply as a creative gift idea, your laser-cut jigsaw puzzle will be a work of art to treasure.
