Before engraving, you need to configure the engraving settings. This includes setting the right parameters for your laser engraver and ensuring that your image or text is properly adjusted for the metal dog tags.
Set up the engraving parameters:
Click on “Settings” then “Machine” then “Laser”
Access the AlgoOS system on your machine. Tap Settings, then select Machine, followed by Laser. This will allow you to choose the correct laser module and set the power, speed, and other parameters.
Select “2W 1064nm”

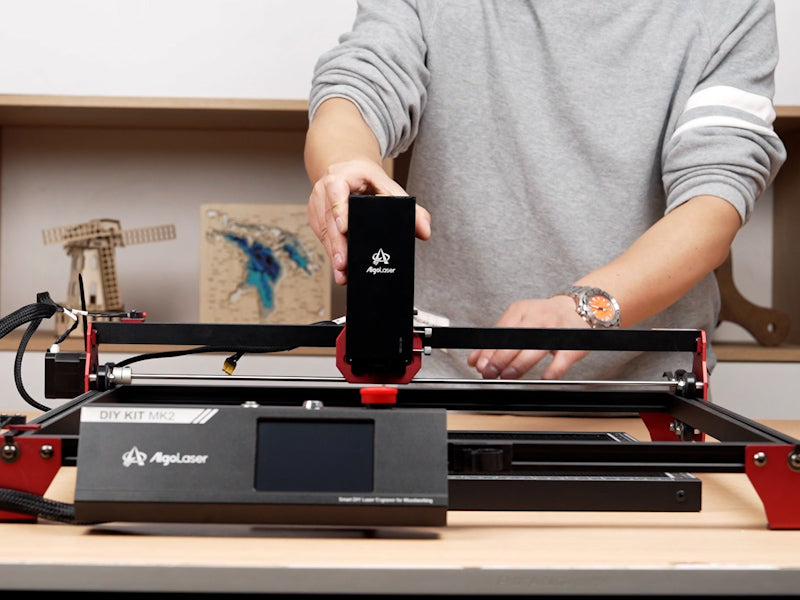

From the available options in the AlgoOS, select the 2W 1064nm laser module you installed earlier. This ensures that the machine uses the correct power and wavelength for engraving stainless steel.
Select the image to be engraved
On the AlgoOS screen, load the image file you want to engrave onto the dog tag. You can select the image from a USB stick or SD card that’s inserted into the engraver. Popular file types like JPG, PNG, or BMP work well for engraving.
Set the engraving parameters
Adjust the settings for the engraving:
Fill-Speed: 300mm/min (moderate speed for metal engraving)
Power: 100% (full power ensures deep engraving)
Line Interval: 0.05mm (creates finer, more detailed lines)
Pass: 1 (a single pass is usually sufficient for engraving on stainless steel)
Set the size and position of the picture

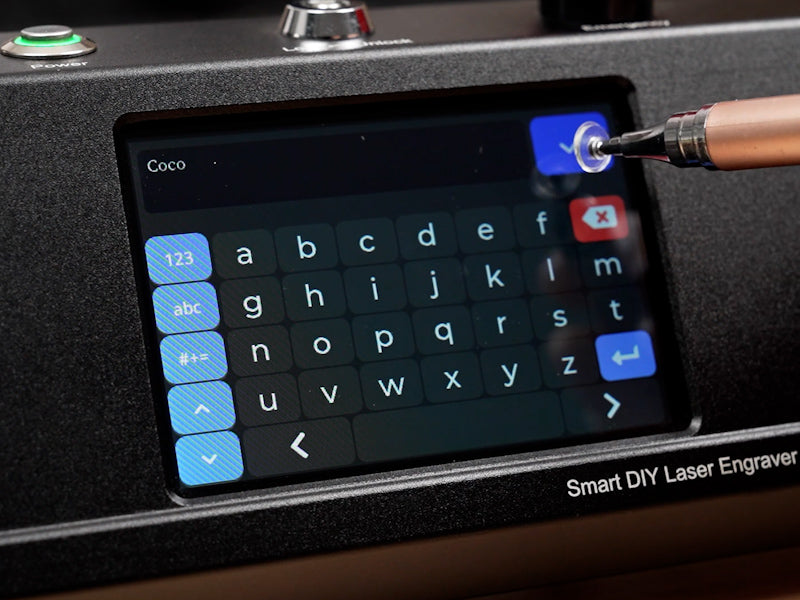

Use the AlgoOS interface to adjust the position and size of your image. The system allows you to move and resize the image as needed, ensuring it fits perfectly within the engraving area of the dog tag.
Start engraving

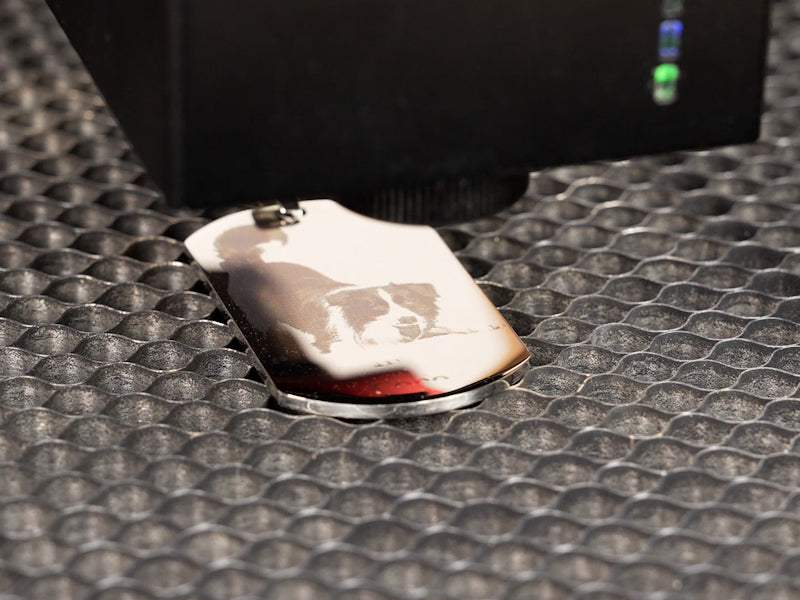

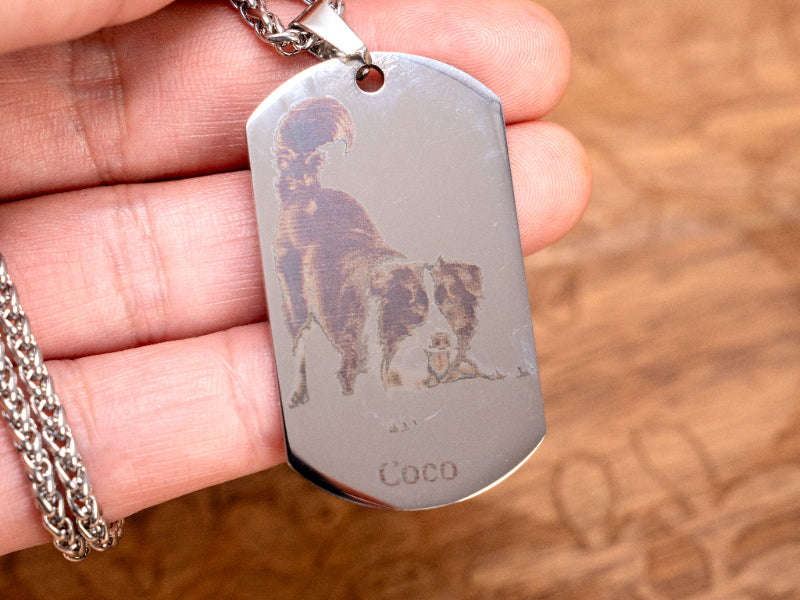

Once all settings are configured and you’re satisfied with the image position, click the Start button on the screen. The engraver will begin the engraving process, and you’ll see the laser module etch the design into the stainless steel tag.
