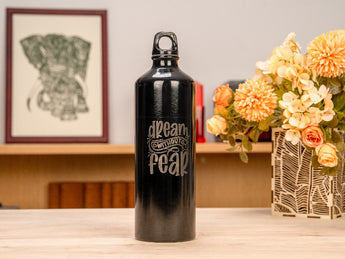

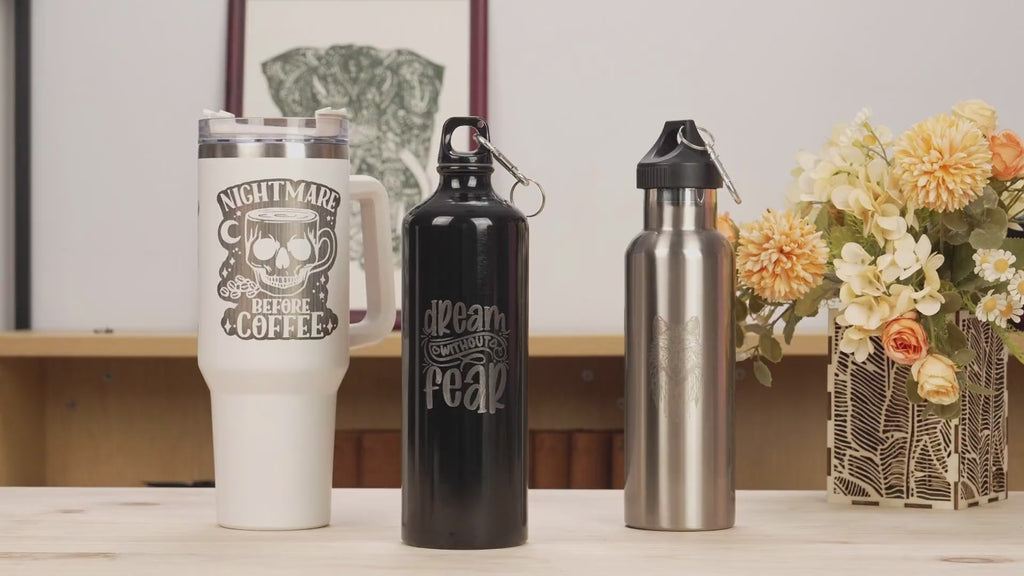

Laser Engrave Sports Water Bottls

Materials Needed

Coated Metal Sports Water Bottls

Machine Used

Laser Engraving

Line 1/Speed 1

500

Power

100%

Quality

High

Pass

1

  • Laser Engraving Sports Water Bottles with the AlgoLaser Pixi 5W: A Step-by-Step Guide

Laser engraving has become a popular and effective method for personalizing a wide range of items. Among these, sports water bottles, especially coated metal ones, make for an excellent canvas for engraving. We’ll walk you through the entire process of laser engraving sports water bottles using the AlgoLaser Pixi 5W Laser Engraver, complete with all the necessary steps, tips, and parameters to achieve flawless results. Whether you're engraving your company logo, a personal design, or a meaningful quote, the laser engraver provides a high-precision way to bring your ideas to life.

Materials Needed:

·  AlgoLaser Pixi 5W Laser Engraver

·  Coated metal sports water bottles

·  Engraving image or design file (e.g., your custom logo or artwork)

·  ARR roller for cylindrical engraving

·  Power cord and connection cables

Step 1: Setting Up the Laser Engraving Machine

Before you begin engraving, it’s essential to properly set up the AlgoLaser Pixi 5W Laser Engraver for optimal performance.

1. Insert the Connection Cable: Begin by inserting the connection cable into the machine. Plug the wide end into the ARR port and the narrow end into Pixi. These connections will ensure that your engraving machine operates seamlessly during the process.

2. Insert the Power Cord: Next, plug in the power cord to the AlgoLaser Pixi 5W. Once connected, turn on the machine. You should see the screen light up, indicating that the machine is powered on and ready to go.

3. Select the Engraving Image: Using the machine’s interface, select the image or design you want to engrave. This could be a logo, a text design, or anything you want to personalize the sports water bottle with. Make sure your design is compatible with the machine’s format requirements (e.g., a high-resolution image or vector file).

Step 2: Preparing the Engraving Area

In this step, you’ll need to prepare the engraving area by adjusting the machine settings and positioning the water bottle properly.

1. Select Engraving Parameters: Once you’ve chosen your image, set the engraving parameters. This includes adjusting the speed, power, and quality settings. For coated metal sports water bottles, we recommend the following:

·  Fill Speed: 500mm/min

·  Power: 100%

·  Quality: High

·  Passes: 1 (since coated metal requires a single pass for best results)

2. Set the Image Size: Ensure that the image size matches the engraving area on the water bottle. This is where adjusting the scale of the design becomes crucial for achieving proportional and clear engraving.

3. Adjust the Position: With your image size set, you’ll need to adjust the position of the design within the engraving area. Place the sports water bottle onto the ARR roller, ensuring it is aligned perfectly with the machine’s frame. This ensures that your engraving will be placed exactly where you want it on the bottle’s surface.

Step 3: Adjusting the Laser Focus

Properly focusing the laser is critical to achieving a high-quality engraving. If the laser is not focused correctly, the engraving can appear blurry or faint.

1. Rotate the Z-Axis Knob: Adjust the Z-axis knob to fine-tune the laser focus distance. This ensures that the laser module is set to the correct height for optimal engraving.

2. Open the Protective Lid: For safety and precision, always make sure the protective lid is open when adjusting the focus. This prevents any damage to the machine during the adjustment process.

3. Tighten the Screws: After adjusting the focus and ensuring the positioning is accurate, tighten the screws on the ARR roller. This secures the position of the water bottle, ensuring that it stays in place while the engraving process is underway.

Step 4: Engraving the Design

With everything set up and properly aligned, it’s time to start engraving the sports water bottle.

1. Select Working Mode: On the machine’s screen, click on “Settings” and then select the “Machine” option. From there, choose the “ARR Roller Mode”, which is specifically designed for cylindrical objects like your sports water bottle.

2. Switch to “Horizontal” Mode: Ensure that the machine is in Horizontal mode, as this ensures the laser will engrave the water bottle evenly along its surface.

3. Start Engraving: Once the machine is set up in the correct mode, press the “Start” button. The laser engraver will begin the engraving process, following the pre-set parameters and design you've chosen. You will see the laser carefully etching the design onto the water bottle’s surface.

Step 5: Final Adjustments and Completion

After the engraving process is complete, you’ll need to make a few final adjustments to ensure that the bottle is fully engraved and ready for use.

1. Close the Top Lid: Once engraving is finished, open the top lid, then close it carefully after ensuring that no parts are obstructed.

2. Press Thumbs Against Support Columns: Gently press your thumbs against the support columns on both sides of the ARR roller. Lift the roller upwards to remove the engraved sports water bottle from the machine.

3. Check the Engraving: Inspect the engraving for quality and precision. If everything looks good, your custom water bottle is now ready to use or give away.

Engraving and Cutting Parameters for Sports Water Bottles

When engraving coated metal sports water bottles, specific settings are essential to ensure high-quality results. Here are the recommended parameters for the AlgoLaser Pixi 5W laser engraver:

·  Materials: Coated metal sports water bottles

·  Fill Speed: 500mm/min

·  Power: 100%

·  Quality: High

·  Passes: 1

·  Line Interval: 0.05mm

These settings are ideal for ensuring that the engraving is deep enough to be clearly visible while maintaining the sleek finish of the bottle.

FAQs About Laser Engraving Sports Water Bottles

1. Can I engrave designs on all types of sports water bottles?

You can engrave designs on many types of sports water bottles, but the material is crucial. Ensure that the bottle has a coated metal surface, as this works best with the AlgoLaser Pixi 5W laser engraver.

2. What kind of designs work best for engraving?

Simple and bold designs, such as logos, monograms, and text, work best for laser engraving on sports water bottles. Intricate designs with lots of small details may not engrave well, depending on the resolution and size of the image.

3. Do I need to use any software to create the designs?

No, the AlgoOS system integrated into the laser engraver allows you to directly engrave images without the need for additional software like LightBurn or LaserGRBL.

4. How do I maintain my AlgoLaser Pixi 5W laser engraver?

Regular cleaning of the lens, mirrors, and work area is important to maintain optimal performance. Also, ensure that the machine’s cooling system (if applicable) is functioning correctly to prevent overheating.

5. Can I engrave on other types of bottles, like plastic or glass?

While the AlgoLaser Pixi 5W works best on coated metal bottles, you can also experiment with engraving on plastic or glass bottles by adjusting the machine settings, but results may vary.

6. Can I engrave curved surfaces like water bottles?

Yes! The ARR Roller Mode is specifically designed to handle cylindrical objects, like sports water bottles, and ensures the engraving is done accurately along the curve.

Conclusion

Laser engraving sports water bottles is a great way to add a personal touch to your items, whether you’re gifting them or creating custom products for a business. Using the AlgoLaser Pixi 5W Laser Engraver is a straightforward process, and with the right setup, materials, and settings, you can achieve professional-level results. By following these five steps, you’ll be engraving high-quality, custom designs onto coated metal water bottles in no time. Happy engraving!
