Laser Engrave Metal Wedding Rings

Materials Needed

Metal Rings

AlgoOS Laser System →

Machine Used

AlgoLaser Laser Engraver with 1064nm Infrared Laser Module

Laser Cutting

Line 1/Speed 1

300

Power

100%

Line Interval

0.05mm

Pass

How to Laser Engrave Metal Wedding Rings: A Step-by-Step Guide

Engraving metal wedding rings with a laser engraver is a fantastic way to personalize these meaningful symbols of love. The precision and intricate detail offered by a laser engraver make it the perfect tool for creating unique engravings that are both permanent and elegant. In this guide, we will walk through each step of the process for engraving a metal wedding ring using the AlgoLaser Laser Engraver with a 1064nm 2W infrared laser module.

Whether you're engraving a personal message, initials, or a design, this detailed process will ensure your rings come out beautifully. Let's dive into the process and get started!

Materials and Tools You’ll Need

Before you begin, ensure you have the following items prepared for the engraving process:

AlgoLaser Laser Engraver with 1064nm 2W Infrared Laser Module
Metal wedding rings
ARC rotary attachment for engraving cylindrical objects like rings
LightBurn software
Calipers for measuring the diameter of the ring
Fixture to hold the ring securely during engraving
Appropriate machine cables to connect the ARC to the laser engraver
Personal protective equipment (such as safety glasses)

How to Laser Engrave Metal Wedding Rings 00

Step 1: Set Up the Laser Engraver and ARC Rotary Attachment

The first step in engraving your metal wedding ring is to set up the ARC rotary attachment for the AlgoLaser Laser Engraver. This attachment is essential for engraving cylindrical objects like rings.

1.1. Place the ARC into the Engraving Area

Start by placing the ARC rotary attachment in the engraving area. Make sure it's positioned securely, and you can easily access both the machine’s cable ports and the rotary attachment itself.

1.2. Connect the Machine to the ARC

Next, you’ll need to connect the AlgoLaser engraver to the ARC rotary attachment using the appropriate cables.

Insert one end of the cable into the hole of the ARC main unit.
Connect the other end to the Y-axis cable of the laser engraver. This ensures that the rotary attachment will move in sync with the machine during the engraving process.

1.3. Adjust the Angle of the ARC Main Unit

Adjust the angle of the ARC main unit so that it's easier to insert the cable and position the ring in the fixture. Proper alignment is key to ensuring smooth engraving.

How to Laser Engrave Metal Wedding Rings 01

Step 2: Measure and Secure the Metal Wedding Ring

Now that your machine is connected and set up, it’s time to prepare the ring for engraving.

2.1. Measure the Diameter of the Ring

Using calipers, carefully measure the diameter of the metal wedding ring. This measurement is crucial for ensuring the engraving is aligned correctly around the ring's circumference. Be precise when measuring to avoid errors.

Tip: Record the measurement, as you’ll need it in LightBurn later.

2.2. Place the Ring into the Fixture

Place the metal wedding ring into the rotary fixture. This fixture is designed to hold the ring securely while the machine engraves it. Tighten the fixture to ensure the ring won’t move during the engraving process, which could result in misalignment or mistakes.

How to Laser Engrave Metal Wedding Rings 02

Step 3: Adjust the Laser Module and Set Up LightBurn

Now it’s time to get your laser engraver ready for action.

3.1. Move the Laser Module to the Engraving Position

Manually move the laser module to the engraving position. This will help you visualize where the engraving will occur on the ring and allow for fine adjustments.

3.2. Adjust the Focal Length of the Laser Module

Accurate focal length adjustment is essential when engraving on a small, cylindrical object like a ring. Ensure the laser is correctly focused on the surface of the ring, as improper focus can lead to blurred or inconsistent engravings.

Tip: The laser’s focal point should be directly on the ring’s surface to achieve the best results.

How to Laser Engrave Metal Wedding Rings 03

Step 4: Set Up LightBurn Software for Engraving

The next step is to configure your design in LightBurn software, which is the software used to control your AlgoLaser Laser Engraver.

4.1. Open LightBurn and Click "Laser Tools"

Start by opening LightBurn software and navigating to the "Laser Tools" menu. Then select "Rotary Setup". This menu will allow you to configure the settings for the rotary attachment, which is needed for engraving cylindrical objects like rings.

4.2. Select "Chuck" for the Rotary Mode

In the Rotary Setup screen, select "Chuck" mode, as this is the setup most appropriate for engraving a metal wedding ring. This ensures that the ring is properly rotated as the laser module engraves it.

4.3. Turn On the Rotation Function

Enable the rotation function in LightBurn. This will cause the rotary attachment to rotate the ring while the laser module engraves the design, ensuring an even engraving around the ring's entire circumference.

4.4. Enter the Diameter of the Ring

In the rotation settings, enter the diameter of the ring, which you measured earlier. This ensures that the engraving is correctly scaled to the size of the ring.

How to Laser Engrave Metal Wedding Rings 04

Step 5: Finalize the Design and Start the Engraving

Now, it’s time to prepare your design and start engraving the metal wedding ring.

5.1. Drag the Image into LightBurn

Drag the image or design you wish to engrave onto the ring into the LightBurn workspace. The design could include initials, a date, a quote, or any other meaningful symbol. You can create a design using LightBurn’s drawing tools or import an existing image.

5.2. Trace the Image and Adjust

Once the image is in place, right-click on the image and select "Trace Image". This will convert the image into vector paths that the laser engraver can use.

Tip: After tracing, you may want to delete the original bitmap image and keep only the vector version for engraving.

5.3. Rotate and Resize the Design

Rotate the traced image by 90° so that it wraps around the ring in the correct orientation. Adjust the size of the image to fit the engraving area on the ring, ensuring it doesn’t overlap or distort.

5.4. Set the Engraving Parameters

Adjust the engraving parameters in LightBurn according to the settings listed below:

Speed: 300mm/min
Power: 100%
Line Interval: 0.05mm
Passes: 1

These settings are ideal for engraving metal rings with an infrared laser module.

5.5. Preview and Start Engraving

Click on the "Preview" button to check how the engraving will look on the ring. Once you’re satisfied with the preview, click "Start" to begin the engraving process.

How to Laser Engrave Metal Wedding Rings 05

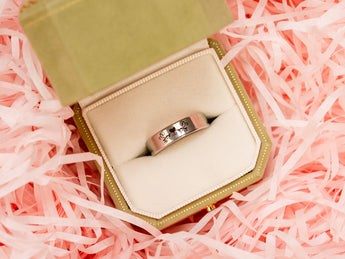

Congratulations! The Ring Has Been Engraved

Once you’ve hit "Start", the laser engraver will begin engraving the metal wedding ring. The ring will rotate as the laser module etches the design onto the surface, ensuring a smooth and consistent engraving all around the ring.

Tip: Stay close to the machine during the engraving process to monitor the progress and ensure that everything is going smoothly.
Once the engraving is complete, carefully remove the ring from the fixture and inspect the engraving. You should have a beautifully engraved metal wedding ring that’s ready to be worn.

Once the engraving is complete, carefully remove the ring from the fixture and inspect the engraving. You should have a beautifully engraved metal wedding ring that’s ready to be worn.

How to Laser Engrave Metal Wedding Rings 06

Frequently Asked Questions (FAQs)

1. Can I engrave any type of metal ring?

Yes, you can engrave most types of metal rings using an infrared laser module. However, some metals, such as gold and silver, may require special settings or more passes.

2. What should I do if the engraving is not clear?

If the engraving appears faint or unclear, adjust the power or speed settings in LightBurn. You may also need to clean the ring before engraving to remove any oils or dirt that could affect the laser’s focus.

3. Do I need to use a rotary attachment for engraving rings?

Yes, a rotary attachment is essential for engraving rings as it allows the ring to rotate while the laser engraver works, ensuring a uniform engraving around the entire circumference.

4. Can I engrave a ring with a gemstone in it?

It is not recommended to engrave rings with gemstones using a laser engraver, as the heat may damage the stones. It’s best to engrave the ring before setting the stones.

5. What laser module is ideal for engraving metal rings?

The 1064nm infrared laser module is ideal for engraving metal, as it can effectively engrave on materials like stainless steel, titanium, and gold.

6. How long does the engraving process take?

The engraving process typically takes anywhere from 10 to 30 minutes, depending on the design size and complexity.

How to Laser Engrave Metal Wedding Rings 07

Conclusion

Engraving metal wedding rings with a laser engraver is a rewarding process that results in a beautifully personalized item. By following these steps and utilizing the AlgoLaser Laser Engraver with a 1064nm 2W infrared laser module, you can create unique and lasting engravings that capture the essence of a couple’s love.
