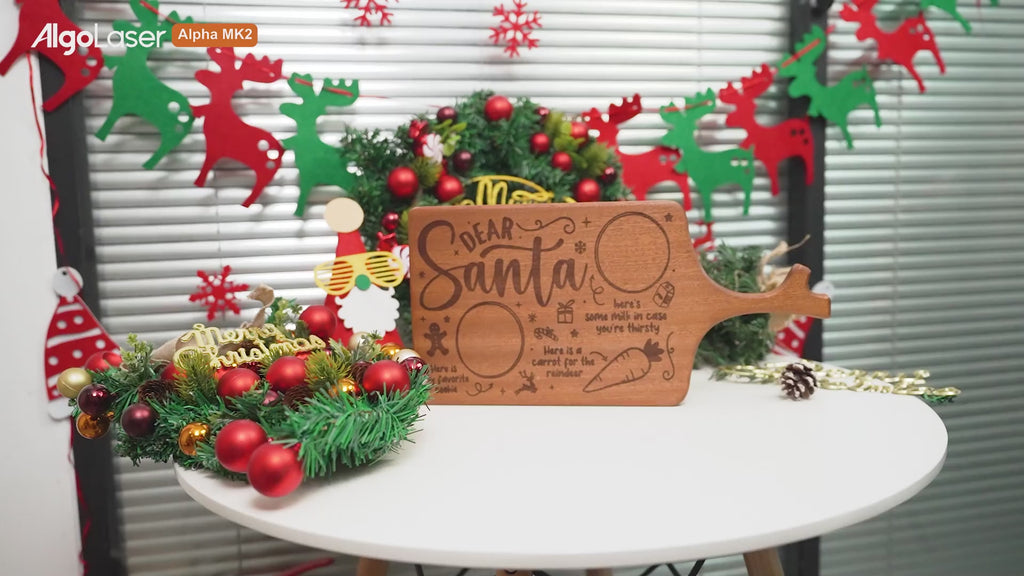

Laser Engrave Cutting Board

Materials Needed

Suede Phone Case

AlgoOS Laser System →

Machine Used

AlgoLaser Alpha MK2

Laser Engraving

Line 1/Speed 1

10000

Power

100%

Line Interval

0.1mm

Pass

Laser Engraving Wooden Cutting Boards: A Five-Step Process for Precision and Perfection

Laser engraving wooden cutting boards is a fantastic way to create personalized kitchen items or artistic home decor. Whether you're engraving a family name, intricate patterns, or a custom design, the precision and versatility of a laser engraver will allow you to achieve stunning results. We’ll walk through five key steps to ensure your engraving project is successful, from adjusting focus to starting the engraving.

Step 1: Adjust Focus Using the Focus Column

The first and most critical step in any laser engraving project is adjusting the focus. The focus is the point where the laser beam is the sharpest, and ensuring it’s correctly set will give you a clean, crisp engraving.

Why Focus Matters:
A focused laser beam allows for greater precision and sharper details. If the focus is incorrect, the engraving can appear blurry or inconsistent.

How to Adjust Focus with a Focus Column:

Set up the Laser Module: Position the focus column on the engraving material (in this case, the wooden cutting board).
Adjust the Laser Head: Move the laser head to the appropriate height using the focus column. The goal is to position the laser module so that it’s at the perfect distance from the cutting board.
Verify Focus: Most laser engravers allow you to test focus by engraving a small spot or pattern to check clarity. Adjust as needed to achieve the sharpest results.

By fine-tuning the focus, you ensure the laser is properly aligned for optimal engraving quality.

Laser Engraving Wooden Cutting Boards 01

Step 2: Turn on the Enclosure, Fan, and Lights

Safety and functionality come first when working with a laser engraver. Turning on the enclosure, fan, and lights will help create a safe and effective working environment.

Why Enclosure and Fan are Necessary:

Enclosure: The laser engraver's enclosure helps contain smoke, fumes, and debris during engraving. It keeps your workspace clean and reduces the risk of fire hazards.
Fan: The fan helps vent smoke and keeps the engraving area free from excessive heat. This ensures better engraving results and improves the longevity of your equipment.
Lights: The lights not only help you see your work but also ensure you have a clear view of the design and laser path during engraving.

Click Control and then Enclosure in the interface of your engraver to activate these components. Make sure the fan is turned on, and the lights are functioning before proceeding to the next step.

Laser Engraving Wooden Cutting Boards 02

Step 3: Choose Your Design and Material Settings

Now it’s time to select your project and material. Laser engravers offer a seamless interface that allows you to load your design and adjust material-specific settings easily.

Select Your Design:

1. Click Projects > USB Disk: This option allows you to access your saved files from a USB disk. You can select your engraving design from here. Most laser engravers support common file types like JPEG, PNG, or SVG for vector graphics.

2. Preview the Design: Once you select the image, preview it on the software to ensure it’s the right size and shape for your cutting board.

Choose the Material:

1. Click Materials: This option enables you to select the material you’re working with (wood, bamboo, or other).

2. Select Engraving Material: From the list, choose the specific type of wood for your cutting board (e.g., Maple, Oak, Birch, etc.). This selection will automatically adjust engraving parameters like power, speed, and contrast.

With the material selected, the engraver can optimize settings for the best engraving results.

Laser Engraving Wooden Cutting Boards 03

Step 4: Adjust Design and Engraving Settings

In this step, we will adjust the image and engraving parameters. This is where the magic happens as we fine-tune the design to ensure the final product looks great.

Adjust the Image Size:

Resizing the Image: Using your laser engraver’s software, resize the design to fit the dimensions of the cutting board. Most engraving software allows you to scale the design directly on the screen.
Aspect Ratio: Ensure the aspect ratio of the image is maintained to prevent distortion. You want your design to be proportional to the size of the cutting board.

Positioning the Design:

1. Drag the Image to Position: Use the drag-and-drop feature in your software to place the image exactly where you want the engraving to begin on the cutting board.

2. Frame the Engraving Position: Click on the Frame button to outline the engraving area with the laser. This allows you to visually check if the design is properly aligned and if it fits within the desired space.

3. Set Exact Engraving Position: Fine-tune the position by adjusting the image within the frame. It’s essential that the design is centered and positioned accurately to avoid any misalignment during engraving.

4. Frame Again: After making adjustments, click on Frame once more to confirm the final position. This will ensure the laser head starts the engraving exactly where you intend.

Laser Engraving Wooden Cutting Boards 04

Step 5: Start the Engraving Process

Now that you’ve made all the necessary adjustments, you’re ready to start engraving your wooden cutting board.

Start Engraving:

Click Start: Once you’re satisfied with the position and settings, press Start to initiate the engraving process. Your laser engraver will begin engraving the design onto the wood.
Monitor the Process: Keep an eye on the engraving as it progresses to ensure everything is going as planned. If you see any issues (e.g., the engraving is too light or too deep), you can pause the process and make adjustments to the settings.

Close the Dust Box Door:

Before you begin engraving, make sure the dust box door is securely closed. This ensures that all debris and smoke are contained within the machine and filtered out by the fan.

Laser Engraving Wooden Cutting Boards 05

Conclusion: Perfecting Laser Engraving on Wooden Cutting Boards

Laser engraving on wooden cutting boards offers endless creative possibilities. Whether you're designing personalized gifts, custom home decor, or unique kitchen tools, a laser engraver provides the precision and versatility you need to bring your vision to life.

By following the five steps—adjusting focus, setting up the enclosure, selecting your design and material, adjusting parameters, and starting the engraving process—you can create stunning wooden cutting boards with ease.

With practice and an understanding of your laser engraver’s settings, you’ll be able to experiment with more advanced designs, materials, and effects, further enhancing your engraving capabilities. Happy engraving!
