Download Project Files

Laser Engrave Aluminum
Jewelry Box

Materials Needed

Aluminum Jewelry Box

AlgoOS Laser System →

Machine Used

AlgoLaser Pixi Laser Engraver

Laser Engraving

Line 1/Speed 1

1500

Power

100%

Quality

High

Pass

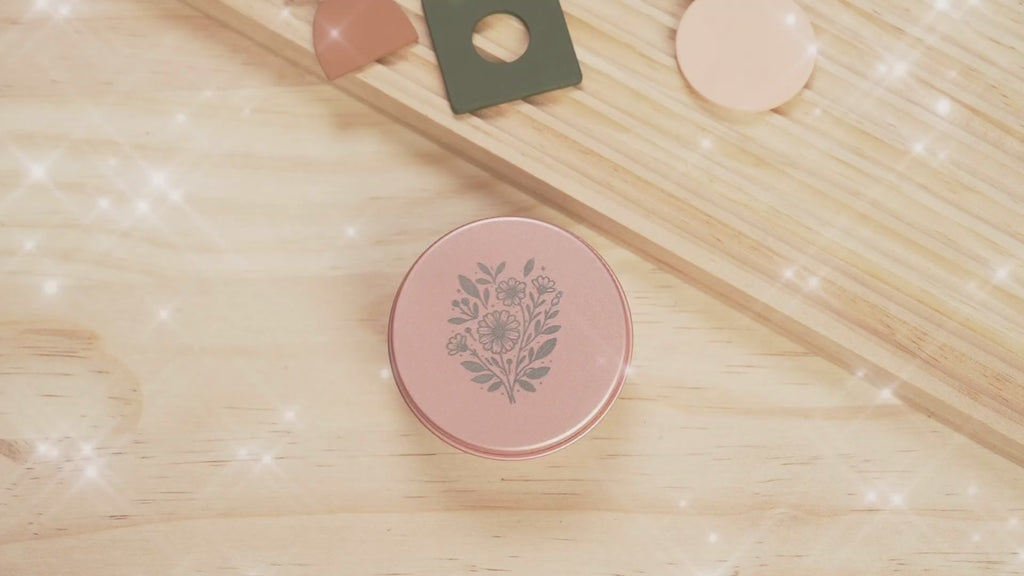

Laser Engraving an Aluminum Jewelry Box: A Step-by-Step Guide

Personalized jewelry boxes are a timeless keepsake, and with a laser engraver, you can create a beautifully engraved aluminum jewelry box with intricate designs and text. Whether you’re crafting a unique gift or adding a special touch to your collection, laser engraving ensures a precise and permanent finish.

We’ll walk you through the five essential steps to engraving an aluminum jewelry box using the AlgoLaser Laser Engraver. By following these instructions, you’ll achieve professional-quality results with ease.

Step 1: Adjusting the Laser Module Height

Before engraving, the laser module must be at the correct height for optimal precision. Follow these steps:

1. Unscrew the four fixing screws on the back of the machine.

2. Press against the back with both hands and push upwards until the laser module reaches the appropriate height.

3. Once positioned correctly, tighten the four screws again to secure the module.

4. Open the machine’s protective cover to access the engraving area.

Step 2: Positioning the Aluminum Jewelry Box

Now that the machine is set up, it’s time to place your jewelry box inside:

1. Carefully put the aluminum box into the engraving area.

2. Lift the top cover of the laser module.

3. Use the focusing column and adjust the Z-axis screw to ensure the laser module reaches the correct height for engraving.

4. Once the height is adjusted, put the top cover back on and close the protective cover.

This setup ensures the laser focuses properly on the aluminum surface, guaranteeing a clean and precise engraving.

Step 3: Powering On and Preparing the Engraver

1. Insert the power cord into the engraver and turn on the machine.

2. When the screen lights up, enter the screen lock password to access the main menu.

3. Click on "Projects" and then select "SD Card" to load your design.

By using the AlgoOS system integrated into the laser engraver, you can directly engrave images without additional software, making the process more convenient and efficient.

Step 4: Setting Up the Engraving Parameters

To ensure a high-quality engraving, follow these settings:

1. Select the picture or design to be engraved.

2. Set the engraving material to aluminum jewelry box and configure the parameters:

· Fill-Speed: 1500mm/min

· Power: 100%

· Quality: High

· Pass: 1

3. Set the picture size according to the jewelry box dimensions.

4. Drag the picture to the correct engraving position.

This step is crucial as it determines the clarity and depth of your design on the aluminum surface.

Step 5: Running a Test and Engraving the Jewelry Box

Before starting the engraving process, always run a border check:

1. Run the border to verify the engraving position and make any necessary adjustments.

2. Once satisfied with the placement, start engraving by pressing the start button.

3. The laser engraver will now etch your design onto the aluminum jewelry box with high precision.

4. After the process is complete, inspect the engraving for accuracy and detail.

Congratulations! You’ve successfully engraved your aluminum jewelry box.

Frequently Asked Questions

1. Can I engrave images and text together?
Yes! The AlgoOS system allows you to combine images and text for custom engravings without additional software.

2. Does the engraving fade over time?
No. Laser engraving on aluminum is permanent and highly durable.

3. Do I need additional software?
No. The AlgoOS system lets you engrave directly without needing LightBurn or other software.

4. Can I engrave colored aluminum?
Yes! The laser engraver can etch through anodized or painted aluminum surfaces.

5. How do I clean the engraved surface?
Use a microfiber cloth to remove any residue and maintain the shine of the aluminum.

6. What should I do if the engraving isn’t deep enough?
Adjust the power settings or make multiple passes to achieve the desired depth.

Conclusion

Engraving an aluminum jewelry box with a laser engraver is a simple yet rewarding process. By following these five steps, you can achieve stunning, customized designs with precision. Whether you’re engraving a sentimental gift or personalizing your own keepsakes, the AlgoLaser Pixi Laser Engraver delivers exceptional results every time.

So, get creative and start engraving today!

Engraving & Cutting Operation Guide Steps

1. Adjusting the Laser Module Height

2. Positioning the Aluminum Jewelry Box

3. Powering On and Preparing the Engraver

4. Setting Up the Engraving Parameters

5. Running a Test and Engraving the Jewelry Box

6. Frequently Asked Questions

7. Conclusion
