3 mm Plywood
Line-Speed
250mm/min
Power
100%
Pass
1
How to Laser Cut a Wooden Fishing Toy for Kids
Laser cutting offers a clean and efficient way to create intricate designs on wood, and a wooden toolbox is the perfect project to showcase the power of your laser engraver. Whether you’re a hobbyist looking to build a custom toolbox or someone who enjoys woodworking, this guide will walk you through the essential steps for laser cutting a wooden toolbox using the AlgoLaser Alpha MK2 20W laser engraver.
We’ll cover everything you need to know to create a stunning wooden toolbox using a laser engraver. From preparing the materials to assembling the cut pieces, follow these simple steps for a successful project.
Materials Needed for Your Toolbox Project
Before jumping into the steps, here’s a list of materials and tools you’ll need for this laser cutting project:
· 3mm Plywood: This will be the primary material for your toolbox.
· AlgoLaser Alpha MK2 20W Laser Engraver: The powerful machine for laser cutting the pieces.
· USB Flash Drive: To transfer your design files from your computer to the laser engraver.
· Laser Cutter Software: LightBurn or another compatible software for designing and controlling the laser cutter.
With all the materials in place, let's dive into the five key steps to laser cut your wooden toolbox.
The first step in any laser cutting project is preparing the materials. For a toolbox, we’re using 3mm plywood due to its durability and ease of cutting. Here’s how to get started:
1. Place the Plywood in the Engraving Area: Begin by placing your plywood sheet on the laser engraver's bed. Make sure it lies flat and is securely positioned to avoid any shifting during the cutting process. Double-check that your material fits within the engraving area of the laser.

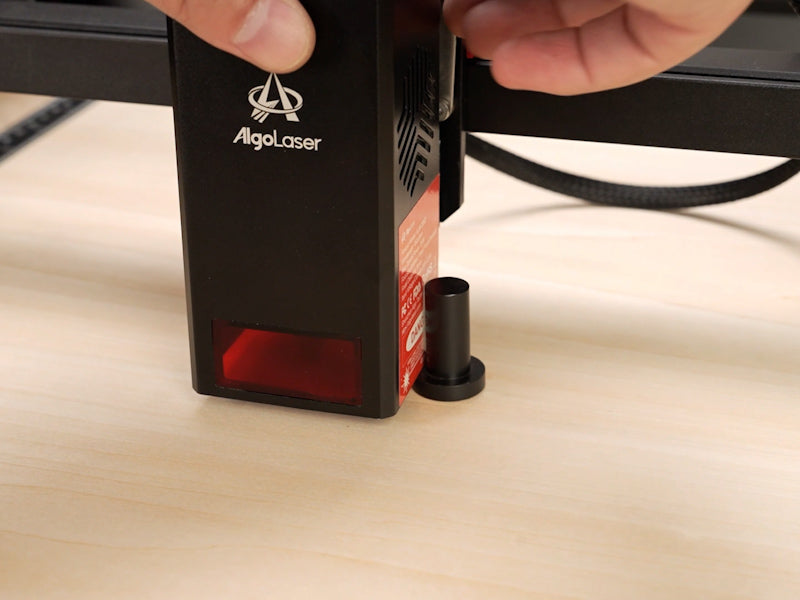

2. Use the Focal Gauge to Adjust the Focal Length: The next important step is adjusting the focal length of the laser. The focal length determines the precision of the laser beam when cutting. To set it correctly, place the focal gauge between the laser module and the plywood. Adjust the height of the laser until it touches the gauge, ensuring the focus is optimal for clean cuts.
Once your material is set and the laser is properly focused, it's time to import your design file and set the cutting parameters. This part of the process ensures that the laser cutter knows exactly how to execute your design.
1. Insert the USB Flash Drive into Your Computer: Start by inserting a USB flash drive into your computer. This drive will be used to transfer the design file from your computer to the laser cutter.
2. Import the Drawing into the USB Flash Drive: Using design software such as LightBurn, import the file of your toolbox design. You can create your own design or download one from online design repositories. Save the file to the USB flash drive.
3. Remove the USB Flash Drive and Insert It into the Laser Engraver: After transferring the file, remove the USB drive from your computer and insert it into the AlgoLaser Alpha MK2 machine. This step transfers the design directly to the laser engraver.
Now that your file is loaded into the laser engraver, it's time to set the material specifications and cutting parameters.
1. Click on “Projects-USB Disk”: On the touch screen of the laser engraver, navigate to the “Projects” menu and select the “USB Disk” option to open your drawing.

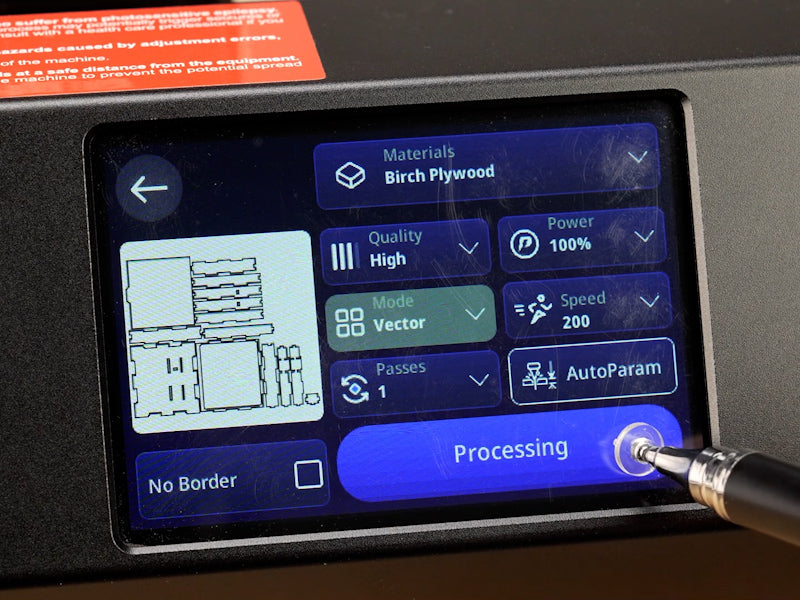

2. Select the Engraving Material and Set the Thickness: The material you are using for the project (in this case, 3mm plywood) needs to be selected in the software. Set the material thickness in the engraving machine settings to ensure the laser will cut through the wood effectively.
3. Set “Quality” to “High”: For clean, precise cuts, set the quality to “High.” This ensures that the laser’s beam will operate at its optimal resolution, leading to sharp, smooth edges on your toolbox.
Once the setup is complete, it’s time to initiate the cutting process. This is the moment where your design comes to life!

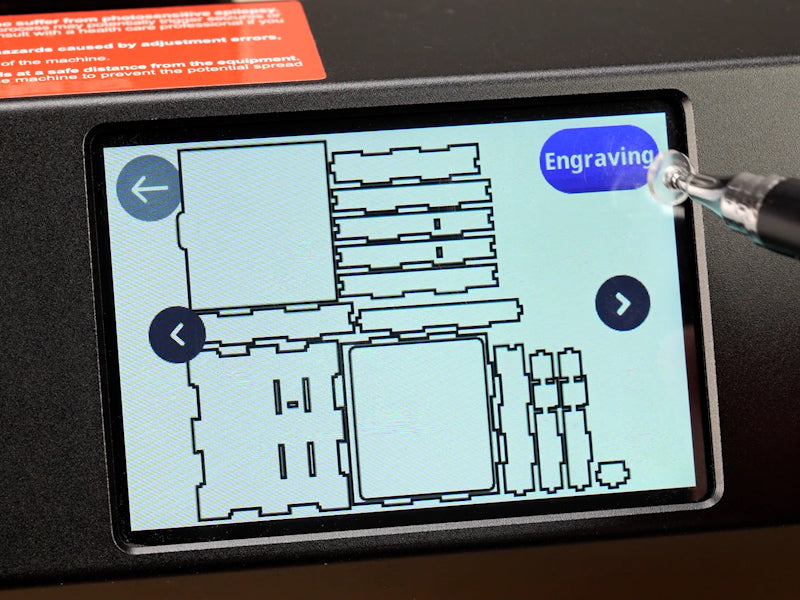

1. Drag the Image to the Engraving Area: Using your software, drag the design of the toolbox into the engraving area. Position it properly to ensure that it fits within the laser's cutting bed and the plywood sheet.
2. Set Cutting Parameters: Based on the 3mm plywood material, input the following parameters into the laser engraver:
· Line Speed: 250mm/min
· Power: 100%
· Passes: 1
These settings are optimized for cutting 3mm plywood cleanly in a single pass.

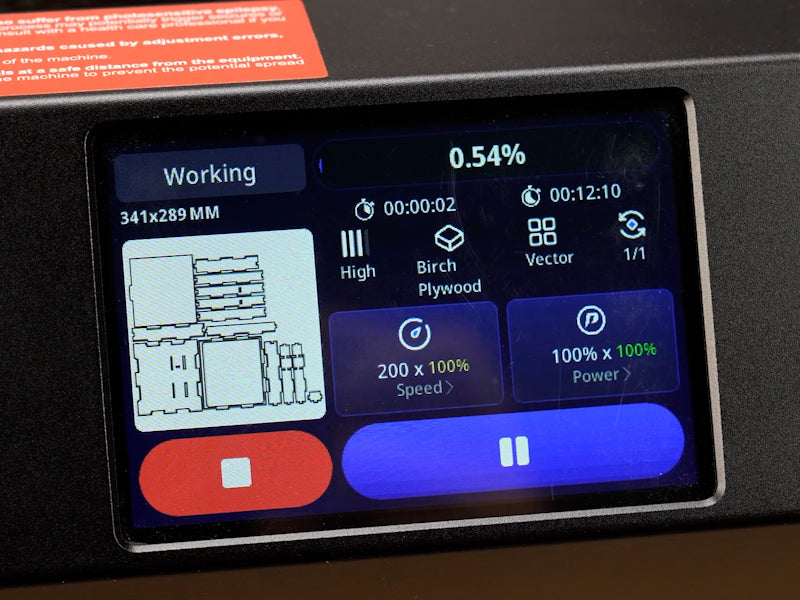

3. Click to Start Engraving: Once everything is set, press the "Start" button to begin the cutting process. The laser will begin tracing the design, cutting out each piece of the toolbox according to the file you imported.
After the laser cutting process is complete, the pieces of your toolbox will be ready for assembly. Carefully remove the cut pieces from the engraving area, taking care not to disturb any fine details. Here’s how to finish your toolbox:
1. Remove the Cut Wooden Boards from the Machine: Carefully lift each piece from the engraving bed, ensuring that the cuts are smooth and precise.

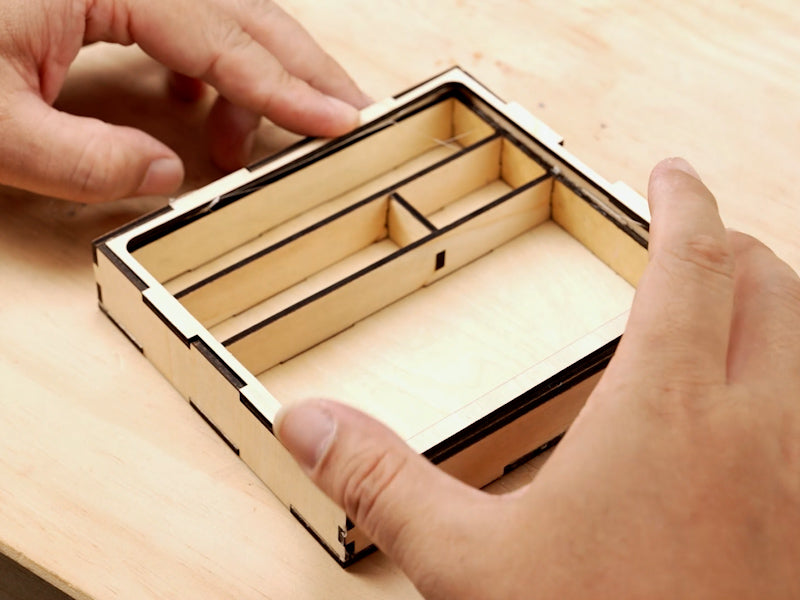

2. Assemble the Toolbox: Using glue, nails, or screws (depending on your design), assemble the pieces of the toolbox. Make sure everything fits together neatly and securely. You can also sand the edges if necessary for a smoother finish.
Here are some frequently asked questions to help you along the way:
1. Can I use other materials for the toolbox instead of plywood?
Yes, you can use materials such as MDF, acrylic, or hardwood. However, you may need to adjust the cutting parameters based on the material's thickness and density.
2. How can I make the cuts sharper and cleaner?
Ensure that the focal length is correctly set and use the highest quality settings in your software. Also, consider making multiple passes if your material is thicker than 3mm.
3. What if the toolbox pieces don’t fit together properly after cutting?
Double-check your design dimensions and material thickness. Make sure you’ve calibrated the laser engraver to the correct settings for your material.
4. Can I customize the toolbox design with engraving?

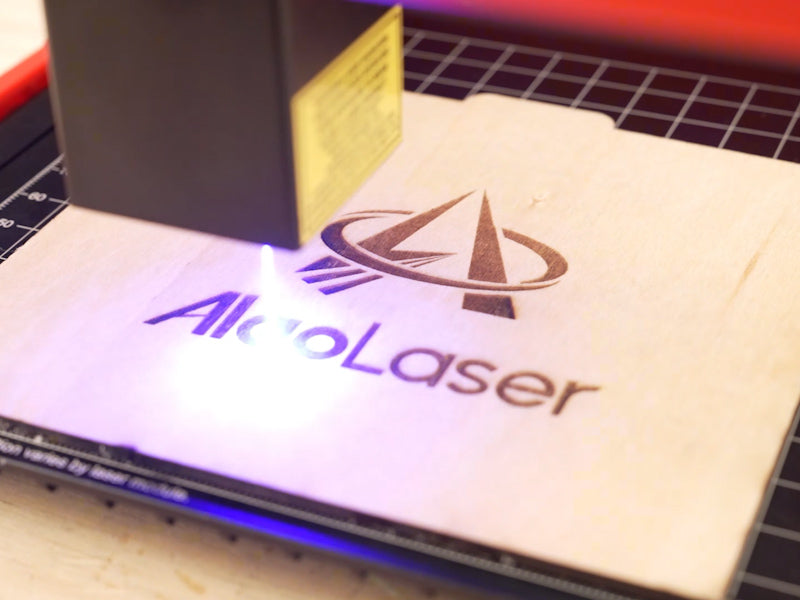

Yes! You can add engravings, logos, or intricate designs to the surface of your toolbox. Just adjust the engraving parameters and layer settings accordingly.
5. How long does it take to cut the toolbox?
The cutting time depends on the complexity of your design and the size of the toolbox. For a simple design, it could take anywhere from 30 minutes to an hour.
6. What if I encounter problems during the cutting process?
If you experience issues, check the alignment of the material, re-check the design file for errors, and ensure that the laser settings are properly configured for your material.

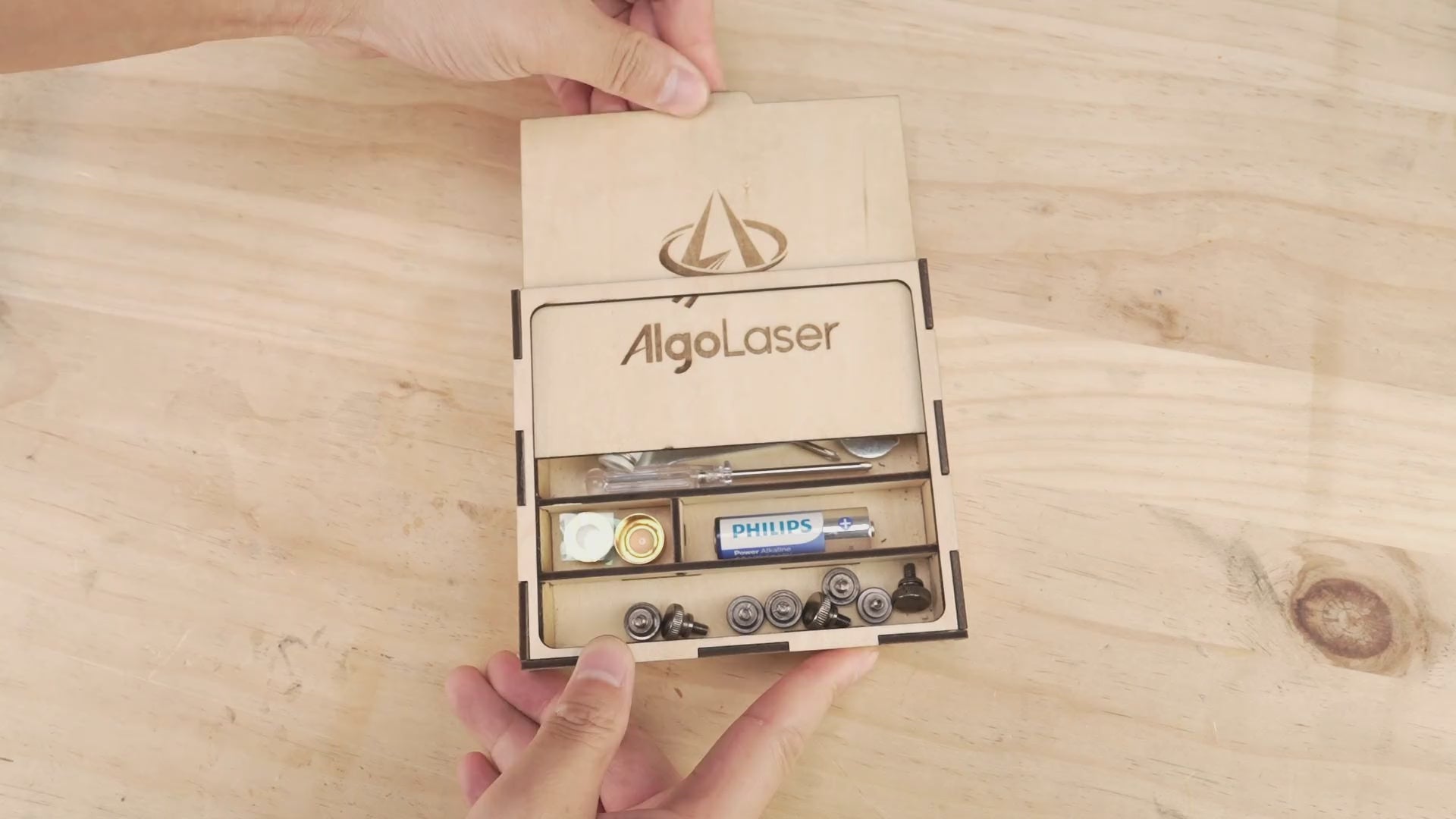

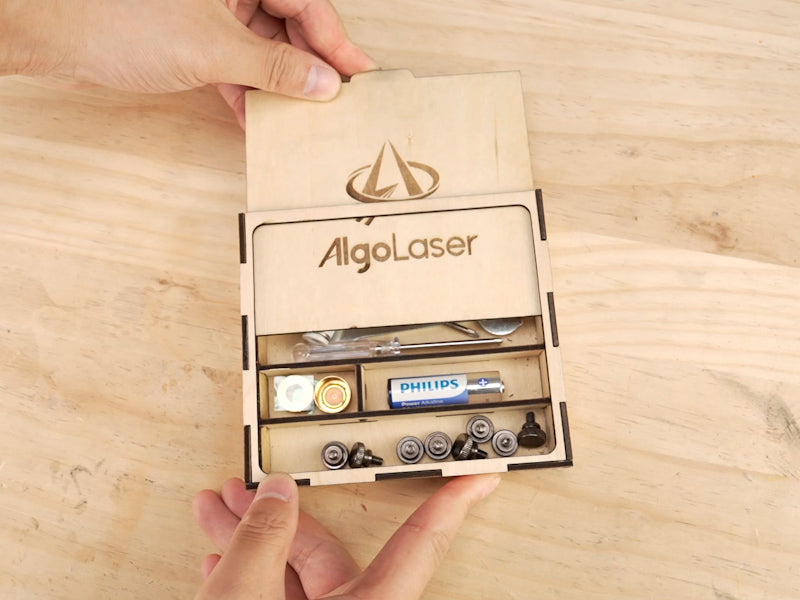

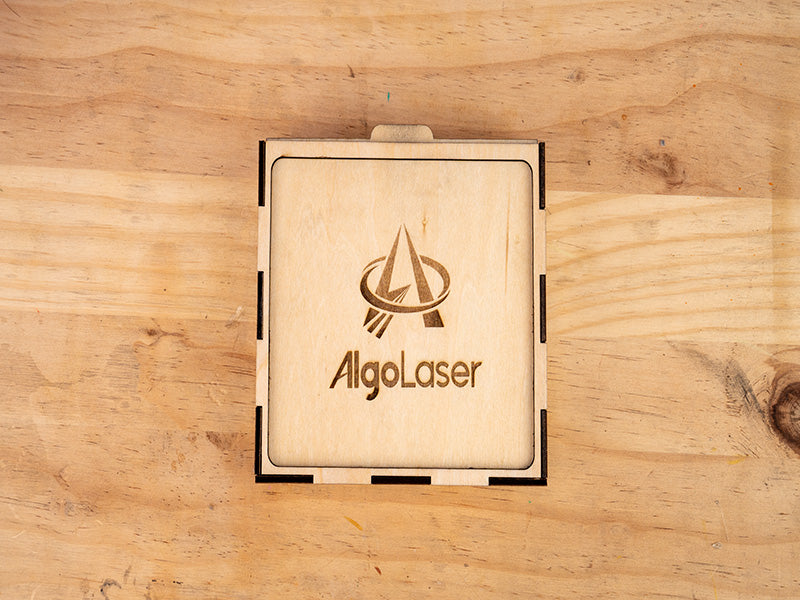

Laser cutting a wooden toolbox with the AlgoLaser Alpha MK2 20W Laser Engraver is a rewarding and efficient project for anyone looking to explore the possibilities of laser technology. By following these five simple steps, you can create a custom toolbox that combines both functionality and craftsmanship.
From setting up the material to assembling the cut pieces, laser cutting opens up a world of creative opportunities. Whether you're building a toolbox for yourself or as a gift, the precision and speed of the laser engraver will ensure that every cut is perfect.
Happy cutting!
